Optimal Location and Sizing of Conglomerate DG- FACTS using an Artificial Neural Network and Heuristic Probability Distribution Methodology for Modern Power System Operations

Abstract

In existing power system networks, the positioning and sizing of multi-DG is critical at the optimum locations for effective energy management. Initially optimal power flow is assessed using the NR method (without DG) in which performance parameters such as real power loss, accuracy, selectivity and MSE are obtained, but in an undesirable manner. To meet load demand; multi-DGs are placed and their optimal locations are assessed by the proposed heuristic probability distribution methodology and an ANN because existing techniques provides poor performance parameters for selecting the location and sizing of DGs. The optimal positions of multi-DGs are estimated in terms of performance parameters including real power loss of transmission network, accuracy, selectivity and MSE, while the performance parameters obtained with the ANN are better than the heuristic pdf. Then, the sizing of multi-DGs is evaluated in relation to active and reactive power. It is found that that sizes of multi-DGs are smaller with ANN than with heuristic pdf. It is preferable to connect the buses having lowest real power losses with the smallest multi-DGs. The performance analysis is tested in the standard IEEE 9- bus and IEEE 57- bus systems on Simulink. To improve the distortion level in real and reactive power, multi-FACTS namely TCSC, TSC and STATCOM are used. The switching of TCSC and TSC is done by SPWM while STATCOM switching is controlled with ANFIS. The locations of multi-FACTS devices are chosen for buses having larger distortion and the sizing of multi-FACTS devices is also optimally decided. The application of multi-FACTS devices helps to improve power quality and fulfill load demand with minimal size in order to make the system economical.

Introduction

Optimal deployment and sizing of different distributed generators (DGs) in power system networks have to derive the full possible benefits, given the context of natural, economic and technological aspects which remains a challenging task for both infrastructure and consumers. DG penetration involves a major change for conventional electricity schemes [1]; it affects voltage stability [2] as well as energy losses [3, 4] while adjusting power flow in the extant power system infrastructure. The degree to which DGs minimize failure of power systems operation and boost voltage profile are dependent on their sizing and position [5]. Optimisation methods can be used in the deregulated power industry to make the best DG allocation [6]. In [7, 8]; the optimal positions of DG are calculated in the delivery network. The optimum size of a small integrated power plant incorporating green and/or traditional energy technology is calculated in [9] to reduce the cost of electricity for the network, while in [10,11,12], the studies merged placement and scale of the DG into one optimization problem. The key factors involved in the optimisation challenge consists of investing price, running costs, network topology, expense of real and reactive energy, heat and energy requirements and profile of voltage inclusive of network losses. Implementation of smart intelligent computational optimisation approaches can find the optimal solution for such issues. The optimal placement and scale with a single DG unit is calculated in [13,14,15], while several studies are reported where the optimum positions and sizes of several DG units are estimated by soft computational techniques such as GA,PSO etc. [16,17,18]. Realizing the full potential of transmitting power lines when there are crowded networks, requires costly and time consuming efforts.These are such as building new lines or installing FACTS systems which provide alternative solutions as they increase the performance of existing networks by re-dispatching line flow patterns in a way that does not reach the thermal limitations. Thus they meet the contractual specifications between grids [19].The advantages of such systems within transmission network are highly dependent upon their configuration, scale, number and position [20]. For allocation, there are two options; (a) Singular FACTS system allocation (b) Numerous FACTS system allocation. In the first category; a single system form will be positioned at a number of optimal selected locations. The FACTS selection method then continues to determine the best locations including values for the system chosen like TCSC [21], STATCOM [22], UPFC [23] and SVC [24]. Implementing a combination of different forms of FACTS systems allows the advantages to be considered for every single type. In the corresponding research; two or three forms of FACTS systems like TCSC, SVC, and TCVR etc. are incorporated in synchrony to obtain the benefits using a soft computational method such as a GA or bacterial swarm algorithm [25, 26].

The credibility of the proposed method is compared with existing methods on different power system networks. The optimal positioning of multi-DG with existing techniques are the methods like network reconfiguration [3], law adjustment factor [8], tabu search [9], mesh connected system [15], frequency domain analysis [35], pattern recognition approval [36], decision tree regression [37] & many more as shown in [4, 5, 7, 10,11,12,13,14, 17, 18, 20, 21, 24,25,26,27,28,29,30,31,32,33]. The estimated THD value is in the range 15–18%, the estimated accuracy and selectivity are in the range 11–17%, and the estimated MSE is in the range 13–19%. The methods used in [35,36,37] will be taken as an example in Sect. 3 for performance comparison with the proposed technique.

In [43], a deterministic method is used to find the optimal sizing and location of DGs in two different locations considering both cost and complexity. Similarly [44] addressed levied cost and net present cost in estimating optimal location and sizing. The real power loss estimation is not uptothe mark for selecting the location of DGs [44]. Different techniques like wind curtailment indexed OPF, voltage profile analysis based on OPF, Fischer–Burmeister algorithm, multi-period ACOPF, sensitivity analysis, multi-period OPF, clustering and sensitivity analysis, analytical approaches based on a 2/3 rule, on differentiation of power losses, with fuzzy logic, based on reliability indices and based on sensitivity factor are presented in [41, 42]. All such techniques deal with a huge amount of data along with complex mathematics for deciding the optimal location and sizing of DGs. Furthermore, these techniques do not provide proper results in terms of THD, MSE and accuracy. Our proposed approach addresses such deficiencies while the reduction and improvised value of all such parameters with simpler mathematics is also a novelty of the proposed scheme. We also note that by doing overall performance comparison with existing techniques, there is a considerable scope for improvement in optimal DG location determining parameters such as real power losses, THD, accuracy, selectivity and MSE for enhanced power system operations.To improve performance, probability heuristic pdf and ANN are proposed for determining the sizing and location of DGs with improved THD, accuracy, selectivity and MSE. Initially, the mathematical heuristic probability distribution method is designed for determining the optimal location and sizing of multiple DGs ( two in this study) on standard IEEE 9-bus and IEEE test 57- bus system. The performance parameters for deciding the optimal location are the real power losses, accuracy, selectivity, THD and MSE. A similar kind of performance analysis for optimal multi-DG location is analysed with ANN using a feed forward method based back propagation delay for both standard systems.

Once the positions of multi-DGs are decided, DG sizing in terms of real and reactive power is assessed for the distribution network. It is found that the ANN gives better results over heuristic pdf in both IEEE standard system for deciding the optimal location of multi-DGs, lower real power losses, improved accuracy and selectivity, lower THD and lower optimal real & reactive power of multi-DGs. Placing & sizing of multi FACTS are then decided in the transmission network. The criteria for placing the multi-FACTS devices are decided on the basis of buses having higher THD so that power quality can be improved. Three types of multi-FACTS devices are used: TCSC, TSC and STATCOM. The minimization of THD is achieved by switching the TCSC and TSC using SPWM while switching of STATCOM devices is done through ANFIS. After placing the multi-FACTS at appropriate positions, then their sizing is estimated in terms of real and reactive power by considering its respective switching method. This paper is organized as follows.: Sect. 2 consists of problem statement, while Sect. 3 describes the structure of the standard IEEE 9 and IEEE 57- bus systems, Sect. 4 discussed the optimal location and sizing of multi-DGs, while the optimal location and sizing of multi-FACTS devices are discussed in Sect. 5, Sect. 6 presents the results and Sect. 7 draws the conclusion.

Problem statement

In order to meet load demand, DGs are placed at various locations in the IEEE 9-bus & 57-bus systems to determine the optimal locations. A heuristic approach and ANN methodology are proposed to find the real power losses of the system. Multi-DGs are connected at those buses such that the real power losses are minimized and their sizing is evaluated by the proposed two approaches. The expressive function to find the optimal position and sizing of multi-DGs is:

$$J = f(S_{loss,} accuracy,THD,selectivity,MSE,S_{i} )$$
(1)

where J is the complex power for loss minimization and Si is the complex power at a particular bus. The detailed information on these terms will be discussed in Sect. 3.

  • The placing of multi-FACTS is being decided by THD values. Buses having higher THD values will be preferred for placing the different devices. Three FACTS devices are placed i.e. TCSC, TCR, STATCOM and then their optimal sizing is resolved by ANFIS.

Structure of IEEE standard bus systems

The optimal location of multi-DGs are realized on IEEE 9—bus and 57-bus systems whose structures are shown in this section.

Structure of standard IEEE tested 9 bus system

The effectiveness of the proposed scheme using a conventional approach is tested intially on the standard IEEE test 9- bus system [35,36,37]. It consists of 9 lines, 9 buses, 3 generators and 3 loads at bus no. 5, 7 and 9 as shown in Fig. 1. The internal line parameters of the system are given in Table 1.

Fig. 1
figure 1

Structure of IEEE 9 bus system [35]

Table 1 Line parameter of standard IEEE test 9 bus system

Optimal power flow analysis is performed on the IEEE 9- bus system using the Newton Raphson (NR) method which is a traditional method for load flow analysis [34].The performance parameters such as real power loss, accuracy, THD, MSE and selectivity obtained using the NR method are shown in Table 2 for a system without DG. It has high real power loss & poor accuracy, poor selectivity, high MSE due to load requirement not being fulfilled effectively.

Table 2 Performance parameter analysis of standard IEEE-9 bus system without DG using NR method

The proposed heuristic pdf is applied to the IEEE 9- bus system to improve the performance parameters which are shown in Table 3. It can be seen that performance parameters obtained with heuristic pdf are better than those with the NR method and show lower real power loss,improved accuracy and selectivity, improved THD and MSE. Similar results are also obtained in the IEEE 57-bus sytsem for heuristic pdf over NR The design aspect of obtaining the performance parameters using heuristic pdf is discussed in Sect. 4. The comparative results as dicussed further are sufficient to show the superiority of the proposed heuristic pdf method over the others.

Table 3 Performance parameter analysis of standard IEEE-9 bus system using heuristic pdf method

Structure of IEEE 57 bus system

The layout of the modified IEEE 57- bus system is shown in Fig. 2 and contains 25 control variables including 7 generators at the buses 1,2,3,6,8,9 and 12; 15 tap changing transformers and 3 shunt VAR compensators installed at buses 18, 25 and 53 and 80 transmission lines. The total demand of the system with respect to [38,39,40] are Pload = 1250 MW and Qload = 336.4MVAR. The initial total generations and power losses are PPG = 1279.26 MW, QG = 345.45MVAR, PLOSS = 28.462 MW and QLOSS =  − 124.27MVAR. The real power estimation for the IEEE 57- bus system is shown in Table 4 and the performance analysis is shown in Table 5.

Fig. 2
figure 2

Structure of IEEE 57 bus system [40]

Table 4 Real power estimation of standard IEEE-57 bus system using heuristic pdf method
Table 5 Performance parameter analysis of standard IEEE-57 bus system using heuristic pdf method

After considering the internal parameters of the IEEE 57- bus system [40], a multi-objective function has to be decided which is a function of real power loss, accuracy, sensitivity, THD and MSE for deciding the location and sizing of multi-DGs under heuristic probability distribution method. The design aspects and performance parameter are discussed in Sect. 4.1.1. By considering these aspects, the real power loss estimation is shown in Table 4 and performance parametric analysis is. carried out as shown in Table 5. It can be seen  from Table 6 that the  heuristic pdf methodology for IEEE-9 bus system  gives better results than the existing methods such as the frequency domain [35], pattern recognisition approaches [36] and decision tree regression approaches [37]. A few samples of the IEEE 57- bus system have been taken for the performance parameter comparison with existing techniques [38,39,40] as shown in Table 7. It can be seen that the proposed heuristic pdf technique gives better results than existing ones.

Table 6 Performance parameter comparison for standard IEEE 9 bus system for heuristic pdf method and existing methods [35,36,37]
Table 7 Samples for the performance parameter comparison for standard IEEE 57 bus system for heuristic pdf method and existing methods [38,39,40]

Optimal location and sizing of multi-DG

After deciding the structure and internal parameters of the modified IEEE 9—bus system, optimal location and sizing of multi-DGs are decided considering that different DG’s have to be connected to meet the load demand.

In this section, strategies for optimal location and sizing (2 DGs in this paper) will be discussed.

Optimal location of multi-DG

Initially, the main target is to place multi- DGs at particular buses to fulfil the load demand. Since load demand is fixed for all buses, selection of buses for DG placing are assessed in terms of minimum real power loss, improved accuracy and selectivity,lower THD and MSE. The selection of DG’s location is analysed by heuristic pdf and ANN.

Heuristic probability distribution method (pdf)

The location of DGs decided by the heuristic probability distribution method given as:

$$J = \min \left( {\sum\limits_{i = 1}^{33} {X_{i} |S_{i} - } S_{ref} |^{2} + pdf(\lambda )\left( {\sum\limits_{i = 1}^{33} {S_{loss} } } \right)} \right)$$
(2)
$$S_{loss} = \sum\limits_{i = 1}^{33} {S_{i} - } S_{load}$$
(3)

Substituting Eq. (3) into Eq. (2)

$$J = \min \left( {\sum\limits_{i = 1}^{33} {X_{i} |S_{i} - } S_{ref} |^{2} + pdf(\lambda )\left( {\sum\limits_{i = 1}^{33} {S_{i} - } S_{load} } \right)} \right)$$
(4)

The measured and reference values of complex power are:

$$S_{i} = P_{i} + jQ_{i}$$
(5)
$$S_{ref} = P_{ref} + jQ_{ref}$$
(6)

In Eq. (5), the undefined empirical formulas are:

$$X_{i} = \frac{{S_{rated} }}{{|C_{1} S_{i} + C_{2} S_{ref} |^{2} }}$$
(7)
$$pdf(\lambda ) = \frac{{e^{{ - \frac{{\lambda^{2} }}{{2\sigma^{2} }}}} }}{{\sigma \sqrt {2\pi } }}$$
(8)

where \(\lambda = S_{i} - S_{ref}\)

$$pdf(S_{i} - S_{ref} ) = \frac{{e^{{ - \frac{{|S_{i} - S_{ref} |^{2} }}{{2\sigma^{2} }}}} }}{{\sigma \sqrt {2\pi } }}$$
(9)

Substituting Eqs. (7), (8), (9) into Eq. (4)

$$J = \min \left( {\sum\limits_{i = 1}^{33} {\frac{{S_{rated} |S_{i} - S_{ref} |^{2} }}{{|C_{1} S_{i} + C_{2} S_{ref} |^{2} }}} + \frac{{e^{{ - \frac{{|S_{i} - S_{ref} |^{2} }}{{2\sigma^{2} }}}} }}{{\sigma \sqrt {2\pi } }}\left( {\sum\limits_{i = 1}^{33} {S_{i} - } S_{load} } \right)} \right)$$
(10)

where \(C_{1}\) is the accuracy of real power measurement given as \(\frac{{\Delta P_{i} }}{{P_{i} }}\) which is usually in range of 0.02–0.04.

whereas \(C_{2}\) is the accuracy of reactive power measurement given as \(\frac{{\Delta Q_{i} }}{{Q_{i} }}\) which is usually in range of 0.03–0.05.

Power flow errors at bus ‘i’ are given as:

$$\Delta P = P_{i} - P_{ref}$$
(11)
$$\Delta Q = Q_{i} - Q_{ref}$$
(12)

where \(P_{i}\) and \(Q_{i}\) are the respective real and reactive power flow between 2 buses given as:

$$P_{i} = P_{ij} = \sum\limits_{i = 1}^{33} {\sum\limits_{j = 1}^{33} {V_{i} V_{j} (G_{ij} \cos (\delta_{i} + \theta_{i} - \theta_{j} ) + B_{ij} \sin (\delta_{i} + \theta_{i} - \theta_{j} ))} }$$
(13)
$$Q_{i} = Q_{ij} = \sum\limits_{i = 1}^{33} {\sum\limits_{j = 1}^{33} {V_{i} V_{j} (G_{ij} \cos (\delta_{i} + \theta_{i} - \theta_{j} ) - B_{ij} \sin (\delta_{i} + \theta_{i} - \theta_{j} ))} }$$
(14)

where conductance (Gij) and susceptance (Bij) are given as:

$$G_{ij} = \frac{{R_{ij} }}{{\sqrt {R_{ij}^{2} + X_{ij}^{2} } }},B_{ij} = \frac{{X_{ij} }}{{\sqrt {R_{ij}^{2} + X_{ij}^{2} } }}$$
(15)

The accuracy, selectivity, MSE and THD are defined as:

$${\text{Accuracy}} = S_{i} - S_{ref}\, {\text{in p.u.}}$$
(16)
$${\text{selectivity}} = \frac{\partial (J)}{{\partial (S_{i} )}}\,{\text{in}}\,\%$$
(17)
$$MSE = \frac{{\sum\limits_{i = 1}^{9} {({\text{S}}_{{{i}}} - {\overline{\text{S}}}_{{{i}}} )^{2} } }}{n}\,{\text{in p.u}}$$
(18)
$$\begin{aligned} THD & = \sqrt {\frac{1}{{g^{2} }} - 1} \\ & = \sqrt {\left( {\frac{{S_{i}^{rms} }}{{S_{i}^{rms,fundamental} }}} \right)^{2} - 1} \\ \end{aligned}$$
(19)
Performance parameter evaluation using heuristic pdf

The optimal performance parameter for positioning the multi-DGs is the total real power loss in the transmission lines. The optimal placing of DG is preferred where minimal real power lossof thewhole transmission line network measured from Eq. (10) is achieved while meeting the load requirement. In addition to real power loss other parameters, e.g.accuracy, selectivity, MSE and THD are also measured from Eq. (16), (17), (18) and (19). The lower values of these additional parameters also affect the positioning of multi-DGs as the multi-objective function comprises real power loss, accuracy, selectivity, MSE and THD.The performance of IEEE 9- bus and IEEE 57- bus system are evaluated using the heuristic pdf method. There is significant scope for the improvement of results. This will be analysed using ANN in the next section.

Artificial neural network (ANN)

This section also uses the IEEE 9- bus and IEEE 57- bus systems for placing the DGs. ANN is used to train the weights in the relevant mathematical expressions, where the weights are the controller being continuously trained with the help of feed forward method using back propagation.

The design of the ANN is done by further extending Eq. (10) by taking log on both side as:

$$\begin{aligned} {\text{logJ}} & = log(S_{rated} ) + 2log(S_{i} - S_{ref} ) - 2log(C_{1} S_{i} + C_{2} S_{ref} ) \\ & \quad + \frac{{\left| {S_{i} - S_{ref} } \right|^{2} }}{{2\sigma^{2} }} + \log (S_{i} - S_{ref} ) - log(\sigma \sqrt {2\pi } ) \\ \end{aligned}$$
(20)

Equation (20) can be further arranged as:

$$\begin{aligned} {\text{logJ}} & = log\left( {\frac{{S_{rated} }}{{\sigma \sqrt {2\pi } }}} \right) + 2\log (S_{i} - S_{ref} ) \\ & \quad + \frac{{\left| {S_{i} - S_{ref} } \right|^{2} }}{{2\sigma^{2} }} + 2\log (C_{1} S_{i} + C_{2} S_{ref} ) \\ \end{aligned}$$
(21)

The popular expansion of logarithmic series is given as:

$$\log (S_{i} - S_{ref} ) = (S_{i} - S_{ref} ) - \frac{{\left( {S_{i} - S_{ref} } \right)^{2} }}{2}$$
(22)

Substituting Eq. (22) into Eq. (21) leads to:

$$\begin{aligned} \log J & = \log \left( {\frac{{S_{rated} }}{{\sigma \sqrt {2\pi } }}} \right) + 2(S_{i} - S_{ref} ) \\ ;\quad + (S_{i} - S_{ref} )^{2} \left[ {\frac{1}{{2\sigma^{2} }} - 1} \right] - 2\log (C_{1} S_{i} + C_{2} S_{ref} ) \\ \end{aligned}$$
(23)

Writing Eq. (23) in the form of ANN yields:

$$Y = X_{1} W_{1} + X_{2} W_{2} + X_{3} W_{3} + b$$
(24)

where

$$b = \log \left( {\frac{{S_{rated} }}{{\sigma \sqrt {2\pi } }}} \right)$$
$$X_{1} = 2$$
$$X_{2} = \left( {\frac{1}{{2\sigma^{2} }} - 1} \right)$$
$$X_{3} = - 2$$
$$W_{1} = \left( {S_{i} - S_{ref} } \right),W_{2} = \left( {S_{i} -_{ref} } \right)^{2} ,W_{3} = \log \left( {C_{1} S_{i} + C_{2} S_{ref} } \right),J^{\prime } = Y$$

The structure of ANN is shown in Fig. 3 from Eq. (24). Figure 3 is the open loop structure for determining the optimal location of DGs. In this case; a proper solution is not obtained while the parameters used in this structure are shown in Table 8.

Fig. 3
figure 3

Structure of the used ANN delay

Table 8 Initial value of Weight

The design of ANN is extended using a feed forward method based on back propagation delay for better output as shown in Fig. 4. To elaborate the mathematics of the feed forward mechanism of the ANN using back propagation delay, it is clear from Fig. 4 that the output of ANN is compared with the reference value of output to give an error which is analysed through the feed forward method using back propagation delay.

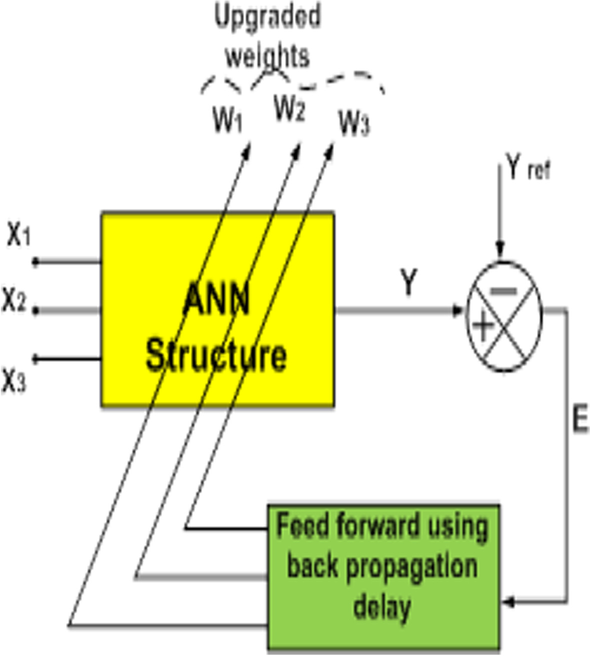

Fig. 4
figure 4

Feed forward mechanism of ANN

The mechanism of estimating the error is done by using steepest descent algorithm given as:

$$\left( {W_{i} } \right)_{new} = \, W_{i(old)} - \, \eta \frac{\partial E}{{\partial W_{i} }}$$
(25)

whereas i = 1,2 and 3 and η = 0.8.

From the steepest descent algorithm, the error is given as:

$$E = \left( {Y - Y_{ref} } \right)^{2}$$
(26)

After using the feed forward method, weights are also upgraded. These further modify the output. The processes of upgrading the weight are shown as:

$$\left( {W_{1} } \right)_{new} = \, W_{1(old)} - \, \eta \frac{\partial E}{{\partial W_{1} }}$$
(27)
$$\left( {W_{2} } \right)_{new} = \, W_{2(old)} - \, \eta \frac{\partial E}{{\partial W_{2} }}$$
(28)
$$\left( {W_{3} } \right)_{new} = \, W_{3(old)} - \, \eta \frac{\partial E}{{\partial W_{3} }}$$
(29)

The rate of changes of error with weights are shown as:

$$\frac{\partial E}{{\partial W_{1} }} = (Y - Y_{ref} )X_{1}$$
(30)
$$\frac{\partial E}{{\partial W_{2} }} = (Y - Y_{ref} )X_{2}$$
(31)
$$\frac{\partial E}{{\partial W_{3} }} = (Y - Y_{ref} )X_{3}$$
(32)

Substituting Eq. (30), (31), (32) into Eq. (27), (28), (29), the followings are obtained

$$\left( {W_{1} } \right)_{new} = \, W_{1(old)} - \, \eta (Y - Y_{ref} )X_{1}$$
(33)
$$\left( {W_{2} } \right)_{new} = \, W_{2(old)} - \, \eta (Y - Y_{ref} )X_{2}$$
(34)
$$\left( {W_{3} } \right)_{new} = \, W_{3(old)} - \, \eta (Y - Y_{ref} )X_{3}$$
(35)

(W)new are the upgraded value of weights which are shown in Table 11 while (W)old are the previous values of the weights.

The process of attaining the performance parameters for the proposed and existing methods is explained in the flowchart in Fig. 5

Fig. 5
figure 5

Flowchart illustrating the process of selection of optimal location and sizing of DGs

Performance parameter evaluation using ANN

After applying ANN for estimating the different parameters of the IEEE 9- bus system, it is seen that real power loss, accuracy, MSE, selectivity and THD have been improved in comparison to the heuristic pdf method. The comparison between ANN and heuristic method is shown in Table 9. The best value of MSE for bus 8 is 9 × 10–10.This is obtained after testing, training and validation of the ANN system at 25 epochs where epoch refers to a kind of iterative value. It can be seen that output is converging faster towards the regression line. Performance parameters of the IEEE 9- bus system with ANN are better than heuristic pdf in terms of lower real power loss, accuracy, THD. Real power loss is a minimum in buses 8 and 9 and consequently the two DG’s are preferably placed at buses 8 and 9 so the load requirement can be met while these buses also have minimum MSE and THD. The comparative performances among ANN, heuristic pdf for the IEEE 9- bus system and NR method (without DG) in terms of multi-objective parameters such as real power loss, THD, accuracy, selectivity are shown in Table 2 and 9 in determining the optimal location of multi-DGs. The performance parameters show better results with placement of multi-DGs under ANN than with heuristic pdf.

Table 9 Performance parameter with IEEE-9 bus system for different location of DG using ANN and heuristic pdf

In a similar way, the best location of placing the multi-DGs in the IEEE 57- bus system can befound using heuristic pdf discussed in Sect. 4.1.1 and ANN in Sect. 4.1.2.

The parametric analysis for estimating the best location of multi-DGs in the IEEE 57—bus system using both methods is shown in Table 10. The upgraded values of the weights are depicted in Table 11. The performance parameters have improved with ANN over the heuristic pdf method. The real power loss has been greatly reduced with ANN which shows its effectiveness over heuristic pdf. Buses 13 and 15 are the best places to locate the two DG’s because this leads to minimum real power loss and other improved parameters in comparison to other buses. This can be seen from Table 8 by considering only a few selected samples of the IEEE 57- bus system because of space considerations though realisation and performance analysis for all the parameters have been assessed at all buses.

Table 10 Performance parameter with IEEE-57 bus system for different location of DG using ANN and heuristic pdf
Table 11 Modified value of Weight

Optimal sizing of multi-DG

The optimal sizing of DGs is the next objective after selecting the optimal locations. The sizes of DG are expressed in terms of real and reactive power while the expression for estimating the real and reactive power is obtained from Eq. (10) under heuristic pdf and Eq. (20) under ANN by minimizing the real power loss in per unit term. The comparative performance in terms of DG size under both techniquesfor the IEEE 9- bus system is shown in Table 12.

Table 12 DG size comparison under ANN and heuristic pdf for IEEE 9 -bus system

It can be concluded from Table 12 that sizes of multiple DG’s are minimum when placed at buses 8 and 9. From the above discussion, it can be concluded that buses 8 and 9 are the best locationsfor the multiple DGs.The concise information for DG sizes at buses 8 and 9 is shown in Table 13.

Table 13 DG size comparison under ANN and heuristic pdf at buses 8 and 9

In the similar way sizing of DG’s is decided for the IEEE 57- bus system using Eq. (10) and (20). The testing for the performance analysis is assessed at all the buses which is shown in Table 14.

Table 14 DG size comparison under ANN and heuristic pdf for IEEE 57- bus system

From Table 14, it can be seen that buses. 13 and 15 have the minimum demands of real and reactive power and thus sizes of the DG’s can be kept minimum at those locations. Thus, buses 13 and 15 are the best sites for placing the DG’s in the IEEE 57-bus system in terms of sizing and location.

We note that a few buses have higher THD which give rise to power quality issues. To improve power quality and minimise the THD, FACTS devices are positioned at transmission locations of the IEEE 9-bus and IEEE 57- bus systems. The location& sizing of multi FACTS devices are discussed in the next section.

Positioning and sizing of multi FACTS device

The positioning and sizing of multi FACTS devices in the IEEE-9 bus and 57-bus system have to be assessed in a transmission network if the power quality performance parameters are to be improved. The three different types of FACTS devices are considered, i.e., TCSC, TSC and STATCOM. The devices can improve the power quality at selected buses having a high THD value. TCSC is a series type FACTS device while TSC and STATCOM are shunt types. Four nearby terminals of buses are required to connect these three FACTS devices. As per the requirements from Table 7, buses 4–5-6 and 7 are selected for the TCSC, TSC and STATCOM for the IEEE 9-bus system. From Table 8, buses 9, 10, 12 and 16 have the worst THD in the IEEE 57-bus system. Thus they are selected for allocation of the devices.

Optimal location and sizing of TCSC

TCSC is a thyristor-controlled series compensator and preferably is connected to the transmission network nearby buses 5 and 6 for the IEEE 9-bus system, as shown in Fig. 6.

Fig. 6
figure 6

Structure of TCSC in IEEE 9 bus system

Similarly, TCSC is preferred to be connected to the transmission networks between bus 9 and 10 for the IEEE 57-bus system. The structure of the TCSC shows the connection of anti-parallel thyristors with an inductor and the complete combination in parallel with a capacitor. The inductor and capacitor combined act as filter to remove the harmonics. The switching of the anti-parallel thyristor is doneusing theSPWM technique as shown in Fig. 7. This switching process predominantly minimises the harmonics. The process of controlling the thyristor is the same for both IEEE systems. The performance comparison of THD and real power flow between buses 5 and 6 is shown in Tables 15 and 16, respectively.

Fig. 7
figure 7

Switching structure of thyristor in TCSC for IEEE 9 bus system

Table 15 THD of real power flow with and without TCSC for IEEE 9- bus system at bus 5 & 6
Table 16 Power flow comparison with and without presence of TCSC between the buses no. 5 and 6 for IEEE 9- bus system

From Fig. 7, the real power (P56) and reactive power (Q56) flow from buses 5 to 6 is measured, andcompared with its reference value in SPWM. Thecompared results of active power passed through the PI controller to generate firing angle (α) while the compared results of reactive power is passed through PI controller to a generate modulation index (m):

$$\alpha = \left(K_{p1} + \frac{{K_{i1} }}{s}\right)(P_{23} - {\text{P}}_{ref} )$$
(36)
$$m = \left(K_{p2} + \frac{{K_{i2} }}{s}\right)(Q_{23} - Q_{ref} )$$
(37)

The PI parameters are decided by trial and error, and are given as Kp1 = 2.9, Ki1 = 9.65, Kp2 = 13.65, Ki2 = 17.21.

The comparative graphical analysis of real power flow between buses 5 and 6 with and without TCSC is shown in Figs. 8 and 9, respectively. It can be seen that the harmonics level/THD in the real power flow has been improved with the TCSC. The detailed analysis of THD improvement is shown in Table 17. With the same mathematical analysis, comparisons of real and reactive power between buses 5 and 6 with and without the TCSC are shown in Table 18. It is seen there that power flow between buses 5 and 6 with TCSC is reducedcompared to the heuristic pdf and ANN (without TCSC).

Fig. 8
figure 8

Real power flow between buses 5 and 6 with SPWM switching of TCSC for IEEE 9 bus system

Fig. 9
figure 9

Real power flow between buses 5 and 6 without TCSC for IEEE 9 bus system

Table 17 THD of real power flow with and without TCSC for IEEE 57- bus system at buses 9 and 10
Table 18 Power flow comparison with and without presence of TCSC between the buses no. 9 and 10 for IEEE 57- bus system

A similar performance analysis is carried out for the IEEE 57-bus system using switching of TCSC based on Eq. (36) and (37). The TCSC is connected between buses 9 and 10.

The power quality improvement (in terms of THD) for the real power between buses 9 and 10 with and without the TCSC is shown in Table 17. THD has been improved with the TCSC between these buses. However, power flow between buses 9 and 10withthe TCSC is lower in comparison than the heuristic pdf and ANN (without TCSC) which is shown in Table 18. The real power flows without and with TCSC are shown in Figs. 10 and 11, respectively.

Fig. 10
figure 10

Real power flow between buses 9 and 10 without TCSC for IEEE 57 bus system

Fig. 11
figure 11

Real power flow between buses 9 and 10 with TCSC for IEEE 57 bus system

The size of the TCSC is also optimally minimized while satisfying its requirement for reducing the harmonics. A smaller size of FACTS device also makes the systemmore economical.

Optimal location and sizing of TSC

The TSC is thyristor switched capacitor which is of a shunt type. TSC is preferably connected to bus 4 of the IEEE 9-bus system because of the high value of the THD at the bus. The TSC contains two anti-parallel thyristors with a capacitor as shown in Fig. 12.

Fig. 12
figure 12

Structure of TSC

The capacitor can act as a filter to remove the harmonics. Further, switching of the anti-parallel thyristor is done using the SPWM technique. It minimises the harmonics as shown in Fig. 13.

Fig. 13
figure 13

Switching structure of thyristor in TSC

From Fig. 13, the real power (P4) and reactive power (Q4) flow towards bus 4 of IEEE 9-bus system is measured, and compared with its reference value in SPWM. The results passed through PI controllersto produce the firing angle (α) and modulation index (m) as:

$$\alpha = \left(K_{p3} + \frac{{K_{i3} }}{s}\right)(P_{4} - {\text{P}}_{ref} )$$
(38)
$$m = \left(K_{p4} + \frac{{K_{i4} }}{s}\right)(Q_{4} - Q_{ref} )$$
(39)

Similarly, the PI parameters are decided by trial and error, and are taken as Kp3 = 5.97, Ki3 = 12.67, Kp4 = 15.71, Ki4 = 18.91.

The comparative graph of real power at bus 4 with and without the TSC is shown in Figs. 14 and 15, respectively.The harmonics level/THD in real power flow has been improved with the involvement of the TSC. The detailed analysis of THD improvement is shown in Table 19.

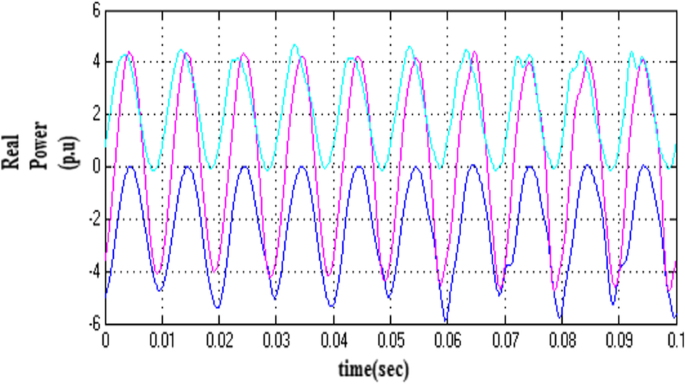

Fig. 14
figure 14

Real power flow at bus 4 of IEEE 9- bus system with SPWM switching of TSC

Fig. 15
figure 15

Real power flow at bus 4 without TSC

Table 19 THD of real power flow with and without TSC for IEEE 9 -bus system at bus 4

It has already beenshown that the THD is lower with ANN then the heuristic pdf without TSC. The useof the TSCfurther helps to reduce the THD level comparedto without TSC.With the same mathematical analysis, comparison of real and reactive power at bus 4 with and without TSC is shown in Table 20. Power flow at bus 4 due to TSC is reducedcompared with the heuristic pdf and ANN (without TSC).

Table 20 Power flow comparison with and without presence of TSC at bus 4 of IEEE 9- bus system

The placing of the TSC in the IEEE 57-bus system has also been assessed and it is preferable to connect it at bus 12. The effect of connecting the TSC therein improving the THD real power flow at the bus is shown in Tables 21 and 22 respectively.

Table 21 THD of real power flow with and without TSC for IEEE 57 -bus system at bus 12
Table 22 Power flow comparison with and without TSC in IEEE 57- bus system at bus 12

Similarly, the TSC size is optimally minimized while satisfying it’s requirement to reduceharmonics.

Optimal location and sizing of STATCOM

The STATCOM is a static compensator which is also a shunt FACTS device. It is preferable to connect it at bus 7 of the IEEE 9- bus system because of high THD. The structure of the STATCOM is shown in Fig. 16.

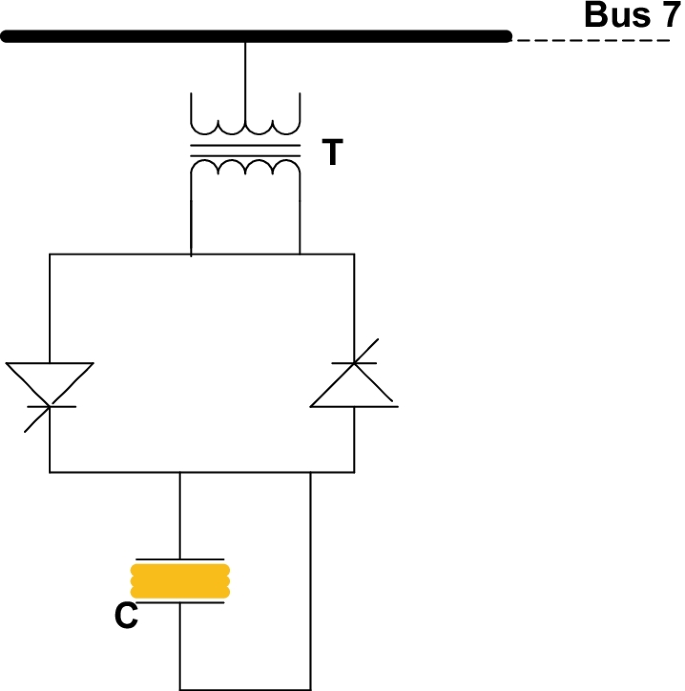

Fig. 16
figure 16

Structure of STATCOM

The structure shows the connection of anti-parallel thyristor with the capacitor. The capacitor sometimes acts as a source to ignite the anti-parallel converters. The process of switching the thyristor is shown in Fig. 17.

Fig. 17
figure 17

Switching structure of STATCOM

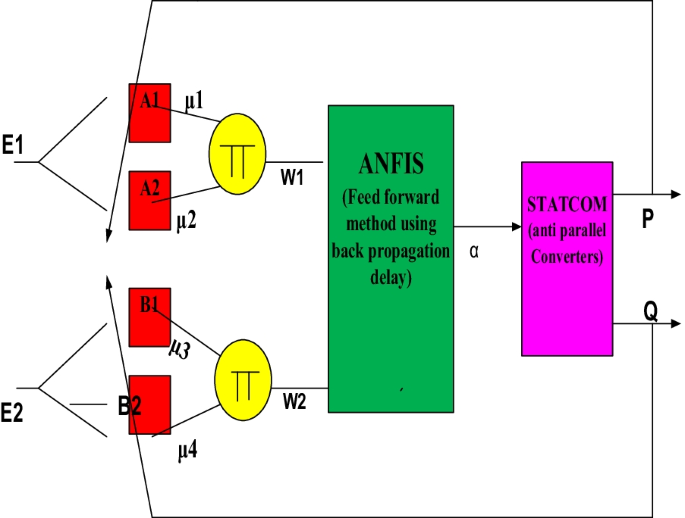

To improve the power quality performance, the STATCOM is controlled using ANFIS in which weights of the system are trained by employing a fuzzy logic controller. In this paper; the STATCOM is connected to the bus with the highest harmonic distortion.

From Fig. 17 the measured real power and reactive power is compared with respective reference values and the errors are passed through PID controllersto generate outputs E1 and E2 as:

$$E_{1} = \left(Kp_{5} + \frac{{Ki_{5} }}{s} + sKi_{5} \right)(P_{6} - P_{ref} )$$
(40)
$$E_{2} = \left(Kp_{6} + \frac{{Ki_{6} }}{s} + sKi_{6} \right)(Q_{6} - Q_{ref} )$$
(41)

The parameters of the PID controller are.

Kp5 = 7.98, Ki5 = 11.99, Kd5 = 6.87, Kp6 = 35.14, Ki6 = 38.65, Kd6 = 35.91.

From Fig. 17 it is clear that the inputs to ANFIS are E1 and E2 and the output is the overlap angle α.

Considering the particular converter topology, the generated voltage of the STATCOM Vo is given as:

$$V_{o} = \frac{{2V_{ref} {\text{Cos}} (\alpha )}}{\pi }$$
(42)

The real power and reactive power exchanges between the STATCOM and bus 7 can be inferredfrom Eq. (13) and (14). Thus, change in the α of the converter output voltage Vo will result in the change of measured real and reactive power from bus 7. The closed loop system of the ANFIS structure is shown in Fig. 18.

Fig. 18
figure 18

Closed loop ANFIS structure

As can be seen, from the inputs E1 and E2, the samplings are done from A1, A2, A3 and A4 to generate the outputs μ1, μ2, μ3 and μ4, which further gives weights W1 and W2.

The samples are triangular in nature, and the selection of weights from samples is shown in Fig. 19. The empirical mathematical relationship between weights and samples are given as:

$$W_{1} = \frac{\mu 1A1 + \mu 2A2}{{\mu 1 + \mu 2}}$$
(43)
$$W_{2} = \frac{\mu 1B1 + \mu 2B2}{{\mu 1 + \mu 2}}$$
(44)

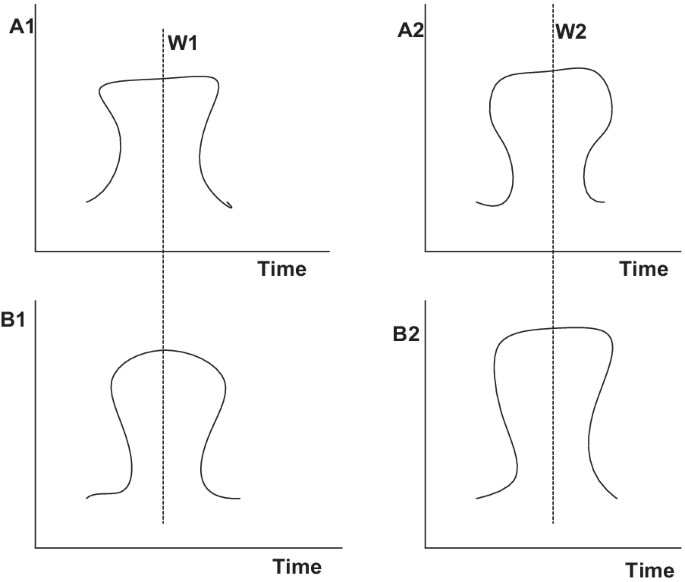

Fig. 19
figure 19

Selection of weights through sampling

The outputs of the weights are shown in weighted average value form because it is in the middle of the sample as shown in Fig. 20.

Fig. 20
figure 20

Membership function of sample output

Since all samples are taken in triangular form, the mathematical representation of sample output (μ) is given as:

$$\mu_{1} = \mu_{2} = \left\{ {\begin{array}{*{20}l} {1,} \hfill & {X \le - c_{1} } \hfill \\ {\frac{{X - c_{2} }}{{ - c_{1} - c_{2} }},} \hfill & { - c_{1} < X < c_{2} } \hfill \\ {0,} \hfill & {X > c_{2} } \hfill \\ \end{array} } \right.$$
(45)
$$\mu_{3} = \mu_{4} = \left\{ {\begin{array}{*{20}l} {1 - \frac{{X - c_{2} }}{{c_{1} }},} \hfill & {\left| {X - c_{2} } \right| \le c_{1} } \hfill \\ {0,} \hfill & {\left| {X - c_{2} } \right| \ge c_{1} } \hfill \\ \end{array} } \right.$$
(46)

The sample outputs are chosen to be triangular in shape in order to have precise results with good accuracy.

In Table 23, the mapping between inputs and output is shown with inputs W1 and W2, and the output is α. The mapping between inputs and output is applied in order to train the weights in the closed loop structure. Again, the steepest descent algorithm is used to check the error sampling from Fig. 19. Once the output is obtained, a feed-forward method using back propagation delay is applied. Training the weights using ANFIS, starts with the first weight W1.

Table 23 Mapping between inputs and output of ANFIS

The error due to first weight W1 is E1 which is shown as:

$$E1 = \frac{{(P_{6} - P_{ref} )^{2} }}{2}$$
(47)

The upgraded weight is given as:

$$W1_{new} = W1_{old} - \eta \frac{d(E1)}{{d\alpha }}$$
(48)

P7 is the real power flow at bus 7 and is dependent on α as:

$$P_{7} \; = k_{1} \cos^{2} (\alpha )$$
(49)

Substituting Eq. (49) into Eq. (47) and differentiating it, yield:

$$\frac{d(E1)}{{d\alpha }} = - 2(P_{7} - {\text{P}}_{ref} )k_{1} {\text{Sin}} (\alpha )$$
(50)

For the second weight W2, training is by using the steepest descent algorithm for which error E2 is given as:

$$E2 = \frac{{(Q_{7} - Q_{ref} )^{2} }}{2}$$
(51)

Q7 is the reactive power flow at bus 7 given as:

$$Q_{7} = k_{2} \cos^{{}} (\alpha ){\text{Sin}} (\alpha )$$
(52)

Substituting Eq. (52) into Eq. (51) and differentiating it, yields:

$$\frac{d(E2)}{{d\alpha }} = - 2(Q_{7} - Q_{ref} )k_{2} {\text{Cos}} (2\alpha )$$
(53)

The old and new values of weights cannot be absolute values because they are trained through a fuzzy logic controller and thus, they are fuzzy variables which show in membership form in Table 23. These uncertain variables are trained in closed loop as shown earlier in Fig. 18.

After designing the ANFIS for switching the STATCOM, real power flow at bus 7 of IEEE 9-bus system is shown in Fig. 21. For comparison, real power at bus 7 with and without the STATCOM is shown in Fig. 22. It is evident that harmonics level or THD in real power flow has been improved with the involvement of the STATCOM. The detailed analysis of THD improvement is shown in Table 24.

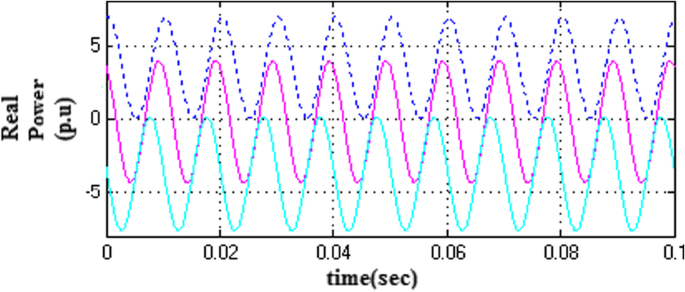

Fig. 21
figure 21

Real power flow at bus 7 with ANFIS switching of STATCOM of IEEE 9 -bus system

Fig. 22
figure 22

Real power flow at bus 7 without STATCOM of IEEE 9- bus system

Table 24 THD of real power flow with and without STATCOM of IEEE 9- bus system at bus 7

Table 25 further compares realand reactive power at bus 7 with and without the STATCOM with the heuristic pdf and ANN. As shown, the power flow at bus 7 due to the STATCOM is lowerthan the heuristic pdf and ANN (without STATCOM).

Table 25 Power flow comparison with and without presence of STATCOM at bus 7 of IEEE 9 -bus system

The placing of the STATCOM in the IEEE 57-bus system has also been assessed and it is preferable to connect it at bus 16. The effects of connecting the STATCOM at bus in improving the THD and real power flow at the bus are shown in Tables 26 and 27, respectively. The flows of real power without and with STATCOM are shown in Figs. 23 and 24, respectively. In both systems, the sizes of the STATCOM are optimally minimized while satisfying the requirements for reducing the harmonics.

Table 26 THD of real power flow with and without STATCOM of IEEE 57 -bus system at bus 16
Table 27 Power flow comparison with and without presence of STATCOM at bus 16 of IEEE 57- bus system
Fig. 23
figure 23

Real power flow at bus 16 with ANFIS switching of STATCOM of IEEE 57- bus system

Fig. 24
figure 24

Real power flow at bus 16 without STATCOM of IEEE 57- bus system

Results and discussion

Location and sizing of multi-DGs using an ANN and the heuristic pdf method are studied and two DGs are connected to the respective IEEE 9-bus and IEEE 57-bus systems to also minimize losses as well improving accuracy, selectivity, THD and MSE. The following parts are analysed in the system:

  • Initially the optimal power flow is assessed with the IEEE 9 bus system using the NR method and poor quality of performance parameters, e.g., THD, MSE, accuracy, selectivity and real power loss, are attained as shown in Table 2 due to a load requirement that is not met. Similar results for performance parameters have also been obtained with existing methods.

  • The multi-DGs are placed in the standard IEEE 9-bus and 57-bus systems in which comparative performance analysis for optimal location of multi-DGs is assessed in terms of multi-objective parameters such as line real power loss, accuracy, selectivity, THD and MSE. It is seen that performance parameters are improved with the ANN when compared to the heuristic pdf for deciding the optimum solution for multi-DGs in the IEEE 9-bus system discussed in Table 9. It is also seen that after determining of buses 8 and 9 as the best optimal positions for the two DG’s; optimal sizing for multi-DGs has been determined among all buses and the optimum solution comes out to be at buses 8 and 9 in terms of minimum real and reactive power. It is found that determination of DG sizes is more satisfactory under an ANN than with a heuristic pdf as illustrated in Table 6. A similar type of behaviour is obtained for the IEEE 57-bus system in Table 7 in which buses 13 and 15 are selected for allocation of multi-DGs and the optimal minimum sizes in terms of real and reactive power are observed with buses 13 and 15.The real and reactive power has distortions and thus multi-FACTS are located. Here, three FACTS devices are used, namely, TCSC, TSC, and STATCOM, and their positioning on the IEEE-9 and IEEE 57-bus systems are assessed as they are connected to the buses that have the worst THD performance. Thus, a transmission network nearby to buses 4,5,6, and 7 are found to be the most suitable for locating the multi-FACTS devices in the IEEE 9-bus system. The TCSC is connected to between buses 5 and 6, the TSC is connected to bus 4 and the STATCOM is connected to bus 7. In order to improve the THD, switching of the TCSC and TSC is done using SPWM while switching of the STATCOM is done using ANFIS. The worst THD levels at buses 4,5,6, and 7 have improved by using multi-FACTS devices as shown in Tables 15, 19, and 24. The requirement of real and reactive power at a particular bus where FACTS devices are connected reduces effectively in comparison with when there are no FACTS devices connected on the same bus as analysed through Tables 16, 20 and 25. Similarly, for the IEEE 57-bus system, buses 9,10,12, and 16 are found to be suitable for locating the multi-FACTS devices. Hence the TCSC is connected between buses 9 and 10, the TSC is connected at bus 12 and the STATCOM is connected at bus 16. The THD levels at the relevant buses have been improved by using multi-FACTS devices as shown in Tables 17, 21 and 26. Also, the requirement of real and reactive power at a particular bus where FACTS devices are connected minimizes effectively in comparison with when there are no FACTS devices connected on the same bus as analysed through Tables 18, 22 and 27.

Conclusion

This paper presents the optimal location and sizing of multi-DGs (two DGs) in the IEEE 9- bus and IEEE 57- bus system with the heuristic pdf and ANN method which are used because fixed load demand is not fulfilled satisfactorily with the NR method (without-DG) while giving poor performance parameters. Accordingly, associated distributed bus locations are examined for analysis of the impact of multi-DGs optimum positioning and sizing. The optimal location of multi-DG’s is measured in terms of multi-objective parameters such as line power loss, accuracy, selectivity, THD and MSE while sizing of DG is measured in terms of real & reactive power. It is evident that the deployment of the ANN leads to better quality parameter such as line real power loss, accuracy, THD, MSE and selectivity compared to the heuristic pdf method and other existing methods. Determination of multi-DG sizing is resolved quite satisfactorily under the ANN with lower real and reactive power than the heuristic pdf. Further positioning of multi-FACTS devices including the TCSC,TSC and STATCOM in the transmission network of the IEEE-9 and IEEE 57- bus system is being decided on the basis of high THD associated with particular buses. It is found that connection of multi-FACTS devices to transmission line near to respective determined buses improves the THD in comparison to without these devices. The application of intelligent techniques like SPWM and ANFIS for controlling the converters also helps to obtain the minimal optimal size of multi- FACTS while improving the power quality in the most economic manner.

Availability of data and materials

All data generated or analysed during this study are included in this research article and any relevant information related to the current study are available from the corresponding author on reasonable request.

Abbreviations

\(\delta_{i}\) :

Load angle

DG:

Distributed generation

SPWM:

Sinusoidal pulse width modulation

\(\theta_{i}\) :

Impedance angle at ‘i’ bus

ANFIS:

Adaptive neuro fuzzy interference system

\(\theta_{j}\) :

Impedance angle at ‘j’ bus

TCS:

Thyristor controlled series compensator

\(\varepsilon\) :

Tolerance limit

STATCOM:

Static Compensator

TSC:

Thyristor switch capacitorThyristor switch capacitor

THD:

Total harmonic distortion

E:

Error

PDF:

Probability distribution method

PWM:

Pulse width modulation

Sij :

Complex power between 2 buses i and j

NB:

Negative big

Pij :

Real power between 2 buses i and j

NM:

Negative medium

Qij :

Reactive powerbetween 2 buses i and j

NS:

Negative small

Slos :

Complex power loss

ZS:

Zero

λ:

Difference between measure & ref. power

PB:

Positive big

\(\sigma\) :

Standard deviation

PS:

Positive small

Gij :

Conductance between i and j bus

PM:

Positive medium

Bij :

Susceptance between ‘i’ and ‘j’ bus

MSE:

Mean square error

G:

Distortion Factor

J:

Objective function for loss minimization

References

  1. Ackermann, T., Anderson, G., & Sder, L. (2001). Distributed generation: A definition. Electric Power System Research, 57, 195–204. https://doi.org/10.1016/S0378-7796(01)00101-8

    Article  Google Scholar

  2. Ishak, R., Mohamed, A., Abdalla, A. N., et al. (2014). Optimal DG placement and sizing for voltage stability improvement using backtracking search algorithm. In International conference on artificial intelligence, energy and manufacturing engineering. Kuala Lumpur, Malaysia, 29–34. https://doi.org/10.15242/IIE.E0614026

  3. Rao, R. S., Ravindra, K., Satish, K., et al. (2013). Loss mnimization in distribution system using network reconfiguration in the presence of distributed generation. IEEE Transactions on Power Systems, 8(1), 317–325. https://doi.org/10.1109/TPWRS.2012.2197227

    Article  Google Scholar

  4. Chiradeja, P., & Ramakumar, R. (2004). A approach to quantify the technical benefits of distributed generation. IEEE Transactions on Energy Conversion, 19(4), 764–773. https://doi.org/10.1109/TEC.2004.827704

    Article  Google Scholar

  5. Harrison, G. P., Piccolo, A., Siano, P., et al. (2008). HybridGA and OPF evaluation of network capacity for distributed generation connections. Electric Power Systems Research, 78(3), 392–398. https://doi.org/10.1016/j.epsr.2007.03.008

    Article  Google Scholar

  6. Thong, V. V., Driesen, J., Belmans, R. (2007). Transmission system operation concerns with high penetration level of distributed generation. In 42nd international universities power engineering conference (pp. 867–871). https://doi.org/10.1109/UPEC.2007.4469063

  7. Zhu, D., Broadwater, R. P., Tam, K.-S., et al. (2006). Impact of DG placement on reliability and efficiency with time-varying loads. IEEE Transactions on Power Systems, 21(1), 419–427. https://doi.org/10.1109/TPWRS.2005.860943

    Article  Google Scholar

  8. Keane, A., O'Malley, M. (2006). Optimal distributed generation plant mix with novel loss adjustment factors. In IEEE power engineering society general meeting (pp. 6–12). https://doi.org/10.1109/PES.2006.1709091

  9. Katsigiannis, Y. A., & Georgilakis, P. S. (2008). Optimal sizing of small isolated hybrid power systems using Tabu search. Journal of Optoelectronics and Advanced Materials, 10(5), 1241–1245.

    Google Scholar

  10. El-Khattam, W., Hegazy, Y. G., & Salama, M. M. A. (2005). An integrated distributed generation optimization model for distribution system planning. IEEE Transactions on Power Systems, 20(2), 1158–1165. https://doi.org/10.1109/TPWRS.2005.846114

    Article  Google Scholar

  11. Mardaneh, M., Gharehpetian, G. B. (2004). Siting and sizing of DG units using GA and OPF based technique. In IEEE region 10 conference TENCON (pp. 331–334). https://doi.org/10.1109/ENCON.204.11474

  12. Kashem, M. A., Le, A. D. T., Negnevitsky, M., et al. (2006). Distributed generation for minimization of power losses in distribution systems. In IEEE power engineering society general meeting (pp. 202–206). https://doi.org/10.1109/PES.2006.1709179

  13. Singh, D., Singh, D., & Verma, K. S. (2009). Multiobjective Optimization for DG Planning With Load Models. IEEE Transactions on Power Systems, 24(1), 427–436. https://doi.org/10.1109/TPWS.2008.2009483

    MathSciNet  Article  Google Scholar

  14. Gozel, T., & Hocaoglu, M. H. (2009). An analytical method for the sizing and siting of distributed generators in radial systems. Electric Power System Research, 79, 912–918. https://doi.org/10.1016/j.epsr.2008.12.007

    Article  Google Scholar

  15. Elnashar, M. M., El-Shatshat, R., & Salama, M. A. (2010). Optimum siting and sizing of a large distributed generators in a mesh connected system. Electric Power System Research, 80(6), 690–697. https://doi.org/10.1016/j.epsr.2009.10.034

    Article  Google Scholar

  16. Jabr, R. A., & Pal, B. C. (2009). Ordinal optimisation approach for locating and sizing of distributed generation. IET Generation, Transmission & Distribution, 3(8), 713–723. https://doi.org/10.1049/iet-gtd.2009.0019

    Article  Google Scholar

  17. Singh, R. K., & Goswami, S. K. (2010). Optimum allocation of distributed generations based on nodal pricing for profit, loss reduction and voltage improvement including voltage rise issue. International Journal of Electrical Power & Energy Systems, 32(6), 637–644. https://doi.org/10.1016/j.ijepes.2009.11.021

    Article  Google Scholar

  18. Prommee, W., & Ongsakul, W. (2008).Optimal multi-distributed generation placement by adaptive weight particle swarm optimization. In International conference on control, automation and systems, Seoul, Korea (pp. 1663–1668). https://doi.org/10.1109/ICCAS.2008.4694499

  19. Hingorani, N. (1993). Flexible AC transmission. IEEE Spectrum, 30(4), 40–45. https://doi.org/10.1109/6.206621

    Article  Google Scholar

  20. Rahimzadeh, S., TavakoliBina, M., & Viki, A.H. (2009). Simultaneous application of multi-type FACTS devices to the restructured environment: Achieving both optimal number and location. IET Generation, Transmission & Distribution, 4(3), 349–362. https://doi.org/10.1049/iet-gtd200.027

    Article  Google Scholar

  21. Cai, L. J., Erlich, I., & Stamtsis, G. (2004). Optimal choice and allocation of FACTS devices in deregulated electricity market using genetic algorithms. In IEEE PES power systems conference and exposition (pp. 201–207). https://doi.org/10.1109/PCE.20041397562

  22. Haque, M. H. (2000). Optimal location of shunt FACTS devices in long transmission lines. IET Generation, Transmission & Distribution, 147(4), 218–222. https://doi.org/10.1049/ip-gtd:20000412

    Article  Google Scholar

  23. Noroozian, M., Angquist, L., & Ghandhariet, M. (1997). Use of UPFC for optimal power flow control. IEEE Transactions on Power Delivery, 12(4), 1629–1634. https://doi.org/10.1109/61.634183

    Article  Google Scholar

  24. S. R. Najafi, M. Abedi and S. H. hosseinian(2006). A Novel Approach to Optimal Allocation of SVC using Genetic Algorithms and Continuation Power Flow.IEEE International Power and Energy Conference, 202–206. doi: https://doi.org/10.1109/PECON.2006.346646

  25. Gerbex, S., Cherkaoui, R., & Germond, A. J. (2001). Optimal location of multi-type FACTS devices in a power system by means of genetic algorithms. IEEE Transactions on Power Systems., 16(3), 537–544. https://doi.org/10.1109/59.932292

    Article  Google Scholar

  26. Lu, Z., Li, M. S., Tang, W. J., et al. (2007). Optimal location of FACTS devices by a Bacterial Swarming Algorithm for reactive power planning. In IEEE congress on evolutionary computation (pp. 2344–2349). https://doi.org/10.1109/CC.2007.42464

  27. El-Zonkoly, A. M. (2011). Optimal placement of multi-distributed generation units including different load models using particle swarm optimization. Swarm and Evolutionary Computation, 1(1), 50–59. https://doi.org/10.1016/j.swevo.2011.02.003

    Article  Google Scholar

  28. GopiyaNaik, S., Khatod, D. K., & Sharma, M. P. (2013). Optimal allocation of combined DG and capacitor for real power loss minimization in distribution networks. International Journal of Electrical Power & Energy Systems, 53, 967–973. https://doi.org/10.1016/j.ijepes.2013.06.008

    Article  Google Scholar

  29. Kaur, S., Kumbhar, G., & Sharma, J. (2014). A MINLP technique for optimal placement of multiple DG units in distribution systems. Issue. International Journal of Electrical Power & Energy Systems, 63, 609–617. https://doi.org/10.1016/j.ijepes.2014.06.023

    Article  Google Scholar

  30. Othman, M. M., El-Khattam, W., Hegazy, Y. G., et al. (2015). Optimal placement and sizing of distributed generators in unbalanced distribution systems using supervised big bang-big crunch method. IEEE Transactions on Power Systems, 30(2), 11–919. https://doi.org/10.1109/TPWS.2014.33134

    Article  Google Scholar

  31. Acharya, N., Mahat, P., & Mithulananthan, N. (2006). An analytical approach for DG allocation in primary distribution network. International Journal of Electrical Power & Energy System, 28(10), 669–678. https://doi.org/10.1016/j.ijepes.2006.02.013

    Article  Google Scholar

  32. Mithulananthan, N., Oo, T., & Van Phu, L. (2004). Distributed generator placement in power distribution system using genetic algorithm to reduce losses. Thammasat International Journal of Science and Technology, 9(3), 55–62.

    Google Scholar

  33. Hamed, S. H. (2008). Intelligent water drops algorithm: a new optimization method for solving the multiple knapsack problem. International Journal of Intelligent Computing and Cybernetics, 1(2), 193–212. https://doi.org/10.1108/17563780810874717

    MathSciNet  Article  MATH  Google Scholar

  34. Chen, J.-F., & Chen, S.-D. (1997). Multiobjective power dispatch with line flow constraints using the fast Newton-Raphson method. IEEE Transactions on Energy Conversion, 12(1), 86–93. https://doi.org/10.1109/60.577285

    Article  Google Scholar

  35. Amini, S., Pasqualetti, F., Abbaszadeh, M., et al. (2019). Hierarchical location identification of destabilizing faults and attacks in power systems: A frequency-domain approach. IEEE Transactions on Smart Grid, 10(2), 2036–2045. https://doi.org/10.1109/TSG.2017.2787690

    Article  Google Scholar

  36. Zhang, Y.-G., Wang, Z.-P., Zhang, J.-F., et al. (2011). Fault localization in electrical power systems: A pattern recognition approach. International Journal of Electrical Power & Energy Systems, 33(3), 791–798. https://doi.org/10.1016/j.ijepes.2011.01.018

    Article  Google Scholar

  37. Swetapadma, A., & Yadav, A. (2017). A novel decision tree regression-based fault distance estimation scheme for transmission lines. IEEE Transactions on Power Delivery, 32(1), 234–245. https://doi.org/10.1109/TPWRD.2016.2598553

    Article  Google Scholar

  38. Dai, C., Chen, W., Zhu, Y., et al. (2009). Seeker optimization algorithm for optimal reactive power dispatch. IEEE Transactions on Power Systems, 24(3), 1218–1231. https://doi.org/10.1109/TPRS.20092021226

    Article  Google Scholar

  39. Nayak, M. R., Krishnanand, K. R., & Rout, P. K. (2011). Optimal reactive power dispatch based on Adaptive Invasive Weed Optimization algorithm. International Conference on Energy, Automation and Signal. https://doi.org/10.1109/ICAS.2011.647112

    Article  Google Scholar

  40. Li, Y., Wang, Y., & Li, B. (2013). A hybrid artificial bee colony assisted differential evolution algorithm for optimal reactive power flow. International Journal of Electrical Power & Energy Systems, 52(1), 25–33. https://doi.org/10.1016/j.ijepes.2013.03.016

    Article  Google Scholar

  41. Yang, B., Yu, L., & Chen, Y. (2020). Modelling, applications, and evaluations of optimal sizing and placement of distributed generations: A critical state-of-the-art survey. International Journal of Energy Research’, 45(3), 3615–3642. https://doi.org/10.1002/er.6104

    Article  Google Scholar

  42. Yang, B., Wang, J., Chen, Y., et al. (2020). Optimal sizing and placement of energy storage system in power grids: A state-of-the-art one-stop handbook. Journal of Energy Storage, 32, 101814. https://doi.org/10.1016/j.est.2020.101814

    Article  Google Scholar

  43. Demolli, H., Dokuz, A. S., & Ecemis, A. (2021). Location-based optimal sizing of hybrid renewable energy systems using deterministic and heuristic algorithms. International Journal of Energy Research. https://doi.org/10.1002/er.6849

    Article  Google Scholar

  44. Gökçek, M., & Kale, C. (2021). Optimal sizing of off-grid hydrokinetic-based hybrid renewable power systems for a house load demand. International Journal of Energy Research, 45(7), 10208–10225. https://doi.org/10.1002/er.6509

    Article  Google Scholar

Download references

Acknowledgements

None.

Funding

No funding or any financial aid has been received for this particular research work.

Author information

Authors and Affiliations

Authors

Contributions

The named authors have substantially contributed to conducting the underlying research and drafting this manuscript. All authors read and approved the final manuscript.

Authors' information

Dr. Anwar Shahzad Siddiqui is a Professor in the Department of Electrical Engineering, Faculty of Engineering and Technology, Jamia Millia Islamia (JMI), and has 24 years of teaching and research experience in the field of Power systems Control and Management. Dr. Anwar has done extensive research work in the broad area of Power System Control and Management, specifically on Congestion management in Deregulated Power System, FACTS Devices and Applications of Artificial Intelligence Techniques in the field of Power System. He has published many research papers in International Journals and Conferences of repute

Mr. Prashant is PhD scholar at Department of Electrical Engineering, Faculty of Engineering and Technology, Jamia Millia Islamia, New Delhi, India.He received his B.Tech Degree in Electrical Engineering from U.P.T.U. Lucknow, India in 2011 and M.Tech in Electrical Power System Management from Jamia Millia Islamia, New Delhi, India in 2015. His research areas of interest are Power System Operations and Management, Restructuring and Deregulation of Power System, Solar Photovoltaic Systems, Renewable Energy, & Application of Intelligent Techniques in power system operations. He has published many research papers in reputed International Journals and Conferences.

Corresponding author

Correspondence to Prashant.

Ethics declarations

Competing interests

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Siddiqui, A.S., Prashant Optimal Location and Sizing of Conglomerate DG- FACTS using an Artificial Neural Network and Heuristic Probability Distribution Methodology for Modern Power System Operations. Prot Control Mod Power Syst 7, 9 (2022). https://doi.org/10.1186/s41601-022-00230-5

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI: https://doi.org/10.1186/s41601-022-00230-5

Keywords

  • DG
  • Location
  • Sizing
  • FACTS
  • ANN
  • ANFIS
