Age-of-information-aware PI controller for load frequency control

Abstract

Open communication system in modern power systems brings concern about information staleness which may cause power system frequency instability. The information staleness is often characterized by communication delay. However, communication delay is a packet-centered metric and cannot reflect the requirement of information freshness for load frequency control (LFC). This paper introduces the age of information (AoI), which is more comprehensive and informative than the conventional communication delay modeling method. An LFC controller and communication are integrated into the design for LFC performance improvement. An AoI-aware LFC model is formulated first, and considering each allowable update period of the smart sensor, different AoI-aware PI controllers are then designed according to the exponential decay rate. The right AoI-aware controller and update period are selected according to the degree of frequency fluctuation of the power system. Case studies are carried out on one-area and two-area power systems. The results show the superior performance of the AoI-aware controllers in comparison to the delay-dependent controllers.

1 Introduction

Load frequency control (LFC) is one of the fundamental applications of the cyber-physical power system [1, 2]. LFC aims to maintain frequency and power interchanges with neighborhood areas at scheduled values by regulating generation units [3, 4]. LFC works in a sampled-data form due to the discrete information update process and continuous physical plant operation process. The information update process involves smart sensors, communication system, and control center. The information is updated by smart sensors and is transmitted through the communication system to the control center. The information update process inevitably increases information staleness, especially in the open communication system widely used in LFC [5]. However, severe information staleness may threaten the frequency stability of a power system [4, 6, 7].

Communication delay is often applied to the LFC study to characterize the information staleness [8]. To deal with the delay-constrained LFC problem, the previous studies on the stabilization of power system frequency are mainly from two perspectives: the modeling of communication delay and the design of the controller [9]. For example, delay-dependent stability for a traditional LFC scheme with constant and time-varying delays is investigated in [10], while a delay-dependent robust controller is studied in [11]. In addition, there are different LFC algorithms, such as robust decentralized PI-based LFC [12,13,14], decentralized sliding-model LFC [15], active disturbance rejection control [16], model-based control [17] and model predictive control [8]. However, most of these advanced methods suggest complex state feedback or high-order dynamic controllers. As shown in [18], power systems still prefer conventional PI controllers. However, the communication delay is not the optimal metric to describe the information staleness [19]. Communication delay is an information-packet-centered metric. It overlooks the control factors of the update process such as the update period, the routing selection, and the retransmission mechanism [20]. Therefore, it cannot provide the controllability of the communication system. Therefore, the above delay-dependent controllers may be conservative and cannot provide good solutions for the LFC performance based on the delay model [18].

This paper introduces the age of information (AoI) to the LFC study to characterize the information staleness, and to capture the randomness of state updates [19, 21]. AoI is the length of time that elapsed from the generation of the most recently delivered packet [22], and contains richer connotations than communication delay, including the effects of the control factors of the information update process. In this study, an AoI-aware method is made to couple the LFC controller and communication as an integrated entity, which is called as AoI-aware controller.

This paper consider the control factors of the information update process and the information update period, to show the design process. With the right update period, the control center can receive fresher information and make better decisions to regulate the output of generation units. Thus, the LFC performance is improved. Compared with the communication delay, AoI is more accurate to describe the information staleness. The proposed AoI-aware controller shows superiority to stabilize the power system theoretically.

The design of the AoI-aware PI controller contains three steps. The AoI-aware LFC model of the power system is formulated first. Different AoI-aware PI-type controllers are then designed for different update periods according to the exponential decay rate (EDR). The values of EDR are adjusted by the performance evaluation conditions of parameter H∞ performance. Finally, a right AoI-aware PI-type controller and update period are selected according to the degree of frequency fluctuation of the power system because the optional update period is relatively limited in practical power systems [4, 23].

The Main contributions of this paper are:

  1. 1.

    Formulate an AoI-aware LFC model, and AoI is used instead of communication delay to describe the information update process in the LFC.

  2. 2.

    Design an AoI-aware PI controller to improve LFC performance. The LFC controller and the communication are integrated as a single design entity.

Reference [24] introduces the AoI in the communication area to describe the information staleness of LFC and optimizes the controller parameters from the perspective of the information update process. The main differences in novelty, analysis, and case study parts between [24] and this paper can be summarized as follows.

  • For novelty, the role of AoI in [24] is to alleviate the effect of limited communication bandwidth, whereas in this paper it is used to stress the information staleness issues for LFC. The difference between AoI and communication delay is elaborated, while [24] designs an LQR controller for the LFC system, this paper designs a PI controller. Compared with the complicated LQR controller, the PI controller is much simpler and easier to implement in practice.

  • For the analysis of LFC models, reference [24] employs the event-triggered communication mechanism while this paper uses the time-triggered communication mechanism. Different communication mechanisms involve different analyses and models. Besides, this paper considers operating points and practical nonlinear constraints, including the GRC and GDB constraints. However, these nonlinear constraints are simplified in [24], which makes its model limited.

  • For the case study, this paper considers the scenarios under the nonlinear GRC and GDB constraints and different operating points while [24] does not study such conditions.

The remainder of this paper is organized as follows. Section 2 includes the structure of the communication system and the AoI model, while Sect. 3 proposes the AoI-aware LFC model and introduces the design process of the AoI-aware PI controller. Section 4 presents the results of one-area and two-area AoI-aware LFC performances, and compares the abilities of delay-dependent PI controllers and AoI-aware PI controllers. Finally, Sect. 5 concludes this paper.

2 Problem formulation

This section describes the communication process for LFC, gives the comparison between communication delay and AoI, and presents the metric descriptions.

2.1 Communication process for LFC

LFC aims to maintain the frequency stability and the tie-lie power exchange in a scheduled value. Figure 1 illustrates the equivalent model of the ith area LFC system. It includes the communication system and the physical power system. The communication system samples the area control error (ACE) message and generates the control command u(tk) to govern the output of generation unit ΔPmi. The ACE of the ith area, denoted as ACEi, is the combination of the frequency deviation Δfi and net exchange power deviation ΔPtiei, i.e.:

$$AC{E_i}={\beta _i}\Delta {f_i}+\Delta {P_{{\text{tie}}i}}$$
(1)

where ßi is the frequency deviation factor.

Fig. 1
figure 1

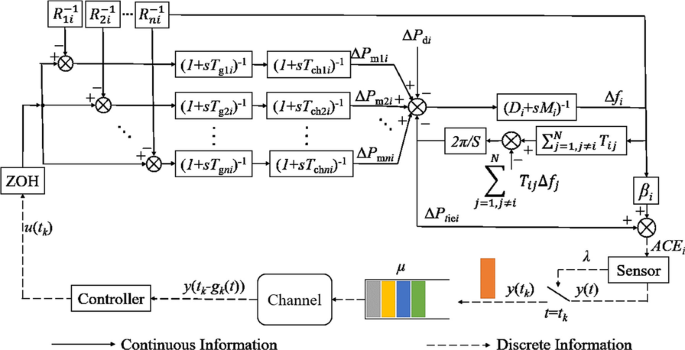

 A dynamic model of the ith area LFC system

The sensors, such as remote terminal units (RTUs), sample the area control error signal ACEi at tk. The sensor updating information interval is called update period λ. Then, the sampled packets y(tk) are queuing in front of the communication channel for transmission. Subsequently, y(tk) is transmitted through the communication channel and is received by the controller. The controller receiving information rate is called service rate µ. Information staleness will rise in the communication process [7, 25].

In this paper, the communication process is abstracted as an M/M/1 queue system which means the update rate λ−1 obeys the Poisson distribution random process, and the service rate µ obeys the exponential distribution random process. Additionally, the communication process follows a first-come-first-serve (FCFS) principle.

2.2 AoI and communication delay

AoI is first proposed in [10, 26] to measure information freshness at the destination node such as the control center. Note that each information packet includes the time stamp information that indicates the update time and received time of the packet. Define the update time of the information packet as tk, the AoI gk(t) at the controller can be defined as [10, 27]:

$$g_{k} (t) = t - {\text{max}}\left\{ {t_{k} \left| {t_{k}^{\prime } < t} \right.} \right\}{\text{ }}$$
(2)

Figure 2 shows the model of AoI gk(t) at the controller. Information packet k is updated at time tk and received at the time. AoI gk(t), as a function of time t, is jagged. Whenever the controller receives more fresh information, the AoI drops to the next information’s communication delay. Otherwise, it grows linearly.

Average AoI is the area under the jagged function in Fig. 2 by the observation interval T. Over the interval (0, T), the average AoI E[gk(t)] is:

$${\text{ }}E\left[ {{g_k}(t)} \right]{\text{=}}\mathop {\lim }\limits_{{T \to \infty }} \frac{1}{T}\int_{0}^{T} {{g_k}(t)dt} {\text{ }}$$
(3)
Fig. 2
figure 2

Example variation in AoI at the controller under FCFS queue

Considering the FCFS M/M/1 communication system, its average AoI gave is expressed as:

$${g_{{\text{ave}}}}(\lambda )=\mu +\lambda +\frac{{{\mu ^3}}}{{{\lambda ^2} - \mu \lambda }}$$
(4)

It is clear from (4) that the average AoI gave is related to the updating period λ and service rate µ. To guarantee that the sensors can update their status stably, the region of the update period is 0 < λmin ≤ λ ≤ λmax. The service rate is associated with the communication infrastructure and is a constant [19]. The average AoI gave(λ) can be minimized with respect to the update period λ.

Let the service rate µ = 1 message/second, the update period λ = 1.83 s, and gave (1.88) is minimal, the minimized average AoI is obtained by choosing an update period λ that makes the communication channel to be only slightly busier than idle.

Note that λ−1 → µ can achieve maximum throughput and λ → 0 can minimize the communication delay. The maximum throughput may cause a large communication delay and the minimization of communication delay will make the control center lack sufficient information for decision-making. Thus, these two methods cannot make information updated freshly.

The period time \(t_{k}^{\prime } - t_{k}\) is called the communication delay dk of information packet k, which includes the queuing time and service time of information packet k [28], as:

$$d_{k} = t_{k}^{\prime } - t_{k}$$
(5)

Table 1 shows the difference between AoI and communication delay in these aspects [29]. Firstly, AoI describes the whole communication process, whereas the conventional communication delay model is usually defined for each information packet. Secondly, AoI employs the communication queue model to model the communication process while the conventional communication delay model is characterized by random sequences. The AoI model is more accurate because the sensor can update the information according to its will. Thirdly, AoI model takes into account the effects of control factors, such as the frequency of information transmission, so that it shows the controllability of the communication system.

Table 1 Comparison of AoI and communication delay

2.3 Metric descriptions

The LFC performance metric W, namely, average frequency fluctuation, is introduced first to describe the average frequency fluctuation. Then the EDR m and H∞ gain γ are respectively proposed to describe the frequency convergence with load disturbance ΔPd = 0 and disturbance rejection capability of the power system with load disturbance ΔPd ≠ 0. W and EDR m are frequency performance metrics, and their difference is that the LFC performance metric W describes not only the frequency convergence but also the amplitude of frequency fluctuation. Generally, the AoI-aware PI controller is designed according to the EDR m and H∞ gain γ. The right AoI-aware controller is then selected by the LFC performance metric W.

The LFC design objective is to improve LFC performance. The LFC performance metric W is defined as:

$$W=\sum\limits_{{i=1}}^{N} {\frac{{\int_{0}^{T} {\left| {\Delta {f_i}} \right|} dt}}{T}}$$
(6)

where T is the observed time, Δfi is the frequency deviation of the ith area. Small W means that power system frequency can converge to stable value quickly and smoothly. The average frequency fluctuation W can be minimized by the integration design of the update period and LFC controller.

The EDR is introduced as a performance metric to describe the controller’s robustness and frequency response dynamic performance. It can vary in the interval [0, ∞). When EDR m → 0, the robustness becomes the strongest, and the dynamic frequency response performance becomes the worst. When EDR m → ∞, the robustness becomes the weakest, but the frequency response dynamic performance is considered to be the best.

H∞ gain γ describes the disturbance suppression capability of a power system, and the small H∞ gain γ means strong disturbance suppression ability.

The design of the AoI-aware PI controller contains three steps. The AoI guides first choose the update period of the communication system. A right update period decides a small AoI, which means the PI controller can receive fresher information and then change the units to stabilize the frequency more quickly. The EDR is then introduced to guide the design of an AoI-aware PI controller. The values of EDR are adjusted by the given robust performance evaluation conditions of H∞ performance. Finally, the right AoI-aware PI controller is selected by the LFC performance metric W.

3 Design of AoI-aware PI controller

This section formulates the AoI-aware LFC model and proposes the AoI-aware PI controller.

3.1 AoI-aware LFC model

Considering the multi-area power system depicted in Fig. 1, the generation units are equivalent to the model of the governor and turbine. In this paper, the model of a non-reheating steam turbine generator unit with a governor is considered, and its transfer function is 1/[(1 + sTgi)(1 + sTchi)], where Tgi and Tchi represent the governor time constant and steam turbine time constant, respectively.

The frequency dynamics can be linearized for small-signal stability analysis:

$$\left\{ {\begin{array}{*{20}l} {\dot{x}\left( t \right) = Ax\left( t \right) + Bu\left( t \right) + F\Delta P_{{\text{d}}} {\text{ }}(a)} \\ {y\left( t \right) = Cx\left( t \right){\text{ }}(b)} \\ \end{array} } \right.$$
(7)

where

$$x_{i} \left( t \right) = \left[ {\Delta f_{i} {\text{ }}\Delta P_{{{\text{m}}i}} {\text{ }}\Delta P_{{{\text{v}}i}} {\text{ }}\int {ACE_{i} {\text{ }}\Delta P_{{t{\text{ie}}i}} } } \right]^{T}$$
$$y_{i} \left( t \right) = \left[ {ACE_{i} {\text{ }}\int {ACE_{i} } } \right]^{T} ,\;B_{i} = \left[ {\begin{array}{*{20}l} 0 \hfill & 0 \hfill & {\frac{{\alpha _{i} }}{{T_{{{\text{g}}i}} }}} \hfill & 0 \hfill & 0 \hfill \\ \end{array} } \right]^{T}$$
$$A_{{ii}} = \left[ {\begin{array}{*{20}l} { - \frac{{D_{i} }}{{M_{i} }}} \hfill & {\frac{1}{{M_{i} }}} \hfill & 0 \hfill & 0 \hfill & { - \frac{1}{{M_{i} }}} \hfill \\ 0 \hfill & { - \frac{1}{{T_{{{\text{ch}}i}} }}} \hfill & {\frac{1}{{T_{{{\text{ch}}i}} }}} \hfill & 0 \hfill & 0 \hfill \\ { - \frac{1}{{R_{i} T_{{{\text{g}}i}} }}} \hfill & 0 \hfill & { - \frac{1}{{T_{{{\text{g}}i}} }}} \hfill & 0 \hfill & 0 \hfill \\ {\theta _{i} } \hfill & 0 \hfill & 0 \hfill & 0 \hfill & 1 \hfill \\ {\sum\limits_{{j = 1,j \ne i}}^{n} {T_{{ij}} } } \hfill & 0 \hfill & 0 \hfill & 0 \hfill & 0 \hfill \\ \end{array} } \right]{\text{ , }}\;A_{{ij}} = \left[ {\begin{array}{*{20}l} 0 \hfill & 0 \hfill & 0 \hfill & 0 \hfill & 0 \hfill \\ 0 \hfill & 0 \hfill & 0 \hfill & 0 \hfill & 0 \hfill \\ 0 \hfill & 0 \hfill & 0 \hfill & 0 \hfill & 0 \hfill \\ 0 \hfill & 0 \hfill & 0 \hfill & 0 \hfill & 0 \hfill \\ { - Tij} \hfill & 0 \hfill & 0 \hfill & 0 \hfill & 0 \hfill \\ \end{array} } \right]$$
$$F_{i} = \left[ {\begin{array}{*{20}l} { - \frac{1}{{M_{i} }}} \hfill & 0 \hfill & 0 \hfill & 0 \hfill & 0 \hfill \\ \end{array} } \right]^{T} ,\;C_{i} = \left[ {\begin{array}{*{20}l} {\beta _{i} } \hfill & 0 \hfill & 0 \hfill & 0 \hfill & 1 \hfill \\ 0 \hfill & 0 \hfill & 0 \hfill & 1 \hfill & 0 \hfill \\ \end{array} } \right]$$

Define that x(t) = [x1(t) x2(t) … xn(t)]T, y(t) = [y1(t) y2(t) … yn(t)]T, u(t) = [u1(t) u2(t) … un(t)]T, and ΔPd(t) = [ΔPd1(t) ΔPd2(t) … ΔPdn(t)]T, where xi(t), yi(t), ui(t), ΔPdi (t) represent the state vector, the output of the sensor, the output of the control center, load deviation of the ith area, respectively. Define the system matrix A = [Aij]n×n, the control matrix B  =  diag[B1B2Bn], the output matrix C = diag[C1C2Cn], the disturbance matrix F = diag[F1F2Fn]. ΔPmi and ΔPvi represent the generator mechanical power output deviation and control valve position deviation of the ith area LFC power systems, respectively. In addition, Tij is the synchronization factor of the contact line between area i and area j, where Tij = Tji.

The ACEi acts as the input of the PI controller. The information staleness of the ACE messages herein is characterized by AoI gki(t), where gki(t) represents the AoI of the kthACEi at the controller at the time t in the ith area LFC. Based on (7b), the output of the LFC controller can be expressed as:

$$\begin{aligned} u_{i} \left( t \right) & = - K_{{{\text{P}}i}} ACE_{i} - K_{{{\text{I}}i}} \int {ACE_{i} } \\ & = - K_{i} y_{i} \left( {t - g_{{ki}} \left( t \right)} \right) \\ & = - K_{i} C_{i} x_{i} \left( {t - g_{{ki}} \left( t \right)} \right) \\ \end{aligned}$$
(8)

where Ki = [KpiKIi].

The multi-area closed-loop AoI-aware LFC system can be expressed as:

$$\dot {x}\left( t \right)=Ax\left( t \right)+\sum\limits_{{i=1}}^{n} {{A_{{\text{d}}i}}} x\left( {t - {g_{ki}}\left( t \right)} \right)+F\Delta {P_{\text{d}}}$$
(9)

Defining Adi = [0…-BiKiCi…0] and assuming each area has the same AoI with gk1(t) = gk2(t) = …= gkn(t) = gk(t), there is:

$$\dot {x}\left( t \right)=Ax\left( t \right)+\sum\limits_{{i=1}}^{n} {{A_{{\text{d}}i}}} x\left( {t - {g_k}\left( t \right)} \right)+F\Delta {P_{\text{d}}}$$
(10)

The discrete-time representation of multi-area AoI-aware LFC model can be expressed as:

$$\begin{aligned} \dot{x}\left( t \right) & = Ax\left( t \right) + \sum\limits_{{i = 1}}^{n} {A_{{{\text{d}}i}} } x\left( {t_{k} - g_{k} (t)} \right) + F\Delta P_{{\text{d}}} \\ & \quad t_{k} < t < t_{{k + 1}} \\ \end{aligned}$$
(11)

3.2 Design of an AoI-aware PI-type controller

In this part, the AoI-aware PI controller can be designed and the right AoI-aware PI controller can be chosen to improve the LFC performance.

EDR is introduced first to guide the design of the AoI-aware PI controller shown in Theorem 1. This step guarantees that the LFC system (11) is exponentially stable and has EDR m. Next, the H∞ gain γ metric is introduced to evaluate the EDR of the designed controller with non-zero load disturbance shown in Condition 1. The values of EDR can be adjusted by H∞ performance, which describes the disturbance rejection capability of the power system while ensuring the frequency convergence rate. Meanwhile, Algorithms 1 and 2 are respectively proposed to introduce the process of AoI-aware PI controller design.

Theorem 1

[9]: Consider AoI-aware LFC system (11) with zero load disturbance ΔPd = 0. When given average AoI gave(λ), EDR m and turning parameters l1 and l2, existing symmetric positive definite matrices P1, P3 and symmetric matrices P2, Z, and any appropriately dimensioned matrices X1, X2, S, Y, and R2 satisfy the following inequalities:

$$\Theta _{{1j}} = \varphi _{1} + \Gamma _{j} + \lambda ^{{ - 1}} \varphi _{2} < 0,\quad j = 1,2$$
(12)
$$\Theta _{{2j}} = \left[ {\begin{array}{*{20}c} {\varphi _{1} + \Gamma _{j} {\text{ }} - \lambda ^{{ - 1}} \psi _{2}^{T} R_{2} } \\ {*{\text{ }} - \lambda ^{{ - 1}} Z} \\ \end{array} } \right] < 0$$
(13)
$$\begin{aligned} \varphi _{1} &= Sym\left\{ {\left[ \begin{gathered} c_{1} \hfill \\ c_{3} \hfill \\ \end{gathered} \right]^{T} \;P_{1} \left[ \begin{gathered} c_{5} \hfill \\ c_{4} \hfill \\ \end{gathered} \right] + \psi _{2}^{T} R_{2} \left( {c_{1} - c_{2} } \right)} \right\} \hfill \\ &\quad - \left[ \begin{gathered} c_{3} \hfill \\ c_{2} \hfill \\ \end{gathered} \right]^{T} X\left[ \begin{gathered} c_{3} \hfill \\ c_{2} \hfill \\ \end{gathered} \right] + \left[ \begin{gathered} c_{1} \hfill \\ c_{5} \hfill \\ \end{gathered} \right]^{T} P_{2} \left[ \begin{gathered} c_{1} \hfill \\ c_{5} \hfill \\ \end{gathered} \right] - \left[ \begin{gathered} c_{3} \hfill \\ c_{4} \hfill \\ \end{gathered} \right]^{T} P_{2} \left[ \begin{gathered} c_{3} \hfill \\ c_{4} \hfill \\ \end{gathered} \right] \hfill \\ & \quad + g_{{{\text{ave}}}} \left( \lambda \right)c_{5}^{T} P_{3} c_{5} - \frac{1}{{g_{{{\text{ave}}}} \left( \lambda \right)}}\left( {c_{1} - c_{3} } \right)^{T} P_{3} \left( {c_{1} - c_{3} } \right) \hfill \\ \end{aligned}$$
$${\Gamma _j}=\psi _{1}^{T}{\psi _3}\left( {{S^T}{c_5} - \left( {{A_{ii}}+mI} \right){S^T}{c_1} - {\eta _j}{B_i}Y{c_2}} \right)$$
$$X=\left[ \begin{gathered} {\text{ }}{X_1}+X_{1}^{T}{\text{ }} - {X_1} - {X_2} \\ {\left( { - {X_1} - {X_2}} \right)^T}{\text{ }}{X_2}+X_{2}^{T} \\ \end{gathered} \right]$$
$${\varphi _2}=c_{4}^{T}Z{c_4}+Sym\left\{ {{{\left[ \begin{gathered} {c_3} \hfill \\ {c_2} \hfill \\ \end{gathered} \right]}^T}X\left[ \begin{gathered} {c_4} \hfill \\ 0 \hfill \\ \end{gathered} \right]} \right\}$$
$$c_{\varepsilon } = \left[ {0_{{\zeta \times (\varepsilon - 1)\zeta }} {\text{ }}I_{\zeta } {\text{ }}0_{{\zeta \times (5 - \varepsilon )\zeta }} } \right],\varepsilon = 1, \ldots ,5$$
$${\psi _1}={\left[ {c_{1}^{T}{\text{ }}c_{2}^{T}{\text{ }}c_{5}^{T}} \right]^T},{\text{ }}{\psi _2}={\left[ {c_{1}^{T}{\text{ }}c_{2}^{T}{\text{ }}c_{3}^{T}{\text{ }}c_{4}^{T}{\text{ }}c_{5}^{T}} \right]^T}$$
$${\psi _3}=[I;{l_1}I;{l_2}I],{\text{ }}{\eta _1}={e^{m{g_{{\text{ave}}}}\left( \lambda \right)}},{\text{ }}{\eta _2}={e^{m\left( {{g_{{\text{ave}}}}\left( \lambda \right)+{\lambda ^{ - 1}}} \right)}}$$

where ζ is the dimension of the matrix A in (11). Then any AoI smaller than gave(λ) can keep the AoI-aware LFC system stable with EDR m. The control gain of the AoI-aware PI controller can thus be obtained by:

$${K_i}=Y{\left( {{S^T}} \right)^{ - 1}}C_{i}^{T}{\left( {{C_i}C_{i}^{T}} \right)^{ - 1}}$$
(14)

To evaluate the EDR of the designed controller, H∞ performance analysis is introduced in Condition 1.

Condition 1

Here γ is introduced to present H∞ performance. Considering an AoI-aware LFC system (11) with ΔPd ≠ 0, when given H∞ gain γ, existing symmetric positive definite matrices P1, P3 and symmetric matrices P2, Z, and any appropriately dimensioned matrices X1, X2, R2, and L satisfy the following inequalities.

$$\Omega _{1} = \left[ {\begin{array}{*{20}c} {\Theta _{1} } & { - \psi _{1}^{T} LF_{i} } \\ * & { - \gamma I} \\ \end{array} } \right] < 0$$
(15)
$$\Omega _{2} = \left[ {\begin{array}{*{20}c} {\Theta _{2} } & {\left[ {\begin{array}{*{20}c} { - \psi _{1}^{T} LF} \\ 0 \\ \end{array} } \right]} \\ * & { - \gamma I} \\ \end{array} } \right] < {\text{ }}0$$
(16)
$${\Theta _1}={\varphi _1}+\Gamma +{\lambda ^{ - 1}}{\varphi _2}<0$$
(17)
$$\Theta _{2} = \left[ {\begin{array}{*{20}c} {\varphi _{1} + \Gamma } & { - \lambda ^{{ - 1}} \psi _{2}^{T} R_{2} } \\ * & { - \lambda ^{{ - 1}} Z} \\ \end{array} } \right] < 0$$
(18)
$$\Gamma =Sym\{ \psi _{1}^{T}L({c_5} - {A_{ii}}{c_1} - {B_i}{K_i}{C_i}{c_2})\}$$

Then any AoI smaller than gave(λ) can keep the AoI-aware LFC system stable with load disturbance ΔPd and H∞ gain γ. c1TCiTCic1 should be added into φ1 and the other matrix notations are the same as Theorem 1. The proof of Condition 1 is given in [30].

The algorithm of design of the AoI-aware PI controller is discussed. For a given allowable average AoI gave(λi), the following Algorithm 1 is developed to determine the AoI-aware PI controller gains Kpi, KIi with desired EDR, including H∞ gain γ.

figure a

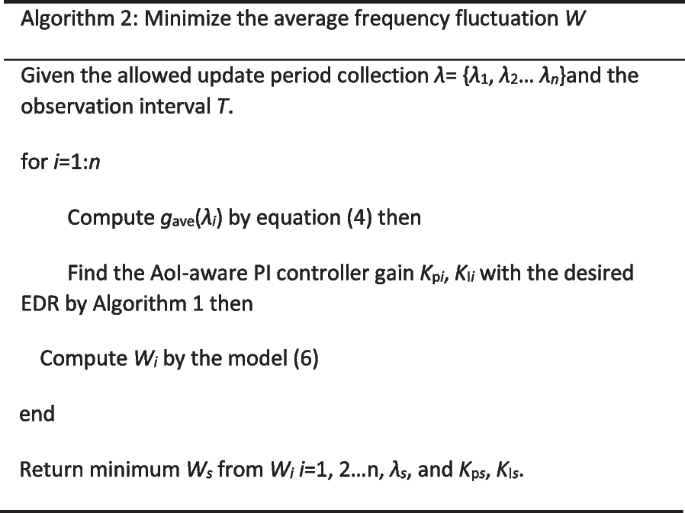

Next, Algorithm 2 is proposed to optimize the LFC performance W. W can be minimized by following two steps. The optional update period is relatively limited in practical power systems. The first step is to design the different AoI-aware PI controller gains for each allowed update period according to EDR, while the second step is to find the appropriate AoI-aware PI controller and the update period based on the degree of frequency fluctuation of power system W. The specific process to optimize LFC performance is shown in Algorithm 2.

figure b

4 Case study

In this section, the correctness of the AoI-aware LFC model is proved and case studies are carried out on one-area and two-area power systems. The performances of the system with different update periods are evaluated. Additionally, the abilities of the proposed AoI-aware PI controller and delay-dependent PI controller to stabilize the system are compared.

4.1 Prove the correctness of the AoI-aware LFC model

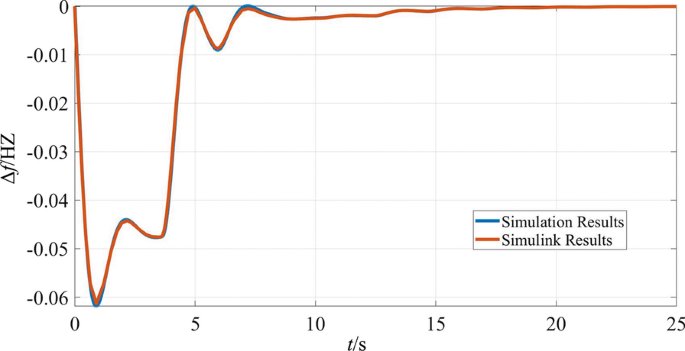

Considering the one-area power system in Table 2, the update period is λ = 2.2 s, the AoI-aware PI controller gains are Kp = 0.6952, KI = 0.3752, and the load disturbance is ΔPd = 0.02 pu. Figure 3 compares the frequency deviation Δf from the Simulink results and simulation results based on the proposed AoI-aware LFC model. As can be seen from Fig. 3 that the frequency deviation curves are almost the same, which proves the correctness of the AoI-aware LFC model.

Fig. 3
figure 3

Comparison of the frequency deviation Δf from the Simulink results and simulation results based on the proposed AoI-aware LFC model under the update period λ = 2.2 s for ΔPd = 0.02 pu

4.2 One-area AoI-aware LFC

Considering a one-area AoI-aware LFC system, the system’s parameters are reported in Table 2. It assumes that α1 = 1, the constant load disturbance ΔPd=0.02 pu, and the observation interval T = 17 s. Let the tuning parameters l1 = 0, l2 = 2.03, and H∞ gain γ = 20, the AoI-aware PI controller gain parameters Kp and KI with different update periods are listed in Table 3.

Table 2 Parameters of one-area AoI-aware LFC system
Table 3 AoI-aware PI controller parameters of one-area

Figure 4 demonstrates the performance of the one-area system with different update periods. As the update period grows from 1.4 to 2.2 s, the system performance index W decreases rapidly. While the update period increases from 2.2 to 4.6 s, the worse system frequency performance is obtained. Thus, λ = 2.2 s is the right point for optimal one-area power system performance. Figure 4 reveals that LFC performance and update period are related. Therefore, the right update period can be found directly for optimal performance. It also reveals that both too long and too short update periods significantly deteriorate the one-area power system performance.

Fig. 4
figure 4

Performance index W of the one-area AoI-aware LFC system with different update periods when ΔPd = 0.02 pu and the average AoI with different update periods

Additionally, it can be seen from Fig. 4 that the average AoI is a convex function with the update period, while both long and short update periods lead to larger average AoI. A long update period means the control center may not receive fresh information frequently, whereas a short update period leads to information queuing in the communication channel. Figure 4 shows that the average AoI can reflect timely information updates.

Figure 5 compares the frequency deviations of the one-area power system with update periods λ = 1.4 s, 2.2 s, and 4.6 s. It is observed from Fig. 5 that the fluctuation and convergence time of Δf with λ = 2.2 s are smaller and shorter than the Δf with λ = 1.4 and 4.6 s. Thus, Fig. 5 verifies that system performance can be degraded by inappropriate update periods. For example, when λ = 1.4 s, information packets are queued heavily in the communication channel, which increases the communication delay and AoI. In contrast, when λ = 4.6 s, the control center cannot receive enough information for decisions, which leads to poor system performance. The above results are consistent with Fig. 4, which also proves the correctness of Algorithm 1 and Algorithm 2.

Fig. 5
figure 5

Frequency deviation of the proposed one-area AoI-aware LFC under different update periods

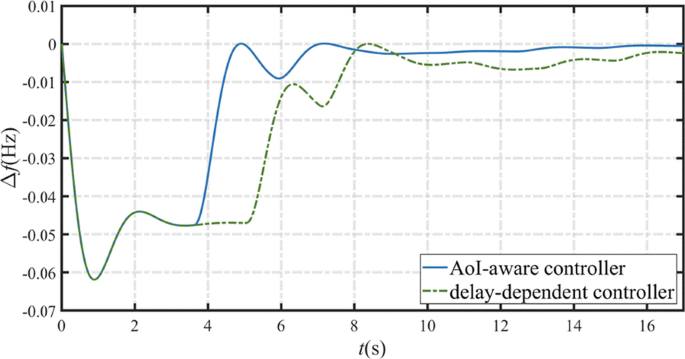

It is clear from Fig. 6 that the frequency deviation Δf with the proposed AoI-aware controller, excels the smaller settling time and overshoots compared to the delay-dependent controller in [9]. The superiority of the proposed controller over the delay-dependent one may attribute to AoI. Long and short update periods lead to a larger average AoI. The AoI-aware controller can improve LFC performance by choosing the optimal update period better than the delay-dependent controller. Therefore, the AoI-aware controller has better performance than the delay-dependent one.

Fig. 6
figure 6

Performance of the proposed AoI-aware controller and delay-dependent controller for ΔPd = 0.02 pu

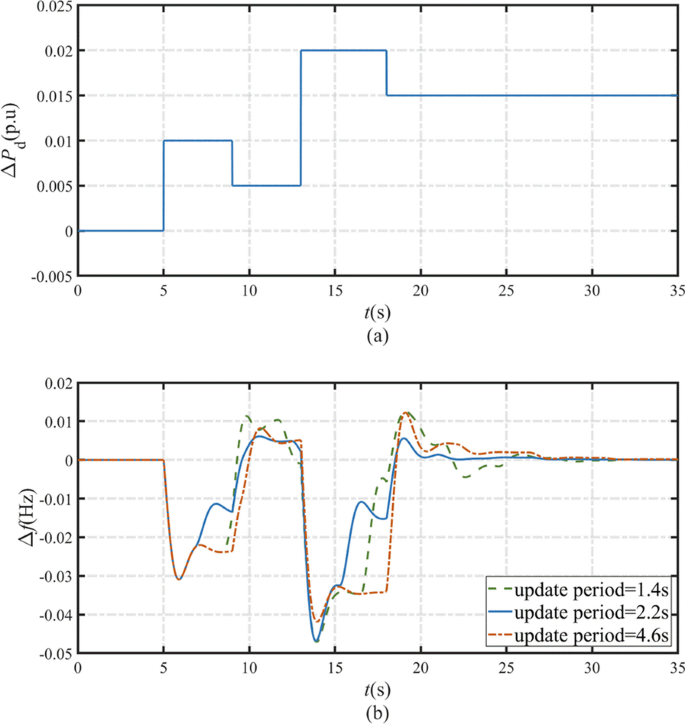

Considering the scenario with random load disturbances depicted in Fig. 7a, it is clear from Fig. 7b that the frequency deviation Δf with the right update period of 2.2 s, excels the smallest settling time and overshoots than the others.

Fig. 7
figure 7

Performance of the proposed one-area AoI-aware LFC under design PI controller for random load disturbances ΔPd. a Random load disturbances. b Frequency deviation Δf

Figure 8 illustrates the frequency responses of the one-area system by the proposed AoI-aware controller and delay-dependent controller. It can be seen that frequency convergence during random load disturbances is quicker by the proposed AoI-aware controller than the delay-dependent controller.

Fig. 8
figure 8

Performance of the one-area system by the proposed AoI-aware controller and the delay-dependent controller with random load changes

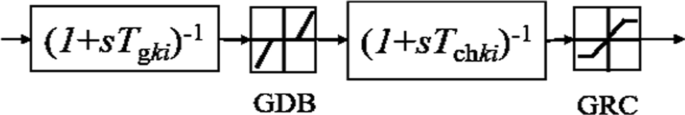

Consider the one-area AoI-aware LFC system in Table 2 with GRC and GDB constraints. GRC is the constraint on the rate of change in the generating power due to physical limitations [31], while GDB is the total magnitude of a sustained speed change within which there is no change in the valve position of the turbine [32]. The nonlinear model of the GRC and GDB shown in Fig. 9 replaces the linear non-reheating steam turbine generator model in Fig. 1. The GRC of the reheat units is set as 3% of the rated power per minute [33] and the GDB is 0.036 Hz [34]. Defining the update period λ = 3.0s, the AoI-aware PI controller gains Kp = 0.500 and KI = 0.336, the delay-dependent controller gains [9] Kp = 0.601, KI = 0.367 and the load disturbance ΔPd = 0.02 pu, Fig. 10 shows the frequency responses of the one-area system with GRC and GDB by the proposed AoI-aware controller and the delay-dependent controller. It is clear from Fig. 10 that frequency deviations are relatively small with the proposed AoI-aware controller. It demonstrates that, when the one-area system considers the GRC and GDB, the frequency with the proposed AoI-aware controller converges faster than the delay-dependent controller.

Fig. 9
figure 9

Nonlinear non-reheating steam turbine generator model with GRC and GDB.

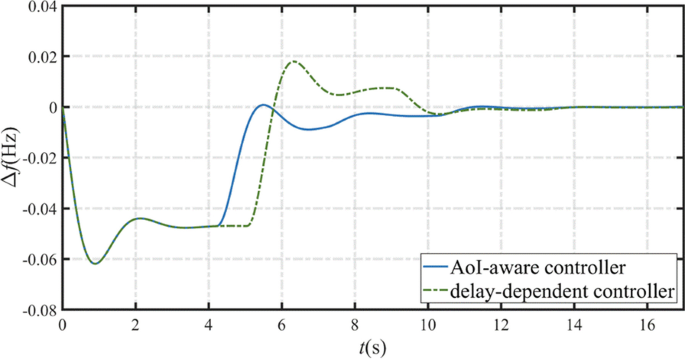

Fig. 10
figure 10

Performance of the one-area system by proposed AoI-aware controller and delay-dependent controller with GRC and GDB.

The one-area AoI-aware LFC system in Table 2 with generator temporary faults is considered, and four identical generators are selected with rated capacity of 100 MVA, i.e., SN1=SN2 = SN3 = SN4 = 100 MVA, and reference power value of 2000 MVA. Assume the load capacity is 100 MVA and the four generators distribute the power generation equally. Under normal operating conditions, each generator produces 25 MVA power output. In this case, it assumes that the first, second, and third generators have temporary faults at 3–8 s, 12–18 s, and 11–15 s, respectively. The update period is λ = 2.2 s, the AoI-aware PI controller gains are Kp = 0.695, KI = 0.375, the delay-dependent controller gains are Kp = 0.698, KI = 0.243, and the load disturbance ΔPd = 0.02 pu.

Figure 11a shows that the frequency deviation Δf with the proposed AoI-aware controller excels the smaller settling time and overshoots compared to the delay-dependent controller with generator temporary faults. Figure 11b, c respectively illustrate the generator mechanical power output deviation under generator temporary faults with the AoI-aware controller and delay-dependent controller. It is clear that the generator mechanical power output deviations with the AoI-aware controller are relatively small.

Fig. 11
figure 11

Performance and generator mechanical power output of the one-area system by proposed AoI-aware controller and delay-dependent controller with generator temporary faults: a Frequency deviation Δf; b Generator mechanical power output with an AoI-aware controller; c Generator mechanical power output deviation with a delay-dependent controller

4.3 Two-area AoI-aware LFC

Considering a two-area AoI-aware LFC system, the system’s parameters are reported in Table 4. It assumes that α1 = α2 = 1, the constant load disturbance ΔPd = 0.02 pu, the observation interval T = 27 s, and l1 = 0, l2 = 2.03, γ = 20. Different AoI-aware PI controller gain parameters Kp1, KI1, and Kp2, KI2 are calculated by following Algorithm 2 as shown in Tables 5 and 6, respectively. Kp1, KI1, and Kp2, KI2 represent the AoI-aware controller gains for area 1 and area 2, respectively. the AoI-aware LFC system performance W is then calculated by Algorithm 1 as shown in Fig. 12.

Table 4 Parameters of the two-area AoI-aware LFC system
Table 5 AoI-aware PI controller parameters of area 1
Table 6 AoI-aware PI controller parameters of area 2

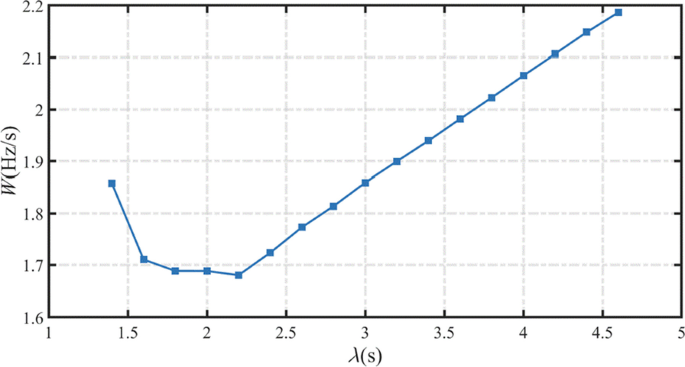

Figure 12 shows the performance index W with different update periods. It shows that system performance is improved as the update period grows from 1.4 to 2.2 s. When the update period increases from 2.2 to 4.6 s, the system frequency performance degrades. Therefore, the update period 2.2 s is the right choice for the system. A long or short update period makes the system performance index W worse. The results are similar to those in Fig. 4.

Fig. 12
figure 12

Performance index W of the two-area AoI-aware LFC system under different update periods when ΔPd = 0.02 pu

To show the superiority of the right update period on improving the system performance, Fig. 13 compares the performances with different update periods and same load disturbance in the two-area system. It can be seen from Fig. 13a that when area 1 has the right update period of 2.2 s, the frequency converges faster with less fluctuation. For area 2, similar results can be seen from Fig. 13b. The above results are consistent with Fig. 12, proving the correctness of Algorithm 1 and Algorithm 2.

Fig. 13
figure 13

Performance of the proposed two-area AoI-aware LFC under different update periods for ΔPd=0.02 pu: a Area 1 frequency deviation; b Area 2 frequency deviation

Figure 14 illustrates the superiority of the AoI-aware controller to stabilize the two-area power system with load disturbance. It can be seen from Fig. 14a that the AoI-aware PI controller stabilizes the frequency of area 1 in 15 s. However, the delay-dependent controller stabilizes the system in around 25 s. A similar conclusion can be seen for area 2 from Fig. 14b. λ = 2.2 s is the right update period for the two-area system. The AoI-aware controller can improve LFC performance through choosing the right update period but the delay-dependent controller is unable to. Therefore, the AoI-aware controller has better performance than the delay-dependent one.

Fig. 14
figure 14

Performance of the two-area system by proposed AoI-aware controller and delay-dependent controller in [9] for ΔPd = 0.02 pu: a Area 1; b Area 2

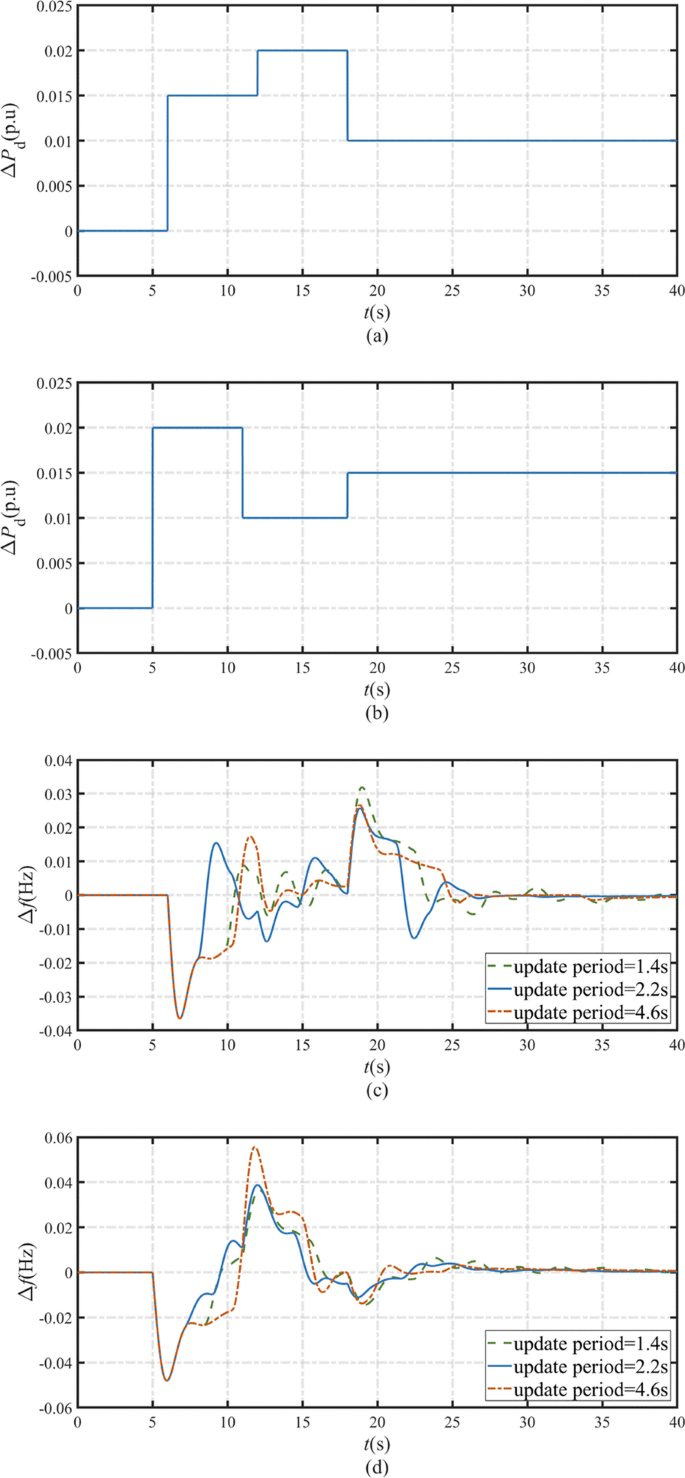

Considering the scenario with random load disturbances of area 1 and area 2, the results are depicted in Fig. 15a, b, respectively. Additionally, it can be seen from Fig. 15c that the AoI-aware PI controller in area 1 with the optimal update period of 2.2 s results in faster convergence and less fluctuation in the frequency. Figure 15c shows that with the random load disturbance, the performance of the area 1 system can be improved by using the right update period. A similar conclusion for area 2 can be seen from Fig. 15d.

Fig. 15
figure 15

Performance of the proposed two-area AoI-aware LFC under different update periods for random load disturbance: a Random load disturbance of area 1; b Random load disturbance of area 2; c Area 1 frequency deviation; (d) Area 2 frequency deviation Δf

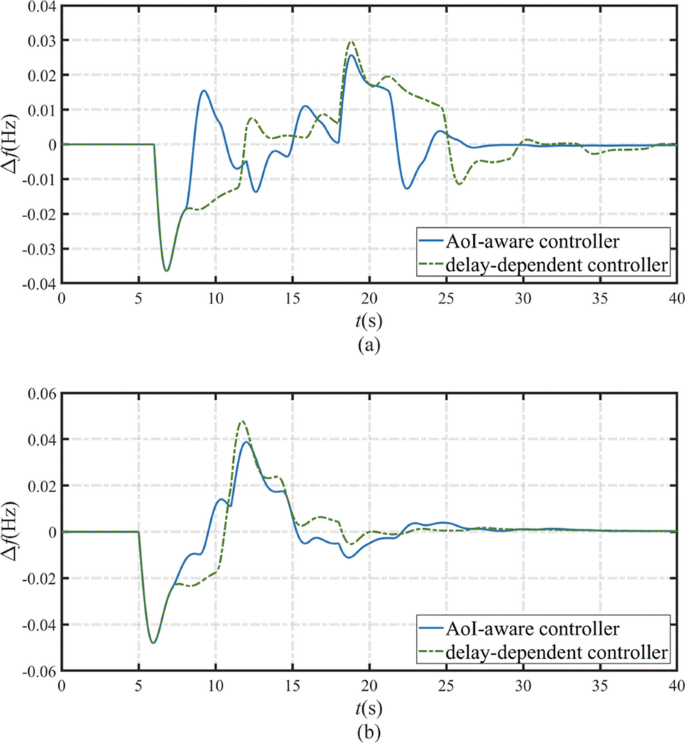

Figure 16 shows the abilities of the proposed AoI-aware controller and delay-dependent controller to stabilize the two-area power system. It has random load disturbances shown in Fig. 15a. It can be seen from Fig. 16a that frequency convergence is quicker by using the proposed AoI-aware controller for area (1) Additionally, Fig. 16b demonstrates that AoI-aware LFC response is faster in area (2) Above all, the AoI-aware controller shows superiority in stabilizing the power system than the delay-dependent controller.

Fig. 16
figure 16

Performance of the two-area system by proposed AoI-aware controller and delay-dependent controller for random load disturbance: a Area 1; b Area 2

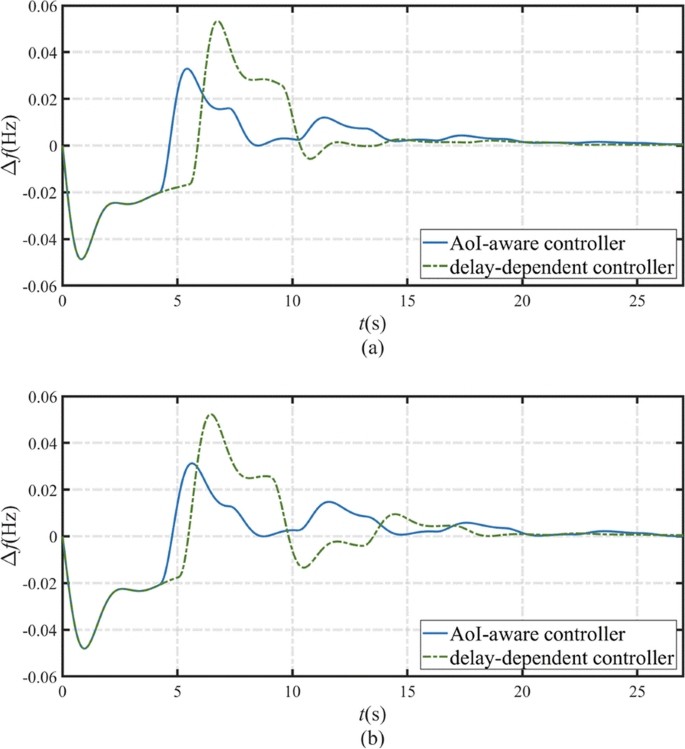

The two-area AoI-aware LFC system in Table 4 with GRC and GDB constraints is now considered. Set the GRC of the reheat units as 3% of the rated power per minute [33] and the GDB as 0.036 Hz [34]. Define the update period λ1 = λ2 = 3.0 s, the area 1 AoI-aware PI controller gains Kp1 = 0.496, KI1 = 0.209, the delay-dependent controller gains Kp1 = 0.542, KI1 = 0.251, the area 2 AoI-aware PI controller gains Kp2 = 0.492, KI2 = 0.217, the delay-dependent controller gains Kp2 = 0.540, KI2 = 0.253 and the load disturbance ΔPd = 0.02 pu. Figure 17 shows the superiority of the proposed AoI-aware controller compared with the delay-dependent controller in stabilizing the two-area power system with GRC and GDB. It can be seen from Fig. 17a that frequency convergence is quicker by using the proposed AoI-aware controller for area 1, while Fig. 17b demonstrates that LFC with an AoI-aware controller response is also faster in area 2.

Fig. 17
figure 17

Performance of the proposed two-area AoI-aware LFC under different update periods for random load disturbance: a Area 1 frequency deviation; b Area 2 frequency deviation

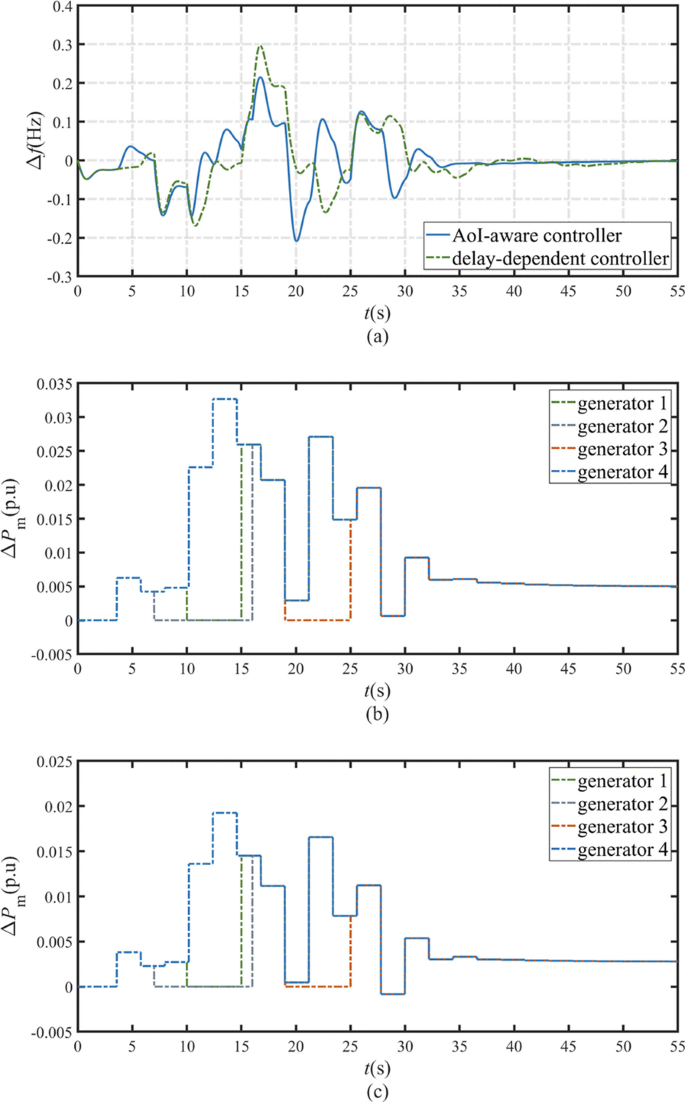

The two-area AoI-aware LFC system in Table 4 with generator temporary faults is considered. Each area elects four identical generators with a rated capacity of 100 MVA, and the reference power value of this two-area system is 2000 MVA. Assume the load capacity is 100 MVA and the four generators in each area distribute the power generation equally. In area 1, the first, second, and third generators have temporary faults at 10–15 s, 7–16 s, and 9–13 s, respectively. Additionally, with the update period λ = 2.2 s, the AoI-aware PI controller gains Kp1 = 0.610, KI1 = 0.242, the delay-dependent controller gains Kp1 = 0.502, KI1 = 0.136, and the load disturbance ΔPd = 0.02 pu, Fig. 18a shows area 1 frequency deviations with the proposed AoI-aware controller and the delay-dependent controller under generator temporary faults. Figure 18b, c respectively illustrate area 1 generator mechanical power output deviations under generator temporary faults with the AoI-aware controller and the delay-dependent controller. As seen, Fig. 18 clearly illustrates the superiority of the AoI-aware controller in stabilizing the area 1 system with generator temporary faults.

Fig. 18
figure 18

Area 1 performance and generator mechanical power output of the one-area system by proposed AoI-aware controller and delay-dependent controller with generator temporary faults: a Frequency deviation; b Generator mechanical power output with an AoI-aware controller; c Generator mechanical power output deviation with a delay-dependent controller

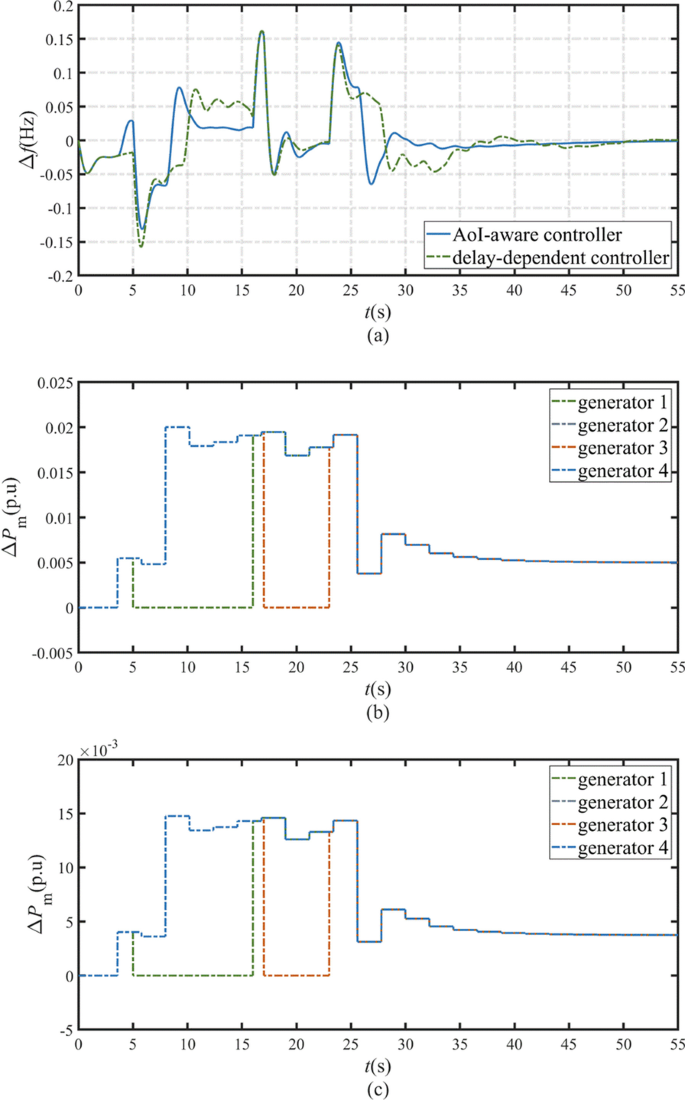

In area 2, the first and third generators have temporary faults at 5–16 s and 17–23 s, respectively. The update period is λ = 2.2 s, the AoI-aware PI controller gains are Kp2 = 0.773, KI2=0.245, the delay-dependent controller gains are Kp2 = 0.440, KI2 = 0.181, and the load disturbance is ΔPd = 0.02 pu. Figure 19 illustrates the superiority of the proposed AoI-aware controller compared with the delay-dependent controller in stabilizing the area 2 system. The area 2 generator mechanical power output deviations under generator temporary faults with an AoI-aware controller and a delay-dependent controller are respectively shown in Fig. 19b, c. It can be seen from Fig. 19a that frequency convergence is quicker by using the proposed AoI-aware controller for area 2.

Fig. 19
figure 19

Area 2’s performance and generator mechanical power output of the one-area system by the proposed AoI-aware controller and the delay-dependent controller with generator temporary faults. a Frequency deviation b Generator mechanical power output with an AoI-aware controller c Generator mechanical power output deviation with a delay-dependent controller

5 Conclusion

This paper designs an AoI-aware PI-type controller to optimize LFC performance. AoI is first applied to characterize information staleness, and in comparison with communication delay, AoI contains control factors of the update process and provides the communication system model controllability. Compared with the delay-dependent controller, the AoI-aware controller greatly improves the LFC system performance. Different AoI-aware PI-type controllers are then designed for different update periods according to EDR based on the AoI-aware LFC model. A right AoI-aware PI-type controller and update period are selected according to the degree of frequency fluctuation of the power system. The case studies show the effectiveness of the proposed AoI-aware PI-type controller. When the LFC system has the right AoI-aware PI-type controller and update period, high performance can be achieved. It also illustrates the superiority of the proposed AoI-aware controller over the delay-dependent controller in stabilizing the LFC system. In the future, redesigning a controller based on the AoI-aware LFC model with the GRC and the GDB may be considered by chaos-based firefly algorithm or firefly algorithm.

Availability of data and materials

Data and materials are obtained simulation program. This simulation program is MATLAB.

References

  1. Shayeghi, H., Shayanfar, H. A., & Jalili, A. (2009). Load frequency control strategies: A state-of-the-art survey for the researcher. Energy Conversion and Management, 50(2), 344–353.

    Article  MATH  Google Scholar

  2. Pandey, S. K., Mohanty, S. R., & Kishor, N. (2013). A literature survey on load–frequency control for conventional and distribution generation power systems. Renewable and Sustainable Energy Reviews, 25(1), 318–334.

    Article  Google Scholar

  3. Kundur, P., Balu, N. J., & Lauby, M. G. (1994). Power system stability and control. New York: McGraw Hill Press.

    Google Scholar

  4. Bevrani, H. (2019). Frequency response characteristics and dynamic performance. In Robust power system frequency control (pp. 49–59). Springer Press. https://doi.org/10.1007/978-3-319-07278-4_3

  5. Singh, V. P., Kishor, N., & Samuel, P. (2016). Load frequency control with communication topology changes in smart grid. IEEE Transactions on Industrial Informatics, 12(5), 1943–1952.

    Article  Google Scholar

  6. Bhowmik, S., Tomsovic, K., & Bose, A. (2004). Communication models for third party load frequency control. IEEE Transactions on Power Systems, 19(1), 543–548.

    Article  Google Scholar

  7. Yu, X., & Tomsovic, K. (2004). Application of linear matrix inequalities for load frequency control with communication delays. IEEE Transactions on Power Systems, 19(3), 1508–1515.

    Article  Google Scholar

  8. Ojaghi, P., & Rahmani, M. (2017). LMI-based robust predictive load frequency control for power systems with communication delays. IEEE Transactions on Power Systems, 32(5), 4091–4100.

    Article  Google Scholar

  9. Shangguan, X. C. (2021). Robust load frequency control for power system considering transmission delay and sampling period. IEEE Transactions on Industrial Informatics, 17(8), 5292–5303.

    Article  Google Scholar

  10. Jiang, L., Yao, W., Wu, Q., Wen, J., & Cheng, S. (2012). Delay-dependent stability for load frequency control with constant and time-varying delays. IEEE Transactions on Power Systems, 27(2), 932–941.

    Article  Google Scholar

  11. Zhang, C. K., Jiang, L., Wu, Q., He, Y., & Wu, M. (2013). Delay-dependent robust load frequency control for time delay power systems. IEEE Transactions on Power Systems, 28(3), 2192–2201

    Article  Google Scholar

  12. Wang, X., Chen, C., He, J., Zhu, S., & Guan, X. (2021). AoI-aware control and communication co-design for industrial IoT systems. IEEE Internet of Things Journal, 8(10), 8464–8473. https://doi.org/10.1109/JIOT.2020.3046742

    Article  Google Scholar

  13. Yang, F., He, J., & Wang, D. (2018). New stability criteria of delayed load frequency control systems via infinite-series-based inequality. IEEE Transactions on Industrial Informatics, 14(1), 231–240.

    Article  Google Scholar

  14. Jin, L., Zhang, C. K., He, Y. (2019). Delay-dependent stability analysis of multi-area load frequency control with enhanced accuracy and computation efficiency. IEEE Transactions on Power Systems, 34(5), 3687–3696.

    Article  Google Scholar

  15. Yang, T., Zhang, Y., Li, W., & Zomaya, A. Y. (2020). Decentralized networked load frequency control in interconnected power systems based on stochastic jump system theory. IEEE Trans. Smart Grid, 11(5), 4427–4439.

    Article  Google Scholar

  16. Liu, F., Li, Y., & Cao, Y. (2016) A two-layer active disturbance rejection controller design for load frequency control of interconnected power system. IEEE Transactions on Power Systems, 31(4), 3320–3321.

    Article  Google Scholar

  17. Liu, S., & Liu, P. X. (2018). Distributed model-based control and scheduling for load frequency regulation of smart grids over limited bandwidth networks. IEEE Transactions on Industrial Informatics, 14(5), 1814–1823.

    Article  Google Scholar

  18. Singh, V. P., Kishor, N., & Samuel, P. (2017). Improved load frequency control of power system using LMI based PID approach. Journal of the Franklin Institute, 354(15), 6805–6830.

    Article  MathSciNet  MATH  Google Scholar

  19. Kaul, S., Yates, R., & Gruteser, M. (2012). Real-time status: How often should one update? In Proceedings of the 2012 proceedings IEEE INFOCOM (pp. 2731–2735). https://doi.org/10.1109/INFCOM.2012.6195689

  20. Talak, R., Karaman, S., & Modiano, E. (2017). Minimizing age-of-information in multi-hop wireless networks. In Proceedings of the 2017 55th annual Allerton conference on communication, control, and computing (Allerton) (pp. 486–493). https://doi.org/10.1109/ALLERTON.2017.8262777

  21. Kaul, S., Gruteser, M., Rai, V., & Kenney, J. (2011). Minimizing age of information in vehicular networks. In 2011 8th annual IEEE communications society conference on sensor, mesh and ad-hoc communications and networks (pp. 350–358). https://doi.org/10.1109/SAHCN.2011.5984917

  22. Liao, K., & Xu, Y. (2018). A robust load frequency control scheme for power systems based on second-order sliding mode and extended disturbance observer. IEEE Transactions on Industrial Informatics, 14(7), 3076–3086.

    Article  Google Scholar

  23. Shang-Guan, X. C., He, Y., & Zhang, C. K. (2020). Sampled-data based discrete and fast load frequency control for power systems with wind power. Applied Energy, 259, 114202.

    Article  Google Scholar

  24. Lin, C., et al. (2023). Event-triggered load frequency control based on age-of-information. IEEE Transactions on Power Systems, 38(3), 2348–2361.

    Article  Google Scholar

  25. Hauser, C. H., Bakken, D. E., & Bose, A. (2005). A failure to communicate next-generation communication requirements, technologies, and architecture for the electric power grid. IEEE Power & Energy Magazine, 3(2), 47–55.

    Article  Google Scholar

  26. Yates, R. D. (2015). Lazy is timely: Status updates by an energy harvesting source. In 2015 IEEE international symposium on information theory (ISIT) (pp. 3008–3012). https://doi.org/10.1109/SAHCN.2011.5984917

  27. Zhang, C. K., Jiang, L., Wu, Q., He, Y., & Wu, M. (2013). Further results on delay-dependent stability of multi-area load frequency control. IEEE Transactions on Power Systems, 28(4), 4465–4474.

    Article  Google Scholar

  28. Inoue, Y., Masuyama, H., Takine, T., & Tanaka, T. (2017). The stationary distribution of the age of information in FCFS single-server queues. In 2017 IEEE international symposium on information theory (ISIT) (pp. 571–575). https://doi.org/10.1109/ISIT.2017.8006592

  29. Jiao, D., Lin, C., Xie, K., Hu, B., Shao, C., & Gao, S. (2022). Stability analysis of load frequency control based on age-of-information. In 2022 IEEE 5th international electrical and energy conference (CIEEC) (pp. 2103–2108). https://doi.org/10.1109/CIEEC54735.2022.9846373

  30. Peng, C., Zhang, J., & Yan, H. (2018). Adaptive event-triggering H∞ load frequency control for network-based power systems. IEEE Transactions on Industrial Electronics, 65(2), 1685–1694.

    Article  Google Scholar

  31. Bevrani, H., & Hiyama, T. (2011). Intelligent automatic generation control. Boca Raton: CRC Press. https://doi.org/10.1201/b10869

    Book  Google Scholar

  32. Zare, K., Hagh, M. T., & Morsali, J. (2015). Effective oscillation damping of an interconnected multi-source power system with automatic generation control and TCSC. International Journal of Electrical Power & Energy Systems, 65, 220–230.

    Article  Google Scholar

  33. Golpîra, H. (2011). Application of GA optimization for automatic generation control design in an interconnected power system. Energy Conversion and Management, 52(5), 2247–2255.

    Article  Google Scholar

  34. IEEE Recommended Practice for Functional Performance Characteristics of Control Systems for Steam Turbine-Generator Units. In IEEE Std 122–1985 (Vol. 54, pp.1–26) (1985. https://doi.org/10.1109/IEEESTD.1992.101082

Download references

Acknowledgements

This research was partially funded by grants from the National Natural Science Foundation of China under grant 52107072, China Postdoctoral Science Foundation under grant 2022T150768 and 2021M693711.

Funding

This work is carried out without the support of any funding agency.

Author information

Authors and Affiliations

Authors

Contributions

Conceptualization: DJ, XZJ and CRL. Methodology: DJ and CRL. Validation: DJ and CRL. Formal analysis: DJ, CRL, and CZS. Writing—original draft: DJ. Writing—review and editing: DJ, CRL, and CZS. Supervision: KGX and BH. All the authors read and approved the final manuscript.

Corresponding author

Correspondence to Changzheng Shao.

Ethics declarations

Competing interests

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Jiao, D., Shao, C., Hu, B. et al. Age-of-information-aware PI controller for load frequency control. Prot Control Mod Power Syst 8, 39 (2023). https://doi.org/10.1186/s41601-023-00311-z

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI: https://doi.org/10.1186/s41601-023-00311-z

Keywords
