Power system voltage instability risk mitigation via emergency demand response-based whale optimization algorithm

Protection and Control of Modern Power Systems volume 4, Article number: 25 (2019) Cite this article

Abstract

In recent years, due to the economic and environmental issues, modern power systems often operate proximately to the technical restraints enlarging the probable level of instability risks. Hence, efficient methods for voltage instability prevention are of great importance to power system companies to avoid the risk of large blackouts. In this paper, an event-driven emergency demand response (EEDR) strategy based on whale optimization algorithm (WOA) is proposed to effectively improve system voltage stability. The main objective of the proposed EEDR approach is to maintain voltage stability margin (VSM) in an acceptable range during emergency situations by driving the operating condition of the power system away from the insecure points. The optimal locations and amounts of load reductions have been determined using WOA algorithm. To test the feasibility and the efficiency of the proposed method, simulation studies are carried out on the IEEE 14-bus and real Algerian 114-bus power systems.

Introduction

In recent years, serious power grid blackouts have occurred throughout the world bringing with them important economic losses and affect the lives of residents. Voltage instability incidents have been identified as contributing factors in several recent worldwide blackouts [1]. Therefore, developing efficient countermeasure techniques for the prevention of voltage collapses has attracted important aspects of power system companies and researchers. Over the past years, several emergency controls have been adopted to protect the system against voltage collapses. Adjustment of Load Tap Changer (LTC) transformer taps is the well-known emergency action for containing voltage instability. Different emergency schemes may be applied using the LTCs. One of the popular forms of emergency actions using LTCs is tap blocking, which is an indirect way of load reduction [2]. Otomega et al. [3] proposed an LTC control logic strategy that can be used in emergency voltage conditions. The principle of the proposed tap-reversing strategy is to inverse the tap actions once the power system voltages fall below some threshold. Vournas and Karystianos [4] discussed how tap-blocking and tap-reversing based LTC techniques can avoid an approaching voltage collapse, as well as the advantages and drawbacks of these techniques. Another type of LTCs was the voltage set-point reduction, which is based on the lowering of the reference voltage to improve voltage stability [5].

The generation rescheduling was another technique to prevent voltage collapse. Several approaches reported in the literature concerning the implementation of generation rescheduling to avoid voltage instability of a power system [6,7,8,9,10,11,12,13,14,15]. Load shedding (LS) technique was also identified as an effective emergency action against voltage collapse because it results in an instantaneous voltage stability enhancement. However, due to the disturbance affected the consumers that have been shed; this action must be the latest protection applied method. LS techniques are generally divided into three main types i.e., conventional, adaptive and computational intelligence-based LS [16]. Conventional load shedding techniques are of two types under frequency load shedding (UFLS) and under-voltage load shedding (UVLS). UFLS involve shedding determined amounts of the load if the system frequency falls below its specified range [16]. In the same manner, UVLS is applied by power utilities to avoid a risk of voltage collapse and restore voltage to its nominal value [17]. The major drawback of the conventional LS techniques is that are limited by their incapability to deliver optimum LS [18]. Adaptive LS is another type of LS techniques. It is based on the use of a power swing equation to shed the desired amount of load as reported in [19]. Albeit the Adaptive LS techniques improve the reliability of conventional LS, they suffer from un-optimum LS due to the variations in the rate of change of frequency.

The application of computational intelligence techniques was another alternative for solving LS problem. The benefits of the application of computational intelligence in LS over the conventional ones are outlined in [16]. The ANN [20, 21], Adaptive neuro-fuzzy inference system (ANFIS) [22, 23] and decision tree technique [24] were applied to shed load of the power system. Meta-heuristic optimization algorithms have some applications in LS problem. Among the implemented meta-heuristic methods to minimize the LS, GA-based method [25], differential evolution (DE) algorithm [26], glowworm swarm optimization (GSO) algorithm [27], harmony search algorithm (HSA) [28], PSO algorithm [29] and PSO-simulating annulling (PSO − SA) optimization technique [30].

In recent years, under the paradigm of the smart grid, in which the major operations are executed in a coordinated and efficient manner, the focus for solving power system problems has moved more from the supply-side to the demand-side. Such concept is known as demand response (DR), which the main purpose is the adjustment of consumer demand to increase efficiency and reliability of the power system [31]. Emergency demand response (EDR) is one of the most widely used DR programs. It is called upon when power generation is anticipated to experience a shortfall or during the contingency situations [32]. In EDR programs, the EDR participants are contractually obligated to provide a set amount of capacity and they receive payments for being available and face financial penalties for non-attendance. Several works are reported in the literature on the implementation of EDR programs [33,34,35,36,37,38,39]. However, the application of such programs to improve the power system security has not been completely addressed. The only work –as far as the author knows– discussed the use of EDR in power system security enhancement is that of Wang et al. [40]. In this work, an event-driven EDR strategy is proposed to improve the operating reserves of the power system under credible contingencies. A multistage optimization technique based on segmentation of the original nonlinear problem, associated with EDR program, into a series of linear optimization problems is proposed. However, this procedure needs to be repeated several times until a required security margin is achieved, which is a time-consuming task. Another disadvantage of the proposed strategy is that it considers all loads in the system as EDR participants which results in a high cost of implementation of such programs. Thus this paper uses the recently developed optimization algorithm named whale optimization algorithm (WOA) to compute the required load reduction, during emergency conditions, and then distribute this amount, optimally, between customers participating in the EDR program. Consequently, some important contributions of this work can be listed as follows:

  • Development of an Event-driven Emergency Demand Response (EEDR) approach based WOA optimization algorithm to avoid a risk of large blackouts during emergency situations.

  • Application of WOA as a robust optimization method to find the appropriate EEDR participants.

  • Consideration of voltage stability margin in the proposed EEDR strategy.

The proposed approach is investigated on IEEE 14-bus and real Algerian 114-bus power systems showing promising results and proving their practical efficiency to ensure system stability under critical situations.

Problem formulation

One of the serious challenges for power systems is to maintain stable operations, especially during emergency situations. Event-driven based Emergency Demand Response (EEDR) program is one of the solutions that used when the security of power systems is at risk. To implement such programs, the following problems need to be solved: (i) The selection of the appropriate EEDR participants. (ii) For each serious event, the optimal amount of the demand reduction of each participant must be found in order to minimize the total cost.

Selection of load buses for EEDR program

The selection of load buses for EEDR involves the determination of the suitable locations for load reduction. An effective way to find suitable locations is to identify the load buses having a higher impact on voltage stability. This can be mathematically formulated as a non-linear constrained optimization problem, where the main goal is the determination of the optimal location for reactive power support. Accordingly, the objective function can be defined as below:

$$ \min\ \left({F}_c+{\lambda}_P{P}_{loss}+{\lambda}_L\left(1/ VS{I}_{\mathrm{min}}\right)\right) $$
(1)

where Fc is the cost of the entire power system generation and it can be expressed as follows.

$$ {F}_c=\sum \limits_{i=1}^{N_g}{a}_i{P}_{gi}^2+{b}_i{P}_{gi}+{c}_i\left(\$/h\right) $$
(2)

In this equation, Pgi is the real power produced by the ith generator; ai, bi and ci are the fuel cost coefficients of the ith generator; Ng is the number of generators in the system; λP and λL are scaling factors to balance between the objective function values and to avoid the dominance of an objective over another. The values of this factors are chosen as 40 and 100, respectively, same as in [41].

Ploss represents the real power losses and it is given by the following equation.

$$ {P}_{loss}=\sum \limits_{i=1}^{N_b}\sum \limits_{j=1,j\ne i}^{N_b}\left[{V}_i^2+{V}_j^2-2{V}_i{V}_j\cos \left({\theta}_i-{\theta}_j\right)\right]{Y}_{ij}\cos {\varphi}_{ij} $$
(3)

where Nb is the number of transmission lines; Vi, Vj, θi and θj are the voltage magnitudes and the phase angles of the ith and jth buses, respectively; Yij and φij are the magnitudes and the phase angles of the lines admittance, respectively.

VSImin is the minimum value of Voltage Stability Index (VSI) [42]. This index is one of the most suitable indices due to its mathematical formulation which is derived considering all of the system margins (real, reactive and apparent power margins) [43]. This index is formulated as follows [42]:

$$ VSI=\min \left(\frac{P_{\mathrm{max}}-{P}_r}{P_{\mathrm{max}}},\frac{Q_{\mathrm{max}}-{Q}_r}{Q_{\mathrm{max}}},\frac{S_{\mathrm{max}}-{S}_r}{S_{\mathrm{max}}}\right) $$
(4)

Where

$$ {P}_{\mathrm{max}}=\sqrt{\frac{V_s^4}{4X}-{Q}_r\frac{V_s^2}{X}} $$
(5)
$$ {Q}_{\mathrm{max}}=\frac{V_s^2}{4X}-\frac{P_r^2X}{V_s^2} $$
(6)
$$ {S}_{\mathrm{max}}=\frac{\left(1-\sin \left(\theta \right)\right){V}_s^2}{2\cos {\left(\theta \right)}^2X} $$
(7)

where Pmax, Qmax, and Smax are, respectively, the maximum transferred real, reactive and apparent powers; Vs and Vr are, respectively, the sending and the receiving end voltages; X is the line reactance; θ is the load power angle.

By using VSI, stability level of all the transmission lines can be measured and the line with the minimum value of VSI (VSImin) is considered as the most sensitive line to the voltage collapse [44, 45].

The objective function in (1) is subject to the equality and inequality constraints described by the following equations.

Equality constraints: The equality constraints represent the load flow equations, which are given below:

$$ \Big\{{\displaystyle \begin{array}{l}{P}_{gi}-{P}_{di}-{V}_i\sum \limits_{j=1}^{N_{bus}}{V}_j\left({g}_{ij}\cos {\delta}_{ij}+{b}_{ij}\sin {\delta}_{ij}\right)=0\\ {}{Q}_{gi}-{Q}_{di}-{V}_i\sum \limits_{j=1}^{N_{bus}}{V}_j\left({g}_{ij}\sin {\delta}_{ij}-{b}_{ij}\cos {\delta}_{ij}\right)=0\end{array}} $$
(8)

Inequality constraints: represents generator, load bus and transmission line constraints as given below:

Generator constraints:

$$ \Big\{{\displaystyle \begin{array}{l}{V}_{gi}^{\mathrm{min}}\le {V}_{gi}\le {V}_{gi}^{\mathrm{max}},\kern2em i=1,2,...,{N}_g\\ {}{P}_{gi}^{\mathrm{min}}\le {P}_{gi}\le {P}_{gi}^{\mathrm{max}},\kern2em i=1,2,...,{N}_g\\ {}{Q}_{gi}^{\mathrm{min}}\le {Q}_{gi}\le {Q}_{gi}^{\mathrm{max}},\kern2em i=1,2,...,{N}_g\end{array}} $$
(9)

Load bus constraints:

$$ {V}_{li}^{\mathrm{min}}\le {V}_{li}\le {V}_{li}^{\mathrm{max}},\kern2em i=1,2,...,{N}_{lb} $$
(10)

Transmission line constraints:

$$ {S}_{li}\le {S}_{li}^{\mathrm{max}},\kern5.25em i=1,2,...,{N}_b $$
(11)

where Nbus is the number of buses; Ng is the number of generator buses; Pdi and Qdi are the real and reactive load on the ith bus, respectively; gij, bij and δij are, respectively, the conductance, the admittance and the phase difference of voltages between the ith and jth bus. Vgimin and Vgimax are the minimum and maximum voltage limits; Vli is the load voltage of ith load bus; Sli is the apparent power flow of ith branch and Nlb is the number of load buses.

Determination of demand reduction amount

During emergency situations, emergency demand response coordinates many large energy consumers (e.g., large commercial and industrial sectors) for demand reduction. For each critical event, it must minimize the amount of demand reduction of each participant to the achieve a desired security margin with a minimum cost of demand reduction. These requirements lead to a nonlinear optimization problem in which the optimization goal is to minimize the demand reduction cost and the constraint is that the voltage stability margin of the power system after the demand reduction must be larger or equal to the desired one. Other constraints, such as power flow equations and safety operation constraints are also considered. Combining the objective function and all these constraints, the nonlinear optimization problem can be defined as presented below.

$$ \min \sum \limits_{i=1}^m{C}_i $$
(12)

Subjected to the following constraints:

  • Power system constraints described by (8–15);

  • Available amounts of demand participants;

  • Voltage stability margin.

where Ci is the cost for reducing demand at load bus i; m is the number of available participants.

The cost for reducing demand is represented as follows [40]:

$$ {C}_i=50+5{\left(\frac{\varDelta {S}_i}{S_i}\right)}^2,\kern1.75em i=1,2,3,...,m $$
(13)

where Si and ΔSi are, respectively, the load and the total load reduction at the selected location i. The unit-price for each load is assumed to be 50 $/hr. at the base case and changes with a second-order polynomial function as shown in (13).

Proposed EEDR-based WOA algorithm

Basic principles of WOA algorithm

Whale Optimization Algorithm (WOA) is a novel bio-inspired optimization technique proposed by Mirjalili and Lewis [46]. It is based on the simulation of the special hunting method of one of the biggest baleen whales called humpback whales. Humpback whales feed a small prey as krill, herrings, and other small fishes near the surface, their demeanour to find and hunt the prey is called “bubble-net feeding”. The humpback whales dive down and then start to create a ring of bubbles to encircle the fishes, which are too frightened to pass through the bubbles as shown in Fig. 1, in meantime the whales swim upward to the surface through the bubble net and swallowing a huge number of fishes in one swig. Bubble-net feeding behaviour is mathematically modelled as follows.

Fig. 1
figure1

Humpback whales bubble-net feeding technique

Full size image

Searching for prey

Humpback whales search for prey randomly according to the position of each other. The process of searching is mathematically modelled as follows:

$$ D=\mid C.{X}_{rand}-X\mid $$
(14)
$$ X\left(t+1\right)={X}_{rand}-A.D $$
(15)

where t indicates the current iteration, X is the position vector, Xrand is a random position vector (a random whale) chosen from the current population. A and C are coefficient vectors calculated as follows:

$$ A=2a.r-a $$
(16)
$$ C=2r $$
(17)

where a is linearly decremented from 2 to 0 along with the iterations, r is a random vector in [0, 1]. Therefore, A is used with the random values |A| > 1 in order to guarantee the global search for the WOA algorithm. The position of every search agent (whale) is updated based on the random selection of search agent [46].

Prey encircling technique

After locating the prey, humpback whales circle this prey to start hunting them. The WOA presumes that the actual best candidate solution is the target prey or is close to the optimum. Accordingly, the overall search agents will renew their new positions towards the best-determined search agent. This demeanour is represented as follows:

$$ D=\mid C.X\ast (t)-X(t)\mid $$
(18)
$$ X\left(t+1\right)=X\ast (t)-A.D $$
(19)

where X* is the position vector of the best solution obtained so far. Figure 2 illustrates the rationale behind (19). The position (X, Y) of a search agent can be updated, according to the position of the current best record (X*, Y*), by adjusting the values of A and C vectors.

Fig. 2
figure2

The principle of prey encircling technique used by humpback whales

Full size image

Bubble-net attacking technique

As aforementioned above, after locating the prey and encircling them, humpback whales start the hunting step using the bubble-net mechanism. Two approaches to model the bubble-net demeanor of humpback whales are proposed. The first one is the shrinking encircling technique. This behavior is achieved by decrementing the value of a in (16), consequently, the value of A is also decreased by a. Figure 3 shows the possible positions from (X, Y) towards (X*, Y*) that can be achieved by 0 ≤ A ≤ 1. The second one is the spiral updating position. In this approach the distance between the whale located at (X, Y) and the prey located at (X*, Y*) is first calculated (see Fig. 4), then the spiral equation to imitate the helix-shaped movement of humpback whales is formed as follows:

$$ X\left(t+1\right)={D}^{\hbox{'}}.{e}^{bl}.\cos \left(2\pi l\right)+X\ast (t) $$
(20)
Fig. 3
figure3

Shrinking encircling technique

Full size image

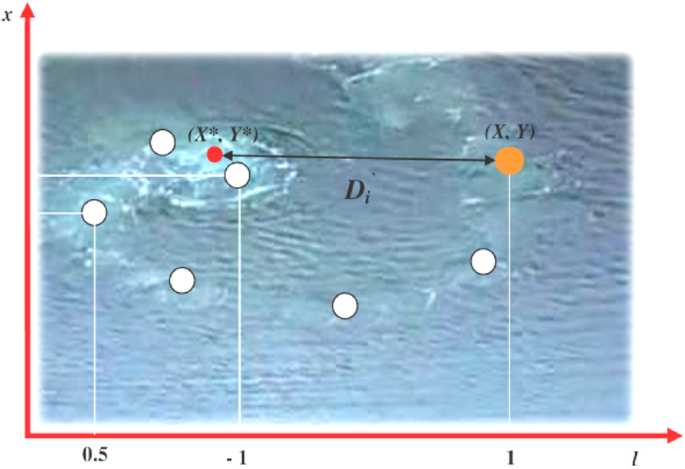

Fig. 4
figure4

Spiral updating position

Full size image

Where:

$$ {D}^{\hbox{'}}=\mid {X}^{\ast }(t)-X(t)\mid $$
(21)

D’ indicates the distance between the ith whale and the prey (best solution obtained so far), b is a constant that determines the form of the logarithmic spiral, l is a randomly chosen number in the range [− 1, 1]. The humpback whales swim around the prey within a shrinking circle and along a spiral path at the same time. To model this simultaneous behavior, we suppose that there is a probability of 50% to choose the technique that will be used to update the position of whales during optimization. The mathematical model is as follows:

$$ X\left(t+1\right)=\Big\{{\displaystyle \begin{array}{l}X\ast (t)-A.D\kern5em \mathrm{if}\ p<0.5\\ {}{D}^{\hbox{'}}.{e}^{bl}.\cos \left(2\pi l\right)+X\ast (t)\kern0.75em \mathrm{if}\ p\ge 0.5\end{array}} $$
(22)

Implementation of WOA in EEDR program

In this sub-section, we discussed the detailed procedure to apply WOA based method in EEDR program. The proposed EEDR strategy has the objective to maintain the voltage stability margin (VSM) in an acceptable range and it activates when VSM leaves their permitted ranges during the emergency conditions caused by critical contingencies. The framework of the proposed strategy is shown in Fig. 5 with the following three main steps:

  1. (a)

    Computation of VSM.

  2. (b)

    Selection of suitable load buses for EEDR program.

  3. (c)

    Determination of demand reduction amount of each participant.

Fig. 5
figure5

Framework of the proposed EEDR strategy

Full size image

The first step involves the calculation of the VSI defined by (4). By computing this voltage stability index, we can estimate the VSM of the system and thereby convenient countermeasure may be taken if the index indicates a poor VSM. In the second step, WOA optimization algorithm is used to solve the problem of determination of suitable locations for load reduction represented by (1). Assuming that all the load buses in the power system can participate in the EEDR program, the procedure used to find the appropriate locations, using WOA algorithm, is summarized in the flowchart of Fig. 6. In the third step, the WOA algorithm is adopted to seek for the amounts of load reduction of each participant in the EEDR program. The flowchart describing the process of demand reduction amount optimization using WOA optimization algorithm is shown in Fig. 7.

Fig. 6
figure6

General procedure of WOA-based weak buses identification methodology

Full size image
Fig. 7
figure7

Flowchart illustrating the process of demand reduction amount optimization using WOA

Full size image

Results and discussion

In this section, the effectiveness of the proposed EEDR strategy has been validated on the IEEE 14-bus test system [47] and the real Algerian 114-bus [48] power system. The IEEE 14-bus test system, shown in Fig. 8, consists of 14 buses, 5 generators, and 20 lines. The Algerian 114-bus system, shown in Fig. 9, contains 114 buses, 15 generators and 175 branches.

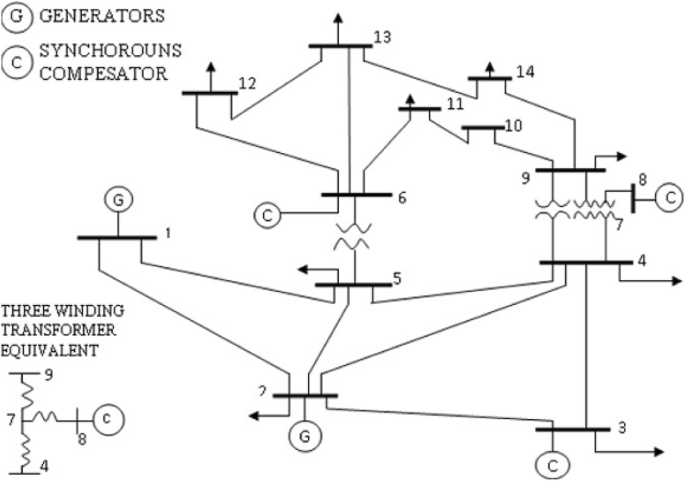

Fig. 8
figure8

Single line diagram of the IEEE 14-bus test system

Full size image
Fig. 9
figure9

Topology of the Algerian 114-bus power system [45]

Full size image

Examples on line tripping

Firstly, to validate the proposed EEDR approach, the same scenario with that of [40] has been simulated. In this operating scenario, the load demand of the IEEE 14-bus system is increased by 85% from its base case operating state. After the occurrence of two lines outages (lines from bus 2 to bus 4 and from bus 2 to bus 5), insufficient VSM is detected. So the proposed strategy acts to ensure that the VSI is no less than 0.3. Using WOA algorithm, the buses 4, 5, 7, 14 and 9 are identified to be the most sensitive buses in the case of IEEE 14-bus system. These buses are taken as the appropriate locations for EEDR. The convergence curve of WOA algorithm searching for the optimal load reduction at the selected buses is shown in Fig. 10.

Fig. 10
figure10

Convergence characteristic of WOA in the case of IEEE 14-bus

Full size image

Table 1 shows the EEDR results obtained using the WOA algorithm and those obtained by using the multi-stage optimization strategies [40]. As shown in this Table, the real and reactive powers of load buses 4, 5, 7, 14 and 9 are reduced by 11%, 0%, 0%, 6%, and 9%, respectively. It is also evident from this table that better results are obtained suing EEDR-based WOA algorithm.

Table 1 Comparison of two approaches of EEDR (IEEE 14-bus)
Full size table

To confirm the effectiveness of the proposed EEDR strategy, some further events have been simulated. Firstly, the line connecting the buses 1 and 2 in the IEEE 14-bus system was tripped. The loss of this line is considered as the most severe contingency as shown in Table 2. During this contingency, the voltage magnitudes at all buses are within the predetermined voltage limits as shown in Fig. 11. However, the lowest value of VSI (VSImin) drops below the constraint of 0.3. This would indicate that the corresponding line is closed to its voltage stability limit and the control strategy will be activated accordingly as shown in Fig. 12. After the application of EEDR-based WOA, it is seen that the VSM is enhanced. The obtained EEDR results are summarized in Table 3. The 4th column of this Table indicates the obtained amount of load reduction for each participant. The 5th and 6th columns show the total amount and the cost of load reduction, respectively. Columns 7 and 8 show, respectively, the minimum values of VSI before and after the application of EEDR-based WOA. It can be seen from this Table that the total reduction cost when the line 1–2 is tripped is 446.8791 [$/h], the total real and reactive powers required to avoid a risk of voltage collapse are 21.433 MW and 3.6351 MVAr, respectively.

Table 2 Set of the critical contingencies of IEEE 14-bus and Algerian 114-bus systems
Full size table
Fig. 11
figure11

Voltage profiles in the case of loss of line (1–2) in the IEEE 14-bu system

Full size image
Fig. 12
figure12

VSI before and after EEDR in the case of loss of line (1–2) in the IEEE 14-bus system

Full size image
Table 3 EEDR results in IEEE 14-bus and Algerian 114-bus systems in the case of line tripping
Full size table

The breadth of the study was expanded by performing another test on the Algerian 114-bus power system. The selected load buses, using WOA algorithm, were the buses 89, 68, 92 and 67. To perform the tests, two deferent branch outage contingencies were chosen from Table 2. The first one is the loss of the line between buses 63 and 66 where the minimum value of VSI was 0.1261. The second contingency is the outage of the branch between buses 81 and 90 where the minimum value of VSI was 0.1720. This low VSIs violation activates the proposed EEDR. Figure 13(a) and (b) represent the Algerian power system VSIs, concerning each event, before and after the application of the proposed EEDR-based WOA method. As can be expected, before the application of EEDR the system has an insecure VSM due to the line outage contingencies. However, after the application of EEDR the VSImin successfully increased to 0.3 for the two events enlarging the VSM. We can observe also from the Fig. 13 that VSM of the whole system is improved. The detailed EEDR results for the above two cases are also summarized in Table 3. It appears from these results that the proposed EEDR strategy works satisfactorily in the case of line outage contingencies.

Examples on load increase

The second scenario demonstrates the performance of the proposed strategy for the load increase. Thus, all loads in the IEEE 14-bus system are increased by 170% and 190% from its initial load level. Similarly, all loads in the Algerian 114-bus power system are increased by 20% and 35%. In these cases, the predicted values of VSI for both test systems are less than the threshold level of 0.3. This means that the systems have a great possibility of voltage collapse without any remedial actions. Since insufficient VSM (VSImin < 0.3) is detected, the EEDR-based WOA strategy will be activated accordingly. Figures 14 and 15 show the convergence curves of WOA algorithm seeking for the optimal load reduction at the selected buses in both test systems. After the application of the proposed EEDR, the VSI violations have been eliminated effectively as shown in Figs. 16 and 17. In all the above-mentioned cases, the reduction in the load power demand is distributed among the participants as shown in Table 4. The results depicted in Figs. 16 and 17 and Table 4 demonstrate the effectiveness of the proposed EEDR-based WOA method in the improvement of the VSM.

Fig. 13
figure13

VSI of the Algerian 114-bus system in the case of (a) loss of line (63–66), (b) loss of line (81–90)

Full size image
Fig. 14
figure14

Convergence characteristic of WOA in the IEEE 14-bus system, increasing of load by: (a) 170%, (b) 190%

Full size image

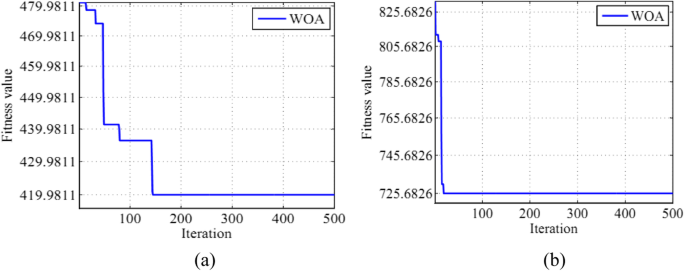

Fig. 15
figure15

Convergence characteristic of WOA in the Algerian 114-bus system, increasing of load by: (a) 20%, (b) 35%

Full size image
Fig. 16
figure16

VSI of the IEEE 14-bus system in the case of (a) increasing of load by 170%, (b) increasing of load by 190%

Full size image
Fig. 17
figure17

VSI of the Algerian 114-bus system in the case of (a) increasing of load by 20%, (b) increasing of load by 35%

Full size image
Table 4 EEDR results in IEEE 14-bus and Algerian 114-bus systems in the case of load increasing
Full size table

Conclusions

In this paper, an event-driven emergency demand response (EEDR) based on whale optimization algorithm (WOA) is proposed to improve the voltage stability of power system as well to avoid a risk of voltage collapse. In the proposed approach, the voltage stability margin (VSM) is, firstly, computed using the voltage stability index. Then, the WOA is adopted to seek for the optimal locations and amounts of load reduction of each participant in the EEDR program. The simulation results carried out using the IEEE 14-bus and the Algerian 114-bus power system proved the potential of the proposed EEDR scheme in the restoration of the power system from the emergency operating conditions. On the other hand, the use of the proposed strategy, to reach the desired VSM, results in lower demand reduction costs compared to other methods in the literature.

Methods section

This paper aims to propose an event-driven emergency demand response (EEDR) to effectively improve system voltage stability. The main objective of the proposed EEDR approach is to maintain the Voltage Stability Margin (VSM) in an acceptable range during emergency conditions by driving the operating condition of a power system away from the insecure points. VSM is determined by computing voltage stability index (VSI) using load flow equations. The identification of the best locations for EEDR participant is mathematically formulated as a non-linear constrained optimization problem, where the main goal is the determination of the optimal location for reactive power support. The determination of the optimal load reduction amount for each participant in the EEDR program, to achieve the desired VSM with the minimum cost of demand reduction, is also formulated as a non-linear optimization problem. For optimization, the recently proposed whale optimization algorithm (WOA) is used. Computer programs are written, using MATLAB software, from which the optimal locations and load reduction amounts are obtained and the results are compared.
