A new ensemble-based classifier for IGBT open-circuit fault diagnosis in three-phase PWM converter

Protection and Control of Modern Power Systems volume 3, Article number: 33 (2018) Cite this article

Abstract

Three-phase pulse width modulation converters using insulated gate bipolar transistors (IGBTs) have been widely used in industrial application. However, faults in IGBTs can severely affect the operation and safety of the power electronics equipment and loads. For ensuring system reliability, it is necessary to accurately detect IGBT faults accurately as soon as their occurrences. This paper proposes a diagnosis method based on data-driven theory. A novel randomized learning technology, namely extreme learning machine (ELM) is adopted into historical data learning. Ensemble classifier structure is used to improve diagnostic accuracy. Finally, time window is defined to illustrate the relevance between diagnostic accuracy and data sampling time. By this mean, an appropriate time window is achieved to guarantee a high accuracy with relatively short decision time. Compared to other traditional methods, ELM has a better classification performance. Simulation tests validate the proposed ELM ensemble diagnostic performance.

Background

Nowadays, induction motor drive systems fed by three-phase pulse width modulation (PWM) converters have been widely used in industrial applications [1]. With the advance of power semiconductor technology, insulated gate bipolar transistors (IGBTs) are commonly used in such systems to adjust the output signal of the converters. However, according to the industrial statistics, 38% of the converter faults are caused by the failure of power device [2] [3]. Power devices faults in converter may result in unstable output voltage and frequency, and can lead to the shutdown of the drive system. Thus, fast and accurate fault diagnosis method for IGBT has attracted extensive attentions [4].

In general, IGBT faults can be categorized into open-circuit fault and short-circuit fault. Short-circuit fault is usually caused by over-voltage or overheating. In practice, short-circuit fault of IGBT is usually protected by standard protection system, such as fuse and disconnecting switch [5].As a result, the abnormal state caused by short-circuit, such as over-current, may only last a very short period. On the other hand, open-circuit fault usually results in sustained period of abnormal states and can significantly degrade the converter performance. For PWM converters, the open-circuit situation is more complex because of the existence of a number of IGBTs in a converter. When open-circuit fault occurs, it is necessary to quickly detect and locate the faulty IGBTs. Hence, this paper concentrates on IGBT open-circuit faults in three-phase PWM converters.

Diagnosis methods of IGBT faults can be categorized generally into model-based, signal-based, knowledge-based, hybrid and active methods [5]. For model-based method [6,7,8,9,10,11], models of industrial processes or systems are the foundation and have to be derived from physical principles or systems identification techniques. The measured outputs of system models are then compared with the predicted outputs and the consistency is evaluated to diagnose faults [5]. This requires a high-level understanding of the practical systems and the consideration of other environmental factors in the actual working situation. Therefore, model-based method always requires tiresome and length tuning for an accurate. For signal-based methods [12,13,14,15,16], measured signals are used for the diagnostic process. Feature selection, such as RELIEFF [17], is a methodology to evaluate the quality of signal features according to their distinction among instance near each other and to select several top best features. Similarly, feature extraction is also an approach to decrease the signal dimension, such as the principle component analysis (PCA) [18]. This is achieved by transforming original datasets into a reduced set of features. The initial features are selected as a subset, which contains the relevant information from the input data. By those features, diagnostic algorithm can analyze symptoms to make a fault diagnosis decision. However, such signal-based methods require long processing time and the diagnostic performance is easily affected by fluctuation of loads.

Both model-based and signal-based methods require a prior knowledge on system models or signal patterns. Furthermore, signal-based method is easily influenced by load fluctuation, and this is a significant drawback in online application. Hence these methods are either sensitive to system load or with low detection speed. On the contrary, knowledge-based method [19,20,21,22,23,24,25] is based on large volumes of historical data [26] which can be obtained by simulations and experiments. The artificial intelligent technique can also be combined with data-driven methodology to extract the mapping relationship knowledge between the online input data and the diagnosis results according to the historical data. Thus, this method is also called a data-driven method.

In order to improve fault diagnosis, this paper develops a data-driven fault diagnosis method for PWM converter fed induction motor drive system. The inputs in the fault diagnosis scheme are three-phase currents and the outputs are fault types and location. Because load current is measured for the control algorithm of PWM converters, no additional sensors are required in the system. A novel learning network, namely extreme learning machine (ELM) [27] is applied to develop a diagnostic method for IGBT open-circuit faults. ELM is a randomized learning neural network, whose input weights and bias are randomly determined in ELM learning and the output weights are computed without traditional iteration. As a result, instead of lengthy training time, ELM has a fast learning speed which allows it to solve problems with large volumes of data. Due to its fast learning speed, ELM has already been used in detection of microgrid islanding events [28] and real-time dynamic security assessment of power systems [29]. However, this method has not been adopted in fault diagnosis of power electronics devices. To guarantee accuracy, the ensemble structure is adopted which contributes to increasing the robustness of diagnosis performance. In addition to improve learning process, the relevance between the time window width of signal sampling and diagnosis accuracy is analyzed to select the suitable time window. Thus, the diagnosis performance of the scheme can be significantly improved.

Through online application, it shows that due to the fast learning speed of ELM, the proposed scheme is feasible to identify IGBT open-circuit faults with balanced diagnostic accuracy and speed. The simulation also validates that the classification performance is independent of voltage ripple, and harmonics, speed and load fluctuations.

System description and fault analysis

Circuit topology of traction converter

The circuit topology of a two-level three-phase PWM converter is shown in Fig. 1. T1, T2...T6 are IGBTs and D1, D2…D6 are anti-parallel diodes. An induction motor is located at the load side represented by equivalent inductances of Za, Zb and Zc. ia, ib, ic are three-phase currents of the converter and motor stator [30].

Fig. 1
figure1

The topology structure of drive system

Full size image

From Fig. 1, when the converter operates in normal working state, the sum of three-phase currents in traction motor’s stator is zero, and so as the sum of three-phase voltage i.e.:

$$ {u}_{\mathrm{a}\mathrm{n}}+{u}_{\mathrm{bn}}+{u}_{\mathrm{cn}}={Z}_{\mathrm{a}}{i}_{\mathrm{a}}+{Z}_b{i}_b+{Z}_c{i}_c=0 $$
(1)

In (1), uan, ubn, ucn are three phase output converter voltages. Based on Kirchhoff’s voltage law, the following equations can be obtained:

$$ \left\{\begin{array}{l}{u}_{\mathrm{an}}={u}_{\mathrm{ao}}-{u}_{no}\\ {}{u}_{\mathrm{bn}}={u}_{\mathrm{bo}}-{u}_{no}\\ {}{u}_{\mathrm{cn}}={u}_{\mathrm{co}}-{u}_{no}\end{array}\right. $$
(2)
$$ {u}_{\mathrm{no}}={u}_{\mathrm{an}}+{u}_{\mathrm{bn}}+{u}_{\mathrm{cn}}=\frac{1}{3}\left({u}_{\mathrm{ao}}+{u}_{\mathrm{bo}}+{u}_{\mathrm{co}}\right). $$
(3)

Defining the switch function as:

$$ S=\left\{\begin{array}{l}1\kern1em \mathrm{the}\ \mathrm{upper}\ \mathrm{transistor}\ \mathrm{is}\ \mathrm{closed}\\ {}-1\kern0.5em \mathrm{the}\ \mathrm{lower}\ \mathrm{transistor}\ \mathrm{is}\ \mathrm{closed}\end{array}\right., $$

The three-phase load voltage can be expressed by:

$$ \left\{\begin{array}{l}{u}_{\mathrm{a}\mathrm{o}}={S}_{\mathrm{a}}\cdot \frac{U_{\mathrm{dc}}}{2}\\ {}{u}_{\mathrm{b}\mathrm{o}}={S}_{\mathrm{b}}\cdot \frac{U_{\mathrm{dc}}}{2}\\ {}{u}_{\mathrm{c}\mathrm{o}}={S}_{\mathrm{c}}\cdot \frac{U_{\mathrm{dc}}}{2}\end{array}\right. $$
(4)

Thus, the voltage between the DC middle point and the load neural point can be defined as:

$$ {u}_{\mathrm{no}}=\frac{U_{\mathrm{dc}}}{6}\left({S}_{\mathrm{a}}+{S}_{\mathrm{b}}+{S}_{\mathrm{c}}\right). $$
(5)

Therefore, the calculation of the phase voltages of the load motor is defined as:

$$ \left[\begin{array}{l}{u}_{\mathrm{a}\mathrm{n}}\\ {}{u}_{\mathrm{b}\mathrm{n}}\\ {}{u}_{\mathrm{c}\mathrm{n}}\end{array}\right]=\frac{U_{dc}}{6}\left[\begin{array}{ccc}2& -1& -1\\ {}-1& 2& -1\\ {}-1& -1& 2\end{array}\right]\left[\begin{array}{l}{S}_{\mathrm{a}}\\ {}{S}_{\mathrm{b}}\\ {}{S}_{\mathrm{c}}\end{array}\right] $$
(6)

IGBT open-circuit fault analysis

Upper arm fault - when the upper switch is in open-circuit fault (e.g. T1), the DC bus current idc cannot flow through T1. Considering the stator winding of the traction motor is in star connection and without grounded neural, the sum of the three-phase currents remains at zero. Hence, ia becomes negative, whereas ib and ic will be added with positive DC components. By introducing the open-circuit fault, the waveforms of three-phase currents are distorted and become asymmetric as shown in Fig. 2. The output electromagnetic torque of the traction motor is reduced and oscillates severely, which is harmful for system security and stability.

Fig. 2
figure2

The waveform when T1 is under open-circuit fault

Full size image

Lower arm fault - the fault phenomenon when the lower switch is under open-circuit fault (e.g. T4) is similar to the previous case. When T4 is in open-circuit fault, idc cannot feed the load through T4. Thus, current in phase A becomes positive, and ib and ic contain negative DC components. The waveform become distorted as depicted in Fig. 3.

Fig. 3
figure3

The waveform when T4 is under open-circuit fault

Full size image

Both upper and lower arms fault – when both arms in the same phase (e.g. T1, T4) are open-circuit, the DC bus current idc only flows to the traction motor through phase C and B. Hence, current in phase A becomes zero, and stator currents in phase B and C have opposite values as depicted in Fig. 4.

Fig. 4
figure4

The waveform when T1 and T4 are under open-circuit fault

Full size image

Fault labeling for converter

To identify the fault type and location, 6 fault types of single IGBT open-circuit, 15 fault types of double IGBT open-circuit and a normal working condition are defined in this paper according to different status of the converter, which are summarized in Table 1:

Table 1 Labels of Different Fault Types
Full size table

Extreme learning machine

ELM structure

ELM is a novel randomized neural network [27] and Fig. 5 shows its structure. As a general single-hidden layer feed-forward neural network (SLFN), ELM consists of three layers: the input layer, hidden layer and output layer.

Fig. 5
figure5

Structure of ELM

Full size image

For a training set\( {\left\{\left({\boldsymbol{x}}_i,{\boldsymbol{d}}_i\right)\left|{\boldsymbol{x}}_i\in {R}^J,\right.{\boldsymbol{d}}_i\in {R}^K\right\}}_{i=1}^L \), where L is the number of sample, xi = [xi1,…,xiJ] is the input vector with J features and di = [di1,…,diK] is the desired output vector with K features.

The relationship between the actual output vector ti = [ti1,…,tiK] and xi is shown:

$$ {\boldsymbol{h}}_i=g\left({\boldsymbol{w}}_{\boldsymbol{IH}}{\boldsymbol{x}}_i\right) $$
(7)
$$ {\boldsymbol{t}}_i={\boldsymbol{\omega}}_{\boldsymbol{HO}}{\boldsymbol{h}}_i $$
(8)

In (7) and (8), ωHO is a N × K vector indicting the weights between the hidden layers and output layers, and ωIH is a J × N vector indicting the weights between the input layers and hidden layers, where N is the number of hidden nodes. hi is the hidden layer’s output vector and g is the activation function in hidden nodes [27].

Unlike general network, ELM generates values of ωIH randomly. By doing so, the learning speed of ELM network can be thousands times faster than the traditional methods using iterative algorithm.

Training process of ELM

To describe the training process of ELM, it can be divided into six phases as follows:

  1. 1)

    Divide data into training dataset and testing dataset.

  2. 2)

    Define the number of hidden neurons N and activation function g in hidden neurons.

  3. 3)

    Generate weights ωIH randomly within the range from 0 to 1.

  4. 4)

    Calculate the outputs of hidden nodes using (9), where xj is the sample in training dataset and hn compose hidden nodes output vectors hi as:

$$ {h}_n=g\left(\sum \limits_{j=1}^J{\omega}_{jn}{x}_j\right) $$
(9)
  1. 5)

    Use Moore-Penrose pseudo inverse ωHO=H−1di to obtain ωHO, where H is the matrix consisting of hi.

  2. 6)

    Obtain actual output vector ti and compare ti with desired output di, to calculate the accuracy of the training process.

For this study, to implement open-circuit fault diagnosis, ELM is applied to a multiclass classification. For the binary classification, the output function can be written as:

$$ {f}_N\left(\boldsymbol{x}\right)=\operatorname{sign}\left(\mathbf{H}\left(\boldsymbol{x}\right)\beta \right) $$
(10)

where fN indicates the final output of ELM. H is a feature mapping, converting input space with J-dimension to N-dimension hidden-layer space. In the binary case, only one node is included in the output layer and the final decision is based on which class label is closer to the output value. To fit in multi-classification, binary case can be modified into two solutions:

  1. 1)

    Multi-classification with Single Output: In this case, the solution is similar to binary classification problem. The predicted class label of a given testing sample is closest to the output of ELM. The decision function needs to be modified by:

$$ {f}_N(x)=\operatorname{sign}\left(\mathbf{h}\left(\boldsymbol{x}\right){\mathbf{H}}^T{\left(\frac{\mathbf{I}}{C}+{\mathbf{H}\mathbf{H}}^T\right)}^{-1}\mathbf{T}\right) $$
(11)

where h denotes the output vector of the hidden layer corresponding to the input vector x, I denotes an identity matrix and C is a regularization factor which can be defined by user depended on classification application.

  1. 2)

    Multi-classification with Multi-outputs: For this multiclass case, the number of output nodes equals to the number of class labels. The predicted class label of a testing sample is the index number of the output node which has the highest output value. The decision mechanism is written as:

$$ \mathrm{label}\left(\boldsymbol{x}\right)=\arg \underset{i\in \left\{1,2,\dots, m\right\}}{\max }{f}_i\left(\boldsymbol{x}\right) $$
(12)

where m denotes the total number of class labels, and fi(x) refers to the output function of the ith output node, which forms the ELM classifier output set as f(x) = [f1(x),…, fm(x)].

In this IGBT open-circuit fault diagnosis, ELM is converted to the multi-classification with multi-outputs mode, with m equals to 22. Instead of iterative calculation in conventional SLFN, ELM randomly assigns input weights and thus releases the burden of lengthy calculation. By doing this, the training speed of ELM can be much faster than that of a conventional SLFN. Therefore, ELM greatly simplifies the learning process and becomes a practical algorithm in industrial applications [31] [32].

ELM-based ensemble classifier

Previous studies of ELM have focused on both regression and classification problems. ELM shows performance of high learning-speed and strong generalization capacity. However, during ELM training process, the input layer weight ωIH, is generated randomly. Due to the stochastic value, ELM always suffers from inadequate consistency and stabilization [32]. To increase the accuracy, this paper designs an ensemble learning process.

Ensemble classifier principle

In the study of data analytic, ensemble learning is a methodology to compensate the results of each single classifier by utilizing diversity. It can reduce aggregated variance and tend to increase accuracy over the individuals [33].

Thus, an ensemble classifier of ELM is developed in this paper. First, the classifier structure consisting of a large quantity (200 in this case) of single ELM classifiers is defined. Based on the analysis above, for the same input data, the 200 ELM classifiers are unlikely to obtain the same outputs due to randomness. Each single ELM is trained to find out the mapping relationship between current and fault label and output weights will be achieved for each single ELM. Thus, the principle of ensemble classifier is to combine results and apply an evaluation process to determine the final classification, with a strategically designed decision-making mechanism.

Ensemble classifier structure

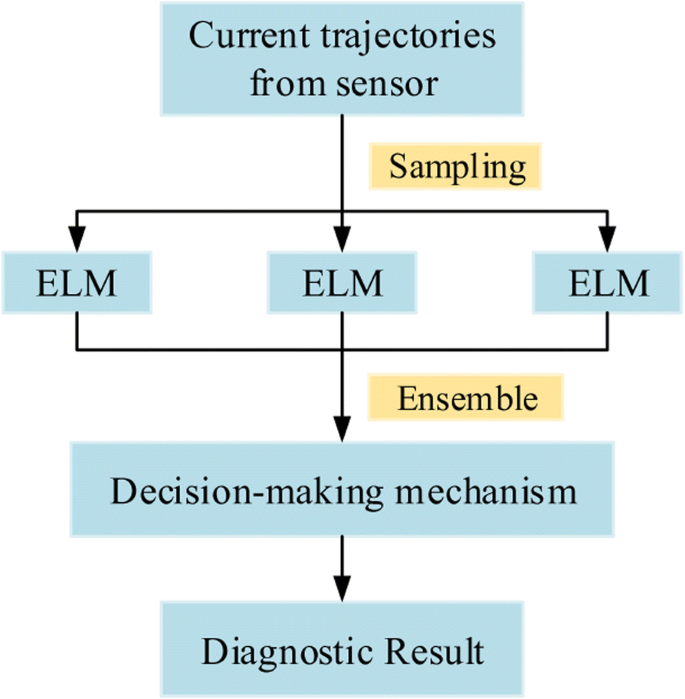

The structure of ELM ensemble classifier is depicted in Fig. 6. As shown, after the training process, the training features can be decided in individual ELM classifier, such as the output weights. Then the well trained ELM classifiers are clustered as an ensemble model.

Fig. 6
figure6

Structure of Ensemble ELM Classifier

Full size image

Based on the operating data in real-time, the proposed ensemble classifier is applied online for fault diagnosis. Using the decision-making mechanism, the final diagnosis output can be selected among individual ELM classifiers [30]. In addition, unlike traditional SLFN with long training time, ELM has high learning speed, and therefore, the proposed ensemble model is efficient.

In the testing process, each single ELM has its output t as t = [t1,…,tJ], where J is the number of output features. Assuming the total number of single ELM is p, a series of output T can be achieved as

$$ \mathbf{T}=\left[\begin{array}{c}{\mathbf{t}}_1\\ {}\vdots \\ {}{\mathbf{t}}_p\end{array}\right]=\left[\begin{array}{ccc}{t}_{11}& \cdots & {t}_{1J}\\ {}\vdots & \ddots & \vdots \\ {}{t}_{p1}& \cdots & {t}_{pJ}\end{array}\right] $$
(13)

For each column in (13), it represents the output results of each feature. The voting process is to choose the value with the most frequent occurrence in every column. Then a 1 × J output vector, where each element is the most common value of each feature, can be obtained by:

$$ {y}_j=\underset{i\in \left\{1,2,\dots, p\right\}}{\mathrm{mode}}\left\{{t}_{ij}\right\} $$
(14)

where yj is the final result of the jth instance, “mode” is the mathematical function for finding the mode of this sub-output set {tij}. Unlike errors existing in single ELM classification, this ensemble scheme minimizes the error as much as possible and the classification output is credible and reliable.

Diagnostic time window selection

In the training process described above, every input data can be expressed as x = [x1,…,xD] with D features, where D is also called dimension. With higher dimension, diagnosis can achieve a higher accuracy with more learning time.

In the process of sampling, an exact length of waveform in time domain, namely time window, is selected. When the window width is not enough, information of fault signal cannot be fully achieved, leading to inadequate learning process, and resulting in errors in diagnostic system. On the other hand, when the window width is too large, although diagnostic accuracy is able to be guaranteed, the burden of learning process is increased and efficiency is low due to the lengthy learning time. Considering of applying to real-time online process, to keep balance between the cost of time and diagnostic accuracy is important. Therefore, to select appropriate time window width for fault diagnosis is an important task in testing process. In this study, diagnostic time window selection is equivalent to finding the appropriate sampling length of training data.

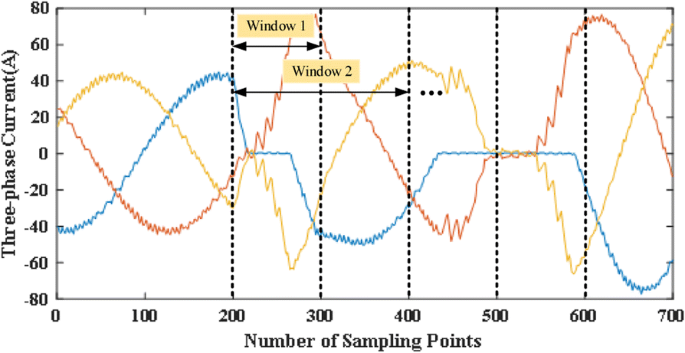

Fig. 7 illustrates a part of sampled waveform. In this figure, the horizontal axis represents the number of sampling point, which is also the time window width in this study. As seen, when the sampling number is 100, the sampled waveform is less than 1/4 periods, and does not provide reliable data for diagnosis. However, when the time window width reaches 400 or 500, the sampled waveform forms a period, and contains adequate information of the three-phase currents. On the other hand, if the sampling window width increases further, the information will be redundant and under this circumstance, the learning process will consist of lengthy calculation with reduced efficiency. By adjusting the sampling length, the diagnostic performance will achieve a trade-off between accuracy and learning burden.

Fig. 7
figure7

The waveform when T1 and T4 are under open-circuit fault

Full size image

Simulation validation

To verify the proposed data-driven based fault diagnosis method, a comprehensive and informative database is the fundamental requirement. In order to generate the database, a three-phase PWM voltage source inverter based induction motor drive system is simulated.

Database generation

The simulation model of the drive system is implemented using MATLAB/Simulink software. The parameters of the simulation model are given in Table. 2. The simulation takes voltage ripple, harmonics, and speed and load fluctuations into consideration to verify the accuracy of the proposed diagnosis method under different fault states. Operation data are collected under different working states, including the injection of 100 Hz ripple voltage in the DC-link with amplitude varied from 1 to 100 V at 1 V interval, reference speed varied from 1 to 100 rad/s at 1 rad/s interval, and reference load torque varied from 21 to 120 N∙m at 1 N∙m interval. The sampling frequency is 10 kHz and the database is summarized in Table 3.

Table 2 Parameters of the drive system
Full size table
Table 3 Data acquisition
Full size table

For 22 types of labels, 6600 sets of data can be obtained in the simulation model. To validate the single ELM classifier, those datasets are divided into two parts with 80% for training and 20% for testing, 5280 datasets for training and 1320 datasets for testing.

Parameter selection

Given different activation function searching patterns and neuron nodes, the performance comparison of ELM settings is analyzed in order to select optimal training parameters. To decide the relationship between single learner parameters and accuracy, the test accuracy A can be defined as:

$$ A=\frac{\left(N-M\right)}{N}\times 100\% $$
(15)

where N is the total number of instances in test dataset, M is the number of misclassified datasets. To seek the optimal parameters, five types of activation function, i.e. triangular basis (Tribas), radial basis (Radbas), sign function (Sig), sine (Sin), and hard-limit (Hardlim) are compared in terms of optimal classification performance, in order to decide the optimal hidden node range for single classifier. The classification performance is shown in Fig. 8:

Fig. 8
figure8

Performance of single ELM classifier with different types of activation function

Full size image

Fig. 8 shows that the sign activation function outperforms than the other four initial activation functions. Meanwhile, the trends of the curves indicate that increase of neuron nodes gradually increases the accuracy and in certain range, the accuracy is stable. As seen from Fig. 8, in the range from 1500 to 2000 using sign function, the accuracy of individual ELM classifier can be assured.

Time window selection

In this study, the simulation data is a 6600 × 1800 matrix, where 6600 refers to the number of datasets and 1800 indicates the number of data features in the time domain fault data. Every 600 features indicate the current data of each phase. For 10 kHz sampling frequency used in the simulation, every 100 data features correspond to a time window of 10 ms. Hence, the maximum time window in this study is 60 ms. When the length of sampling signal (i.e. time window width) varies from 10 ms to 60 ms at the interval of 10 ms, the classification performance is summarized in Fig. 9.

Fig. 9
figure9

Performance of ensemble ELM classifier with different time window width

Full size image

According to Fig. 9, increase the window width increases the testing accuracy. When the window width is short, e.g. 10 ms, classification accuracy is relative low due to inadequate learning. Meanwhile, when the time window width reaches a certain value, the accuracy stays high and becomes stable. Thus, in this case, 40 ms is determined as the optimal time window width, which guarantees the high accuracy with acceptable learning time.

Diagnosis results analysis and discussion

To show performance of ELM classifier, several neural networks are applied to train the same data to be compared with ELM. The networks in the control group include Support Vector Machine (SVM), Decision Tree (DT) and Naïve Bayes (NB). The classification performances of such learning methods are summarized in Table 4.

Table 4 Classification Performance
Full size table

Table 4 illustrates that the average learning time of ELM classifier is 2.711 s with 93.80% average accuracy. The results show that in addition to faster learning speed, single ELM also has a higher testing accuracy than any other methods. Therefore, the ensemble structure of ELM is more efficient with less learning time, when compared with traditional neural network methods.

Conclusion

This paper designs an ensemble-based randomized classifier to identify IGBT open-circuit faults in three-phase PWM converters. Considering both single and double IGBT faults, the output three-phase converter currents are measured using the simulation model, and faults are diagnosed by ELM. To compensate the inadequacy of single ELM classification, an ensemble structure is designed to increase accuracy by combining a number of single classifiers. Moreover, an optimal value of time window is adopted to balance the tradeoff between diagnostic accuracy and ELM learning burden. The simulation shows that, compared with other traditional learning algorithms, ELM has better performance in both classification accuracy and learning time. This ensemble ELM structure can identify IGBT open-circuit faults with a much higher diagnosis accuracy of 96.89% in 40 ms. It also shows that the proposed data-driven scheme is independent of voltage ripple, harmonics, and speed and load fluctuations. Thus, the proposed scheme is efficient and reliable in practical applications.

Abbreviations

CHMLIS:

Cascaded H-bridge multilevel inverter system

DT:

Decision tree

ELM:

Extreme learning machine

IGBT:

Insulated gate bipolar transistor

NB:

Naïve Bayes

PCA:

Principle component analysis

PWM:

Pulse width modulation

SLFN:

Single hidden layer feed-forward neural network

SVD:

Singular value decomposition

SVM:

Support vector machine
