Design of robust intelligent protection technique for large-scale grid-connected wind farm

Protection and Control of Modern Power Systems volume 3, Article number: 17 (2018) Cite this article

Abstract

This paper presents a design of robust intelligent protection technique using adaptive neuro-fuzzy inference system (ANFIS) approach to detect and classify the fault types during various faults occurrence in large-scale grid-connected wind farm. Also, it is designed to determine the fault location and isolate the wind turbine generators located in the faulted zone during fault occurrence and reconnect them after fault clearance. The studied wind farm has a total rating capacity of 120 MW, where it consists of 60 doubly fed induction generator (DFIG) wind turbines each has a capacity of 2 MW. Moreover, the wind farm generators are positioned in 6 rows, where each row consists of 10 generators. The impacts of fault type, fault location, fault duration, cascaded faults, permanent fault and external grid fault on the behaviours of the generated active and reactive power are investigated. Also, the impacts of internal and external faults in cases of different transition resistances are investigated. The simulation results indicate that, the proposed ANFIS protection technique has the ability to detect, classify and determine the fault location, then isolate the faulted zones during fault occurrence and reconnect them after fault clearance. Furthermore, the wind turbines generators which are located in un-faulted zones can stay to deliver their generated active power to the grid during fault period.

Introduction

It is well-recognized that one way of producing electricity from renewable energy sources is to use the wind turbines that convert the wind energy contained in the flowing air into the electrical energy. Moreover, the importance of this field is one of the best ways to protect the environment by reducing the carbon emissions [1,2,3,4,5,6,7]. Thus, the trends of building large-scale wind farm are essential to improve and increase the production efficiency of electricity. The wind farm has a lot of wind turbines which are connected to the electrical grid. The DFIG is one the most powerful generator in the market because it has various advantages such as variable speed and cost effective partially rated power converter [8,9,10,11,12]. As mentioned earlier, nowadays applicant is focused on a variable speed wind turbine.

The most prevalent generators in wind farm are the variable speed DFIG wind turbine [13]. Moreover, the DFIG had been widely used in the large-scale wind farm [14]. The DFIG consists of wound rotor slip-ring induction generator, where its stator windings are connected to a constant frequency electric grid, and its rotor windings are connected to the grid via bidirectional converters. These converters consist of rotor side converter (RSC) and grid side converter (GSC) [15]. The control systems of wind turbine play an important role to control and obtain the maximum energy from the available wind speed. The control systems of DFIG wind turbine are the RSC controller, the GSC controller and the pitch angle controller [16,17,18,19,20,21]. The disadvantage of DFIG is a sensitive to the faults occurrence in the grid [22, 23]. Furthermore, in case of a voltage dips nearing to the wind farm, over-current surges similar to short circuit currents will pass via stator windings, which will also flow via rotor windings due to a magnetic coupling between stator and rotor [24,25,26]. During this situation, need a special attention to protect the power electronic converters, DC-link capacitor and the DFIG windings from the dangerous effects by disconnecting the faulted zones. The high currents can destroy the wind turbine components therefore, the protection system is essential to protect and isolate the faulted zones inside large-scale wind farms.

In the literature, the protection technique for large-scale wind farm attracts the interest of researchers, where the most worrynty problem of wind farm generators is the cascading trip events caused by occurrence of different faults, which may propagate and cause isolation of all wind turbine generators over very large area [27,28,29,30,31,32].

This research focuses on avoiding trip events of all wind turbine generators during faults and proposes a robust intelligent protection technique based on artificial intelligence to trip only the faulted zone of wind farm. The applications of artificial intelligence in protection and control of power system are widely used [32,33,34,35]. The ANFIS architecture is an artificial intelligence approach that combines of a neural network system with a fuzzy logic system to achieve best performance and give suitable solutions for the studied problem [36,37,38,39].

The proposed protection technique for large-scale wind farm is performed and simulated using MATLAB/Simulink platform based on robust intelligent ANFIS technique. The proposed protection technique is designed to detect fault occurrence, classify fault type and determine fault location. Also, the proposed technique is utilized to isolate the wind turbine generators of faulted zone to protect their components and reduce undesirable fault effects. The variations of active and reactive power for faulted and un-faulted wind turbine generators with different fault types, fault locations, fault durations, cascaded faults, permanent fault and external grid fault are investigated. Furthermore, the behaviours of wind farm generators in cases of internal and external faults having different transition resistances are investigated. This rest of this paper can be organized as follows:

Section 2 provides the description of a mathematical modelling and control systems of DFIG wind turbine. In Section 3, analyzes the design of robust intelligent protection technique for large-scale wind farm using ANFIS. A discussion of the simulation results is reported in Section 4 to indicate the performance and efficiency of the proposed technique. Section 5 briefly presents the conclusion.

Mathematical modelling and control systems of DFIG wind turbine

Mathematical modelling

As shown in Fig. 1, the DFIG wind turbine consists of different main components such as wind turbine rotor, gearbox, generator, power electronic converters, and transformer for grid connection. The wind turbine is used to convert the wind kinetic energy into mechanical energy, where it is converted to electrical power via electrical generator. The available wind power that can be extracted from the wind is expressed as follows [40, 41]:

$$ {P}_w=0.5\kern0.5em \rho\ A\ {V}_w^3 $$
(1)

where P w is the wind power, ρ is the air density, A is the cross-sectional area of the wind crossed the blades, and V w is the wind speed. The developed mechanical power by the wind turbine is given by:

$$ {P}_m=0.5\ {C}_P\left(\lambda, \beta \right)\ \rho\ A\ {V}_w^3 $$
(2)
$$ \lambda =\frac{\omega_r\ {R}_b}{V_w} $$
(3)

where P m represents the mechanical power, C P represents the power coefficient, λ represents the tip-speed ratio, β represents the pitch angle, R b represents the blade radius, and ɷ r represents the angular speed of turbines rotor.

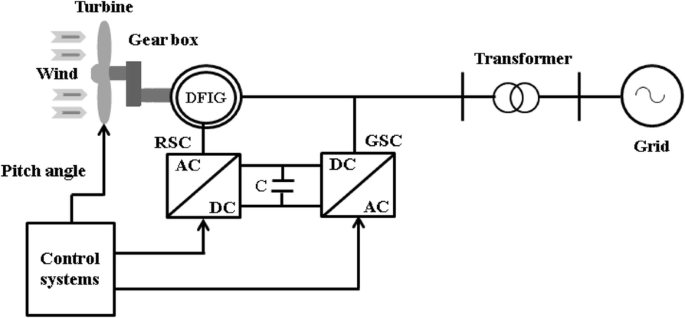

Fig. 1
figure1

Construction of DFIG wind turbine system

Full size image

The wind turbine is coupled to DFIG via a gearbox, which is used to convert the low speed of wind turbine to high speed for the DFIG. The model of drive train system which contains wind turbine, low-speed shaft, high-speed shaft, and gearbox can be expressed as a two-mass model as follows [40]:

$$ 2{H}_t\frac{d\omega}{d t}={T}_m-{T}_{sh} $$
(4)
$$ 2{H}_g\frac{ds_r}{dt}=-{T}_{sh}-{T}_{em} $$
(5)
$$ \frac{d{\theta}_s}{dt}={\omega}_r-{\omega}_g $$
(6)
$$ {T}_{sh}={K}_{sh}{\theta}_s-{D}_{sh}\frac{d{\theta}_s}{dt} $$
(7)

where H t and H g are the inertia constants of wind turbine rotor and generator rotor respectively, ω g is the angular speed for a generator rotor, T m , T sh , and T em are the wind torque, shaft torque, and electromagnetic torque respectively, K sh is the shaft stiffness coefficient, ϴ s is the shaft tensional twist angle, and D sh is the damping coefficient. The mathematical modelling of DFIG in an appropriate d-q frame is given as follows [13, 17]:

$$ {v}_{ds}={R}_s\ {i}_{ds}-{\omega}_s\ {\psi}_{qs}+\frac{d{\psi}_{ds}}{dt} $$
(8)
$$ {v}_{qs}={R}_s\ {i}_{qs}+{\omega}_s\ {\psi}_{ds}+\frac{d{\psi}_{qs}}{dt} $$
(9)
$$ {v}_{dr}={R}_r\ {i}_{dr}-{\omega}_r\ {\psi}_{qr}+\frac{d{\psi}_{dr}}{dt} $$
(10)
$$ {v}_{qr}={R}_r\ {i}_{qr}+{\omega}_r\ {\psi}_{dr}+\frac{d{\psi}_{qr}}{dt} $$
(11)
$$ {\psi}_{qs}={L}_s\ {i}_{qs}+{L}_m\ {i}_{qr} $$
(12)
$$ {\psi}_{ds}={L}_s\ {i}_{ds}+{L}_m\ {i}_{dr} $$
(13)
$$ {\psi}_{qr}={L}_r\ {i}_{qr}+{L}_m\ {i}_{qs} $$
(14)
$$ {\psi}_{dr}={L}_r\ {i}_{dr}+{L}_m\ {i}_{ds} $$
(15)
$$ {L}_r={L}_{lr}+{L}_m $$
(16)
$$ {L}_s={L}_{ls}+{L}_m $$
(17)

The active and reactive power for the windings of stator and rotor are given as follows:

$$ {P}_s={v}_{ds}\ {i}_{ds}+{v}_{qs}\ {i}_{qs} $$
(18)
$$ {Q}_s={v}_{qs}\ {i}_{ds}-{v}_{ds}\ {i}_{qs} $$
(19)
$$ {P}_r={v}_{dr}\ {i}_{dr}+{v}_{qr}\ {i}_{qr} $$
(20)
$$ {Q}_r={v}_{qr}\ {i}_{dr}-{v}_{dr}\ {i}_{qr} $$
(21)

So, the total output active and reactive power are expressed as follows:

$$ P={P}_s+{P}_r $$
(22)
$$ Q={Q}_s+{Q}_r $$
(23)

where v, i, and R represent voltages, currents, and resistances respectively, ψ are flux linkages, and L are inductances. In addition to the all used subscripts are as follows: d is d-axis quantity, q is q-axis quantity, r is rotor quantity, s is stator quantity, m is mutual, and l is leakage.

The stator windings of DFIG are connected to the grid, while the rotor windings are fed via AC/DC/AC converters such as RSC and GSC. In addition to the converters, DC-link capacitor is connected between them to acts as energy storage and keeps the DC voltage ripple with some little variations. The RSC works at variable frequencies depending on available wind speed and the GSC works at grid frequency. The power flow direction via converters depends on the operation mode of the electrical generator. In the super-synchronous operation mode, the stator output power and the rotor slip power are delivered into electrical grid. In the sub-synchronous operation mode, the stator of DFIG delivers power to the grid and the slip power to the rotor via the slip rings and the converters.

Control systems

The control system strategy of DFIG wind turbine is designed based on controlling of RSC and GSC. Also, it is designed to regulate the blades pitch angle which regulates the speed of wind turbine and protects the wind turbine mechanical parts from damage. Usually, the control systems are designed using proportional integral (PI) controller due to simple structures, clear functionality, low cost and reliable performance [42,43,44,45,46]. Firstly, the RSC is utilized to control active power and reactive power (or voltage level) measured at generator terminals. The control of active power is used to adjust the angular speed of turbine rotor to follow power-speed characteristic of turbine for tracking the maximum power point. The reactive current which is flowing in a converter is used to control voltage level or reactive power at the DFIG terminals. Secondly, voltage level at the DC-link capacitor is controlled using the GSC controller. Also, it can be controlled to absorb or generate reactive power for supporting the grid voltage. Thirdly, wind turbine is provided with a pitch angle control system to limit the extracted power during the condition of high wind speed. The pitch angle control system is activated only when the rotor speed increasing than the rated value due to increasing of wind speed or fault occurring.

Methods

Studied large-scale wind farm

The rated of studied large-scale wind farm is 120 MW, where it consists of 60 wind turbines driven by DFIG, where each wind turbine has a capacity of 2 MW. The wind turbines are positioned in regular matrix of 10 by 6 where each 10 wind turbines are located in a row as shown in Fig. 2. The wind turbines are simulated by a separated 6 generators each of them has a capacity of 20 MW (2 MW multiplied by 10). The generated power is exported to a 220 kV electrical grid via internal feeders and a 25 kV transmission line has a length of 30 km. A single line diagram of the studied wind farm connected grid is illustrated in Fig. 3. Also, the main data of DFIGs, transformers, internal feeders, and transmission line are described in Table 1.

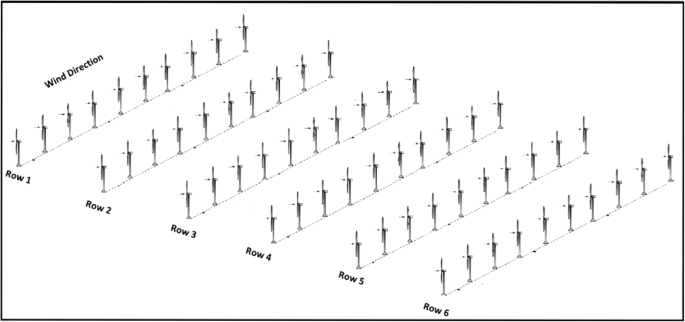

Fig. 2
figure2

Layout of the large-scale wind farm

Full size image
Fig. 3
figure3

Single line diagram of the studied large-scale wind farm

Full size image
Table 1 Parameters of large-scale wind farm based DFIG
Full size table

The proposed protection technique based on ANFIS

ANFIS is the fuzzy system represented in a framework of the adaptive networks. Moreover, ANFIS combines the concepts of fuzzy inference systems (FIS) rule base and the learning benefit of artificial neural networks (ANN) to form hybrid adaptive systems with learning capabilities. ANFIS uses FIS rule base to describe the relationship between the input/output parameters and the ANN to train the data then find best parameters for the FIS membership function to get the suitable rules. The principles of ANFIS architecture consists of five layers, namely fuzzification layer, product rule layer, normalization layer, defuzzification layer and total summation layer. With input/output data for a given set of parameters, the membership function parameters of FIS model are adjusted using adaptive algorithm. The adaptive algorithm uses a back-propagation algorithm alone or a hybrid learning algorithm for training the parameters of MFs to emulate a given training data set where the hybrid algorithm applies a combination of the least-squares method and the back-propagation gradient descent method.

The inputs of ANFIS approach are phase voltage and phase current, which are fuzzified with membership functions and trained according to a training data measured at normal and abnormal conditions to get the best membership functions parameters. Figure 4 presents the flowchart for training and testing of ANFIS approach.

Fig. 4
figure4

Flowchart of training and testing ANFIS approach

Full size image

The general strategy of the proposed technique is to detect fault occurrence, classify fault type and determine the fault location of the studied wind farm based on ANFIS approach. The input signals of the proposed technique are measured magnitude values of voltages (V a , V b , V c ) and currents (I a , I b , I c ) at each row terminal. As shown in Fig. 5, the proposed protection technique consists of eighteen ANFIS networks dividing into six groups, where each group is responsible to protect one row using the measured values of voltages and currents at the row terminal. Each feeder of wind farm is equipped with two circuit breakers (CBs) to isolate it during fault occurrence, where the CBs are controlled by ANFIS. As illustrated in Fig. 5, the collected output of each ANFIS group is a control signal to turn off the CBs for wind turbine generators of faulted zone to isolate and protect them. During grid faults, the CBs are triggered depending on fault location and fault type to limit the high over-current and isolate the faulted row wind turbines.

Fig. 5
figure5

Block diagram for the proposed fault protection technique based on ANFIS approach

Full size image

The designed ANFIS networks are trained and tested using various sets of field data. The parameters of each three ANFIS structure are identical and selected as follows, two inputs and three MFs for each input, the inputs type for MF is Gaussian, the output is constant, the error tolerance is chosen to be zero, the number of epochs is 300, grid partitions, and the optimization method is hybrid algorithm. The structure and parameters of ANFIS are adjusted to perform three targets, where it can be used to detect, classify and determine the location of different faults for the studied wind farm. Figure 6 shows a flowchart of different steps for proposed protection technique.

Fig. 6
figure6

Flowchart of proposed protection technique using ANFIS approach

Full size image

Simulation results and discussion

In this section, the evaluation of the proposed technique and the behaviour of wind farm generators connected grid are investigated at the different fault conditions. The wind turbine generators of studied wind farm are operated at a wind speed of 12 m/s, where the total generated active power measured at the point of common coupling (PCC) bus is 108.3 MW during steady state condition. The variations of active power and reactive power at wind farm PCC bus are investigated. In the following subsections, the impacts of fault types, fault location, fault duration, cascade faults, permanent fault and external grid fault are studied. Also, the impacts of internal and external faults in cases of different transition resistances are investigated, where the value of the transition resistance is varied between 0 Ω and 100 Ω [47]. The accuracy of the proposed protection technique to detect fault occurrence and clearance for different fault types is investigated when these faults occur inside wind farm at row 1 for a duration time of 150 ms. As indicated in Fig. 7, the proposed ANFIS protection technique detects the fault occurrence at instants of 150.015 s, 150.015 s and 150.0153 s and detect the fault clearance at instants of 150.1529 s, 150.1528 and 150.1523 s in cases of single-line to ground fault, double-line to ground fault and three-line to ground fault respectively.

Fig. 7
figure7

ANFIS protection technique output control signals for CB at different fault types: (a) at single-line to ground fault (b) at double-line to ground fault (c) at three-line to ground fault

Full size image

Impacts of fault types

In this subsection, the behaviours of wind farm generators during occurrence of different faults such as single-line to ground fault, double-line to ground fault, and three-line to ground fault are investigated in cases of isolating and un-isolating of the faulted wind turbine generators by controlling of CBs trip signals. The studied faults are occurred close to row 1 at fault location (F1) as shown in Fig. 3.

Figure 8 shows the variations of active power, reactive power and their percentage errors at PCC bus of wind farm during occurrence of single-line to ground fault. As shown in Fig. 8a, when the faulted wind turbine generators are tripped off, the active power is fluctuated between 88.08 MW and 91.08 MW after fault occurrence, while it is fluctuated between 115.5 MW and 107.8 MW after fault clearance. On the other hand, in case of CBs not tripping of faulted wind turbine generators, there is no variation in the measured active power at PCC bus. The percentage errors of active power fluctuation in case of CBs tripping and not tripping are shown in Fig. 8b. Furthermore, the reactive power is fluctuated between − 5.795 MVAR and − 3.315 MVAR after fault occurrence, while it is fluctuated between − 3.65 MVAR and − 8.019 MVAR after fault clearance in the case of CBs tripping as shown in Fig. 8c. Also, in the case of CBs not tripping, there is no variation in the measured reactive power at PCC bus. The percentage errors of reactive power fluctuation in case of CBs tripping and not tripping are shown in Fig. 8d.

Fig. 8
figure8

Variations of active power, reactive power and percentage errors during occurrence of single-line to ground fault: (a) active power (b) percentage error of active power (c) reactive power (d) percentage error of reactive power

Full size image

Figure 9 shows the variations of active power, reactive power and their percentage errors at PCC bus for studied wind farm in the case of double-line to ground fault. As shown in Fig. 9a, the active power is fluctuated between 79.08 MW and 106.6 MW after fault occurrence, while it is fluctuated between 118.1 MW and 106.4 MW after fault clearance in the case of CBs tripping. Also, in case of CBs not tripping, it is fluctuated between 80 MW and 98.67 MW after fault occurrence, while it is fluctuated between 130.7 MW and 99.16 MW after fault clearance. The active power fluctuation percentage errors in case of CBs tripping and in case of CBs not tripping are shown in Fig. 9b. As shown in Fig. 9c, it is noticed that, the reactive power is fluctuated between − 52.1 MVAR and 0.5216 MVAR after fault occurrence, while it is fluctuated between − 13.13 MVAR and − 3.173 MVAR after fault clearance in the case of CBs tripping. Also, in case of CBs not tripping, it is decreased to − 77.35 MVAR after fault occurrence and it is increased to 4.762 MVAR after fault clearance. The reactive power fluctuation percentage errors in case of CBs tripping and not tripping are shown in Fig. 9d.

Fig. 9
figure9

Variations of active power, reactive power and percentage errors during occurrence of double-line to ground fault: (a) active power (b) percentage error of active power (c) reactive power (d) percentage error of reactive power

Full size image

Figure 10 shows the variations of active power, reactive power and their percentage errors at PCC bus in the case of three-line to ground fault. As shown in Fig. 10a, the active power is fluctuated between 49.05 MW and 119 MW after fault occurrence, while it is fluctuated between 115.5 MW and 105.1 MW after fault clearance in case of CBs tripping. Also, in case of CBs not tripping, it is fluctuated between 43.91 MW and 55.15 MW after fault occurrence, and it is fluctuated between 115 MW and 76.06 MW after fault clearance. The active power fluctuation percentage errors in case of CBs tripping and in case of CBs not tripping are shown in Fig. 10b. As indicated in Fig. 10c, the reactive power is fluctuated between − 122.9 MVAR and 3.906 MVAR after fault occurrence, while it is fluctuated between − 13.48 MVAR and 2.278 MVAR after fault clearance in the case of CBs not tripping. Also, in the case of CBs not tripping, it is decreased to − 136.8 MVAR after fault occurrence and it is increased to 16.44 MVAR after fault clearance. The reactive power fluctuation percentage errors in case of CBs tripping and not tripping are shown in Fig. 10d.

Fig. 10
figure10

Variations of active power, reactive power and percentage errors during occurrence of three-line to ground fault: (a) active power (b) percentage error of active power (c) reactive power (d) percentage error of reactive power

Full size image

Based on the fluctuations of active power, reactive power and their percentage errors of the studied system for different fault types, it can be suggested that, the proposed protection technique isolates the faulted wind turbine generators in cases of double-line to ground fault and three-line to ground fault by tripping the faulted zone CBs.

Impacts of fault locations

To study the impacts of fault locations, the behaviour of wind farm generators is studied in case of three-line to ground fault occurs at various locations inside wind farm. The impacts of fault locations are studied for three cases, when the fault occurs at the location of F1 as first case, when the fault is occurring at the locations of F2 and F3 as second case, and when the fault occurs at the locations of F4, F5, and F6 as third case. Figure 11 shows the active power and reactive power variations at PCC bus when the fault occurs at different fault locations.

Fig. 11
figure11

Variations of active and reactive power at the PCC bus during different fault locations: (a) active power (b) reactive power

Full size image

As shown in Fig. 11a, when the fault occurs at F1, the active power is fluctuated between 49.05 MW and 119 MW and it stabilizes at a value of 90 MW before fault clearance. Also, it is fluctuated between 29.58 MW and 104.5 MW, then it stabilizes at the value of 71.6 MW during fault occurrence at F2 and F3, while it fluctuated between 12.65 MW and 85.8 MW, then it stabilizes at the value of 54.5 MW when the fault occurs at F4, F5 and F6. The reactive power variations are indicated in Fig. 11b. It is clear that, when the fault occurs at F1, the reactive power is decreased to − 122.9 MVAR during fault period and fluctuated between − 13.48 MVAR and 2.28 MVAR after fault clearance, then returns to steady state value. When the fault occurs at F2 and F3, the reactive power is decreased to − 128.6 MVAR and fluctuated between − 21.92 MVAR and 9.88 MVAR after fault clearance. Also, it is decreased to − 117.4 MVAR when the fault occurs at the locations of F4, F5, and F6, where it is fluctuated between − 30.72 MVAR and 17.59 MVAR after fault clearance.

Impacts of fault duration

The impact of fault duration time on the behaviour of the studied wind farm generators is investigated in case of a three-line to ground fault occurs at row 2 for different fault duration times. The fault duration time is varied between 150 ms and 300 ms, where the faults are occurring at the same instant of 150 s and clearing at the different instants of 150.15 s and 150.3 s of simulation time respectively. The variations of active and reactive power for different fault durations are illustrated in Fig. 12. It is obvious that, the wind farm generators return to deliver active power to the grid after fault clearance for different fault duration times.

Fig. 12
figure12

Variations of active and reactive power at the PCC bus during different fault duration times: (a) active power (b) reactive power

Full size image

Impacts of cascaded faults occurrence

In this subsection, the behaviour of wind farm generators during a composed three-line to ground faults is investigated. The composed fault is a sequence of two faults, the first fault occurs at instant of 150 s and clears at 150.150 s nearest row 1, while the second fault occurs at the instant of 150.075 s and clears at 150.225 s nearest row 2. In this studied case, the active and reactive power variations are monitored at PCC bus of wind farm. During fault period, the active power at PCC bus is fluctuated between 119 MW and 36.86 MW, then returns to steady state value nearly at the instant time of 150.4 s after fault clearance as shown in Fig. 13a. Also, the reactive power is fluctuated between − 122.9 MVAR and 4.05 MVAR, then returns to steady state value nearly at the instant time of 150.4 s after fault clearance as shown in Fig. 13b.

Fig. 13
figure13

Variations of active and reactive power at the PCC bus during cascaded faults occurrence: (a) active power (b) reactive power

Full size image

Impacts of permanent fault occurrence

The behaviour of wind farm generators equipped with the proposed protection technique during permanent three-line to ground fault which it occurs at row 1 is investigated. As shown in Fig. 14a, the value of the exported power to the grid measured at PCC bus is 108.3 MW during steady state condition. It is fluctuated between 49.05 MW and 119 MW during fault period, where it stabilizes to 90.2 MW nearly at the instant of 150.2 s. The reduction of total exported active power to the grid is decreased due to the isolation of wind turbine generators for faulted row 1 by the proposed protection system technique. Also, the measured reactive power at PCC bus is − 5.1 MVAR in steady state condition. It is fluctuated between − 122.9 MVAR and 3.906 MVAR during fault period, where it stabilizes to − 4.25 MVAR nearly at the instant of 150.2 s as shown in Fig. 14b.

Fig. 14
figure14

Variations of active and reactive power at the PCC bus during permanent fault occurren ce: (a) active power (b) reactive power

Full size image

Impacts of external fault occurrence

To study the impacts of external grid fault occurrence, the behaviour of wind farm generators is studied when a three-line to ground fault occurs on the transmission line at distances of 10 km and 30 km from the PCC. Figure 15 shows the impact of different external fault locations on the instants of fault detection and clearance. It is clear that, the time taken by the proposed protection technique to detect the fault occurrence or fault clearance is directly proportional to the distance between the fault location and the wind farm.

Fig. 15
figure15

ANFIS protection technique output control signal with different external fault locations

Full size image

On the other hand, the active power and reactive power have more fluctuation when the fault occurs at a distance of 30 km comparing with the case of fault occurrence at a distance of 10 km as shown in Fig. 16.

Fig. 16
figure16

Variations of active and reactive power at the PCC bus with different external fault locations: (a) active power (b) reactive power

Full size image

Impacts of transition resistance

The impacts of transition resistance Rg on the accuracy of the proposed technique in cases of internal and external fault are studied. It is studied in case of a three-phase to ground fault occurs at row 1 as internal fault, and when the fault occurs on the transmission line at a distance of 10 km from the PCC bus as external fault. The faults are studied at a different transition resistance values such as 0 Ω, 10 Ω, and 100 Ω. The variations of the measured active and reactive power at PCC bus in case of internal and external fault are indicated in Figs. 17 and 18 respectively. It is clear that, the proposed protection technique tends to be more accurate and robust since it is unaffected by the variations of transition resistance values in cases of internal and external faults.

Fig. 17
figure17

Variations of active and reactive power at the PCC bus in case of internal fault with different transition resistances: (a) active power (b) reactive power

Full size image
Fig. 18
figure18

Variations of active and reactive power at the PCC bus in case of external fault with different transition resistances: (a) active power (b) reactive power

Full size image

A comparison between the proposed protection technique with others protection techniques [30,31,32] is provided as follows: Chen et al. [30] have presented superconducting fault current limiter (SFCL) protection system to suppress the fault current of DFIG-Based wind farm. Wang et al. [31] have proposed a flexible fault ride through strategy to allow a few wind turbine generators to trip and maintains the connection to grid of most generators during fault. Noureldeen et al. [32] have proposed an efficient ANFIS crowbar protection for DFIG wind turbines to protect wind turbine generator components during grid fault. The objective of the proposed technique focuses on avoiding trip events of all wind farm during faults and proposes a robust intelligent protection technique for wind farm based on ANFIS approach to trip only the faulted wind turbine. The proposed technique has some advantages comparing with others protection techniques such as classification of fault types, determination of fault locations and isolation of faulted zones. Moreover, the proposed technique is investigated at different fault conditions such as fault duration, cascaded faults, permanent fault, and variations of transition resistance values in cases of internal and external faults.

Finally, the simulation results show that, the proposed protection technique has the ability to detect and classify the fault, hence isolate the faulted zones during fault occurrence, where that lead to support the un-faulted generators to stay in services.

Conclusion

This paper presents a design of proposed robust intelligent protection technique for large-scale wind farm connected to electrical grid using ANFIS approach. The studied wind farm has a total rating capacity of 120 MW, where it consists of 60 DFIG wind turbines, and each generator has a capacity of 2 MW. Moreover, the wind farm generators are located in 6 rows, where each row consists of 10 generators and each row is simulated by one DFIG wind turbine with a rating of 20 MW. The proposed protection technique is designed using ANFIS approach to detect, classify and determine the location of different faults which occur in the grid-connected wind farm to protect the wind turbine generator components from dangerous effects. The proposed technique is investigated at different fault conditions such as fault types, fault location, fault duration, cascaded faults, permanent fault and external grid fault. Also, the impacts of internal and external faults in case of different transition resistances are studied. The fluctuations of active and reactive power are monitored at the PCC bus of wind farm for different fault conditions. The results show that, the measured active power for faulted row generators is fallen to zero MW due to isolation of faulted zone during fault occurrence. After fault clearance and reconnect the isolated zone, the generated active power has some fluctuation, then returns to steady state value. Also, the active power for all un-faulted rows is affected during different fault periods. The reduction of active power at PCC bus depends on the number of faulted rows and fault duration. The results show that, the proposed technique can detect, classify and determine the fault location, hence it isolates the faulted zone during fault occurrence and reconnect it after fault clearance. Also, the wind turbine generators which are located in un-faulted zones can remain in delivering their generated active power to the electrical grid. Moreover, the wind turbine generators in faulted zone return to deliver their active power to the grid after fault clearance. Finally, the simulation results demonstrate the applicability and confirm the robustness of proposed technique.
