A new five-level inverter with reduced leakage current for photovoltaic system applications

Abstract

A general growth is being seen in the use of renewable energy resources, and photovoltaic cells are becoming increasingly popular for converting green renewable solar energy into electricity. Since the voltage produced by photovoltaic cells is DC, an inverter is required to connect them to the grid with or without transformers. Transformerless inverters are often used for their low cost and low power loss, and light weight. However, these inverters suffer from leakage current in the system, a challenge that needs to be addressed. In this paper, a topology with two alternative connection models is presented to stabilize the common mode voltage and reduce the leakage current. The output voltage characteristic of the proposed inverter is five-level, which reduces the harmonic distortion in the output current compared to the two- and three-level inverters. The operation modes and output of the proposed topology are described and analyzed. The structures of the proposed inverter are simulated in MATLAB/Simulink and are compared with some well-known structures. Results show that the proposed structure with both connection models effectively reduces leakage current and improves grid current THD.

Introduction

Solar energy is one of the fastest growing sources of energy. There have been significant growth trends in both developing and using photovoltaic (PV) systems for harnessing green energy from the sun over the last few decades. Unlike fossil fuels, renewable sources of energy such as solar do not pollute the environment during their production and consumption [1].

In PV systems, voltage source inverters installed between the PV cells and the grid are required to connect the outputs to the electrical grid [2, 3]. These inverters can be connected to the grid with or without a transformer.

In recent years, grid-connected transformerless inverters have been widely used because of their higher efficiency and lower cost and weight when compared to systems with a transformer [4,5,6]. However, the problem with the transformerless inverters is the galvanic connection of the solar panels to the ground. This can cause leakage current [7]. Despite the generally acceptable efficiency of new inverters, issues such as grounding cells are still required to be addressed as they are essential in reducing leakage current. In transformerless inverters, the ground of the cells is not isolated from the ground of the grid and thus a parasitic capacitor exists between the cells and the ground. The presence of this capacitor introduces a leakage current in the system. This can flow through a human body and pose serious risks if exceeding a specific value. Also, the leakage current can cause efficiency reduction, harmonic injection, and increased total harmonic distortion (THD) in the grid current [8]. Figure 1 shows an overview of the PV system, including the inverter, output inductor and grid.

Fig. 1
figure 1

Grid-connected photovoltaic system

Many topologies have been proposed in the literature to reduce leakage current. The most prominent topologies are the full-bridge structure with bipolar switching method, H5 structure [9], H6 [10, 11], and HERIC [12] etc. A full-bridge structure with bipolar switching method has a fixed common mode voltage and therefore results in very low leakage current. However, because of the two-level output voltage, large output filters are required and this increases losses. The advantages of a full-bridge inverter with a unipolar switching method include excellent differential characteristic, low inductance current ripple, and higher efficiency. However, the drawbacks are the unsuitable common mode characteristics and very high leakage current [13].

Another approach is to disconnect the AC side from the DC side in the freewheeling modes. The structure proposed in [14] uses a connection between the negative terminal of the solar cell and the neutral point of the grid to reduce the leakage current. The input voltage of this structure is the same as that of the full-bridge structure, though in spite of ease of operation, this structure requires more devices. Also, in this structure, one of the output inductors is taken out and only one inductor is used. For this reason, H5, H6, and HERIC structures were designed based on the full-bridge structure and unipolar modulation. In this type of inverter, the weight and cost of the filters are higher because the cores of the filter inductors must be separated.

Many structures have been developed based on these topologies. For instance, a group of inverters based on the HERIC topology are designed by connecting the middle point of the two capacitors on the input side to the inverter output. This allows them to keep the common mode voltage constant in the freewheeling mode that further reduces leakage current [15,16,17,18]. In [19], a structure with six switches and two diodes is proposed, in which two additional switches are placed between the legs of the full-bridge structure. The inverter output is a short circuit in the freewheeling mode which prevents large fluctuations in the common mode voltage resulting in reduced leakage current. In another study, a HERIC-based cascade structure is introduced in [20] with a 9-level inverter connecting several PV cells. This topology, in addition to being multilevel, is able to reduce leakage current by separating the grid from PV cells in freewheeling mode. However, the large numbers of switches used in this structure increase the costs. Also, the additional switches in the current path during operation increase the conduction losses. In [21], a 5-level inverter is proposed consisting of six switches, two capacitors, and one diode. Only one inductor is used in the output of this inverter while its switching is controlled using Space Vector (SV) modulation. Furthermore, a transformerless five-level inverter is designed in [22] with a grid-tied single-phase PV system to reduce leakage current. The neutral of the grid links to a common node in which the negative and positive terminals of the DC-link are connected via parasitic capacitors to eliminate the leakage current. In this structure, eight switches and six diodes are used. This increases losses, while it also requires a high DC voltage level at the input. Another new structure of a single-phase transformerless grid connected multilevel inverter is presented in [23] based on a switched-capacitor structure. In this structure, the series–parallel switching conversion of the integrated switched-capacitor module is employed in a packed unit. In [24] a new topology of the switched-capacitor multilevel inverter (SCMLI) is proposed for PV systems, one which can eliminate the leakage current. Nevertheless, this structure uses more capacitors than similar structures and is less efficient than many other competing structures. The transformerless PV inverter proposed in [25] uses a cascaded 5-level H-bridge (CHB), which can also be developed into higher levels. However, leakage current circulation between PV panels in each 5-level block is a disadvantage. Finally, a single-phase three-level split-inductor neutral point clamped inverter is developed in [26] for transformerless PV application. However, the inverter also requires a high DC voltage at the input.

This paper presents a high-efficiency 5-level inverter with two structures capable of reducing leakage current. These structures reduce common-mode voltage oscillation and leakage current by connecting the inverter outputs to the midpoint of the DC bus in the freewheeling mode. In addition, the structures are designed so that the inverter output voltage is five-level leading to improved quality in the output current and reduced total harmonic distortion in the inverter output. The performance of the proposed topology is evaluated through comparisons with the HERIC topology [15,16,17,18] and the MOSFET neutral-point-clamped (M-NPC) structure presented in [16]. The study shows the advantages of the proposed inverter in terms of common mode voltage stabilization, leakage current reduction, multilevel output in the inverter, and improved THD, as well as a higher efficiency than other topologies proposed in the literature.

After reviewing the literature extensively in Sect. 1, the concept of leakage current in a HERIC inverter is described in Sect. 2. The proposed topology is presented and described with two connection models in Sect. 3. Section 4 presents the simulation results, and Sect. 5 concludes the paper.

Leakage current in inverters

In transformerless inverters, leakage current flows through the parasitic capacitor (between the ground and the PV panel (CPV)), the output inductors (L1, L2), and the ground impedance (ZG) as shown in Fig. 2. The detailed model of the corresponding common-mode noise is shown in Fig. 2a, while the simplified model is shown in Fig. 2b irrespective of ZG. The value of the parasitic capacitor depends on many factors such as the surface of the solar array, weather conditions, the distance of the plate from the ground, humidity, and dust [27], and is often considered to be between 50 and 150 nF/kW [8]. A full-bridge inverter has a relatively high leakage current with unipolar switching. Therefore, the AC separation method is recommended to avoid increasing the common mode voltage by creating a freewheeling path between AC and DC. Here, freewheeling is when the inverter output is short circuited. Figure 3 shows one of the most common AC separation structures, namely, the HERIC inverter. This topology is usually used to test leakage current behavior.

Fig. 2
figure 2

Common-mode model: a detailed, b simplified

Fig. 3
figure 3

The HERIC topology [12]

According to the definitions in [28], the equivalent common-mode voltage VECM, differential and common mode voltages as well as leakage currents are calculated as:

$${V_{ECM} = V_{CM} + \frac{V_{DM}}{2}\frac{L_{1} - L_{2}}{{L_{1} + L_{2}}}}$$
(1)
$$V_{CM} = \frac{V_{AN} + V_{BN}}{2}$$
(2)
$$V_{DM} = V_{AN} - V_{BN}$$
(3)
$$I_{Leakage} = C_{PV}\frac{dV_{CM}}{{dt}}$$
(4)

where VAN and VBN are the respective potential differences between points A and B relative to the negative terminal of the PV array (point N in Fig. 3). If the values of L1 and L2 are equal, the second part of (1) is eliminated.

As noted from (4), the leakage current depends on the changes in the common mode voltage. In order to control the common mode voltage in the freewheeling mode in the HERIC inverter, two switches (S5 and S6) are placed on the AC side. This is achieved by turning on S5 and the diode parallel to S6 in the positive half cycle, and by turning on S6 and the diode parallel to S5 in the negative half cycle. The other switches are OFF in the freewheeling mode.

In the present study, in addition to the HERIC structure, other proposed structures [16, 23, 25] are considered for comparison. The structure of the MOSFET neutral-point-clamped (M-NPC) inverter [16] is shown in Fig. 4a. This consists of seven switches and four diodes. It also has two operations in freewheeling mode. In the positive freewheeling cycle, D1, D2, S2, and S5 are ON, while D1, D3, D4, and S7 are ON in the negative freewheeling cycle. This structure is not symmetrical in the positive and negative cycles of the conduction modes since in the positive cycle, S1, S2, S5, and S6 are ON, whereas in the negative cycle only S3 and S4 are ON.

Fig. 4
figure 4

Some other topologies: a the structure of [16], b the structure of [23], c the structure of [25]

The structure of [23] is shown in Fig. 4b, which consists of six switches, two diodes and capacitors. It has six operation modes that generate a five-level output voltage. The structure of [25] provides a multilevel cascaded H-bridge inverter, which can also be generalized to higher levels. Its five-level structure consisting of eight switches is shown in Fig. 4c.

The proposed topology

Here, a new five-level topology which contains 11 switches is proposed. This has the ability to reduce leakage current. This topology is presented in two structures. The main difference between them is the way the inverters are connected to the PV panels. The different connections provide choices in connecting the inverter to the solar panels based on the existing panels, with each connection option offering unique features. In the first structure, the THD of the output current is lower than the second, while the second structure has lower leakage current of each panel (not the grid leakage current) than the first structure. This increases the safety of using the panels.

The topology with the first structure

The first structure is illustrated in Fig. 5. The voltage level of PV1 is twice that of PV2 (VPV1 = 2VPV2). Using capacitors parallel to the panels (Cdc), a voltage division is performed and different voltage levels relative to point N at the input side are obtained. Among different PWM methods, SPWM is mostly used for multilevel inverters, because of simple implementation with good performance. In this paper, a type of level-shifted carrier PWM (LSC-PWM) method is selected which includes two high frequency carriers that have the same phase, amplitude and frequency.

Fig. 5
figure 5

The first structure of the proposed topology

According to this method, the amplitude of the carriers is 1/(Number of carriers), which in this paper is equal to 0.5 with 2 carriers. The switching of this method is based on the comparison of two high frequency triangular waves with a grid frequency modulation wave as shown in Figs. 6 and 7. The frequency of the carrier waves is 16 kHz.

Fig. 6
figure 6

Synthesizing the gate commands based on the proposed switching algorithm

Fig. 7
figure 7

Switching pattern

The control rules are defined as follows:

$${\text{If }}\left( {V_{control} } \right) > V_{tri1} \;{\text{then S1}},\;{\text{S4 are ON}}$$
(5)
$${\text{If }}\left( { - V_{control} } \right) > V_{tri1} \;{\text{then S2}},\;{\text{S3 are ON}}$$
(6)
$${\text{If }}\left( {\left| {V_{control} } \right|} \right) < V_{tri1} \;{\text{then S5}},\;{\text{S6,}}\;{\text{S7 are ON}}$$
(7)
$${\text{If }}\left( {\left| {V_{control} } \right|} \right) > V_{tri2} \;{\text{then S8}},\;{\text{S11 are ON}}$$
(8)
$${\text{If }}\left( {\left| {V_{control} } \right|} \right) < V_{tri2} \;{\text{then S9}},\;{\text{S10 are ON}}$$
(9)

The proposed inverter is comprised of five operation modes, two of which are in the positive cycle (Modes 1 and 2), two are in the negative cycle (Modes 3 and 4), and one is in the freewheeling cycle (Mode 5). In the positive or negative cycle, four switches are ON, while in the freewheeling mode, three switches are ON. The circuit diagram with switch status demonstrating different operational modes is shown in Fig. 8.

Fig. 8
figure 8

Circuit diagram with switch status demonstration for the first structure of the proposed topology in different operation modes: a Mode 1, b Mode 2, c Mode 3, d Mode 4, and e Mode 5

Mode 1: S1, S4, S9, and S10 are ON while the other switches are OFF. In this case, the positive and negative terminals of PV2 are connected to points A and B, respectively. Figure 8a shows the circuit diagram with the corresponding switch status. Differential (output voltage) and common mode voltages are calculated as:

$$V_{AN} = \frac{3}{4}V_{PV1},\quad V_{BN} = \frac{1}{4}V_{PV1}$$
(10)
$$V_{AB} = V_{AN} - V_{BN} = \frac{1}{2}V_{PV1}$$
(11)
$$V_{CM} = \frac{V_{AN} + V_{BN}}{2} = \frac{1}{2}V_{PV1}$$
(12)

Mode 2: S1, S4, S8, and S11 are ON while the other switches are OFF. In this case, the positive and negative terminals of PV1 are connected to points A and B, respectively (shown in Fig. 8b). Differential (output voltage) and common mode voltages are calculated as:

$$V_{AN} = V_{PV1},\quad V_{BN} = 0$$
(13)
$$V_{AB} = V_{AN} - V_{BN} = V_{PV1}$$
(14)
$$V_{CM} = \frac{V_{AN} + V_{BN}}{2} = \frac{1}{2}V_{PV1}$$
(15)

Mode 3: S2, S3, S9, and S10 are ON while the other switches are OFF. In this mode, the positive and negative terminals of PV2 are connected to points B and A, respectively (shown in Fig. 8c), and the voltages are calculated as:

$$V_{AN} = \frac{1}{4}V_{PV1},\quad V_{BN} = \frac{3}{4}V_{PV1}$$
(16)
$$V_{AB} = V_{AN} - V_{BN} = - \frac{1}{2}V_{PV1}$$
(17)
$$V_{CM} = \frac{V_{AN} + V_{BN}}{2} = \frac{1}{2}V_{PV1}$$
(18)

Mode 4: S2, S3, S8, and S11 are ON while the other switches are OFF. In this mode, the positive and negative terminals of PV1 are connected to points B and A, respectively (as shown in Fig. 8d), and the voltage are defined as:

$$V_{AN} = 0,\quad V_{BN} = V_{PV1}$$
(19)
$$V_{AB} = V_{AN} - V_{BN} = - V_{PV1}$$
(20)
$$V_{CM} = \frac{V_{AN} + V_{BN}}{2} = \frac{1}{2}V_{PV1}$$
(21)

Mode 5: This mode is the freewheeling cycle, so S5, S6, and S7 are ON, while the midpoint of the PV panels is connected to both points A and B (shown in Fig. 8e). In this case, the voltages are determined as:

$$V_{AN} = V_{BN} = \frac{1}{2}V_{PV1} = V_{PV2}$$
(22)
$$V_{AB} = 0$$
(23)
$$V_{CM} = \frac{V_{AN} + V_{BN}}{2} = \frac{1}{2}V_{PV1}$$
(24)

The voltages in points A and B relative to the reference point (N), and the voltages in the common and differential modes in each of the operation modes are given in Table 1. As observed in all the equations above, the common mode voltages in all the operating modes are constant and equal to VPV1/2. In this structure, the leakage current is reduced by stabilizing the common mode voltage in all modes to VPV1/2. There are five levels of output voltage, including − VPV1, − \(\frac{1}{2}\) VPV1, 0, + \(\frac{1}{2}\) VPV1, + VPV1, which are more than other structures such as HERIC.

Table 1 Differential (output) and common mode voltage values in different operation modes for the first structure

The second structure with a different connection in the DC-Link

In the first structure, two PV panels are used on the input side. In addition to the aforementioned configuration, the connections can be designed based on some other methods. The second structure uses four PV panels with equal voltage level. By series connection of these panels, different levels of voltage can be achieved, as shown in Fig. 9.

Fig. 9
figure 9

The second structure of the proposed topology

The switching pattern of this structure is the same as the previous structure (shown in Figs. 6 and 7). Also, this structure has five operation modes similar to the previous one. The circuit diagram with switch status for this topology in different operation modes is presented in Fig. 10, while VAN, VBN, differential voltage, and common mode voltage are summarized in Table 2. From Table 2, the common mode voltages in all the operating modes are constant and equal to 2VPV. Also, the output voltages (differential) in different operational modes have five levels: − 4VPV, − 2VPV, 0, + 2VPV, and + 4VPV.

Fig. 10
figure 10

Circuit diagram with switch status demonstration for the second structure of the proposed topology in different operation modes; a Mode 1, b Mode 2, c Mode 3, d Mode 4, e Mode 5

Table 2 Differential (output) and common mode voltage values in different operation modes for the first structure

Results and discussions

To evaluate the performance of the proposed topology, simulations are performed in MATLAB/Simulink. Data is obtained for the proposed topology (with two different structures), the HERIC topology, the M-NPC topology in [16], the topology in [23] and the CHB topology in [25]. The simulation results from MATLAB/Simulink are further validated by PSIM software with similar results obtained. In the simulations, for HERIC and M-NPC, a solar panel is considered with a voltage level of 400 V. For studies of the topologies in [23] and [25], one and two solar panels are considered, respectively, with a voltage level of 200 V. For the first structure of the proposed topology, the voltage levels of PV1 and PV2 are 400 V and 200 V, respectively, while the voltage level of each panel in the second structure of the proposed topology is 100 V. The grid voltage and frequency in all cases are 220 V and 50 Hz, respectively. The output filter inductors are 2 mH, and Cdc is 0.47 mF. The amount of radiation and temperature for these simulations are 1000 W/m2 and 25 ℃, respectively, while the value of parasitic capacitors (CPV) is 100 nF/kW. As several PV panels with different power are used in the proposed topology, the value of the leakage capacitance for each cell is proportional to the cell power (according to the ratio of 100 nF/kW). The simulations are carried out at 2 kW with unit power factor and the switching frequency is 16 kHz. The values of the simulation parameters are given in Table 3. In the simulations, the transient state is not considered and only the steady state of the systems is presented.

Table 3 Values of the simulation parameters

From the simulation, the behaviors of the two proposed structures are similar. Figure 11 shows the voltage waveforms of the two structures. As can be seen, the voltages in both structures are the same, while the main differences between the two proposed structures are the leakage current and total harmonic distortion, as previously discussed. Thus the first structure is used to compare the proposed topology with conventional topologies.

Fig. 11
figure 11

VAN, VBN, VDM and VCM in the proposed topology; a the first structure, b the second structure

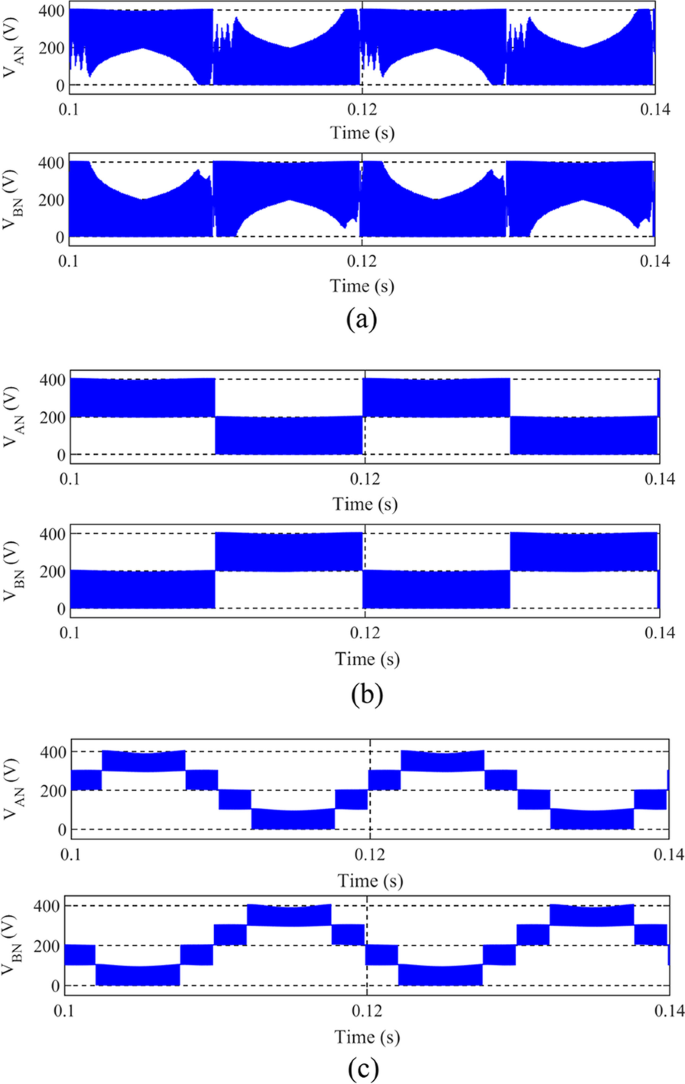

Figure 12 shows VAN and VBN in HERIC, M-NPC, and the proposed topology, where the five-level voltage in the proposed topology is evident. Figure 13 demonstrates the output voltage and the common mode voltage of the inverter in each topology, demonstrating that the common voltage variations in M-NPC and the proposed topology are much lower than that of the HERIC.

Fig. 12
figure 12

VAN and VBN in the studied topology; a HERIC, b M-NPC, c the proposed topology

Fig. 13
figure 13

VDM and VCM in the studied topologies; a HERIC, b M-NPC, c the proposed topology

Figure 14 shows the grid and leakage currents in each topology. Unlike HERIC, in the proposed topology several PV panels are used at the input side, and therefore, the leakage current is divided between the PV panels. Accordingly, for a more accurate comparison, grid leakage currents in different topologies are compared. As seen from Fig. 14, M-NPC and the proposed topology perform better at reducing and improving leakage current than HERIC. The RMS of the leakage current is 34.8 mA in HERIC compared with 14.73 mA and 13.82 mA for M-NPC and the proposed topology, respectively.

Fig. 14
figure 14

igrid and ileakage in the studied topologies; a HERIC, b M-NPC, c the proposed topology

For a better comparison of M-NPC with the proposed topology, the leakage current waveforms are shown in Fig. 15 with magnification. As it clearly illustrates, the leakage current in the proposed topology is better than that of M-NPC.

Fig. 15
figure 15

The magnified leakage current; a M-NPC, b the proposed topology

By using FFT analysis, THD is obtained for the output current of each structure. From this, THD values for HERIC, M-NPC, and the proposed structure with the first and second connections are 8.6%, 8.85%, 3.64% and 4.48%, respectively.

Figure 16 shows the variations in the efficiency of HERIC, inverters in [16] and [23], and the proposed structure for different loads. The overall performance of the topologies under investigation is presented in Table 4.

Fig. 16
figure 16

Efficiency changes in terms of different loads

Table 4 Comparison of the performance of the topologies under investigation

As mentioned earlier, the parasitic capacitor (CPV) capacitance value is often between 50 and 150 nF/kW. In the main simulations, 100 nF/kW is considered. To further investigate the effect of the capacitance value on the leakage current, simulations with values of 50 and 150 nF/kW are performed on the proposed topology and the results are given in Table 5. These results show that upon increasing the parasitic capacitance, leakage current increases.

Table 5 Leakage current for different capacitors in the proposed topology

We should mention that the findings presented in Table 4 are obtained at 1000 W/m2 and 25 ℃. In addition to these values, variations in the radiation and temperature and their effects on leakage current and THD are investigated in each topology and the results are illustrated in Tables 6 and 7. In Table 6, it can be seen that variations in the temperature and radiation change the leakage current in HERIC and M-NPC topologies. However, the leakage current in the proposed topology is not dependent on the environmental changes and has a desirable low value under different environmental conditions. Also, under varying temperatures and radiations as shown in Table 7, THD values of the previous two topologies are very high and undesirable while it is favorably low and acceptable in the proposed structure.

Table 6 The impact of radiation and temperature changes on the leakage current (mA)
Table 7 The impact of radiation and temperature changes on the THD (%)

Conclusion

In this paper, a new inverter has been presented to reduce leakage current. HERIC and M-NPC inverters and their effects on reducing leakage current are discussed and compared with the proposed topology. In addition to reducing leakage current, the output voltage of the proposed topology has five levels. This is more efficient than HERIC in reducing the output current THD. Although the proposed topology is slightly complex in terms of structure and switching, the most notable advantages of the proposed inverter are:

  • Common mode voltage stabilization and leakage current reduction

  • Multilevel output with improved THD

  • Higher efficiency than the other competing topologies

Availability of data and materials

All data used or analyzed during this study are included in the published article.
