A robust composite wide area control of a DFIG wind energy system for damping inter-area oscillations


This paper presents a novel composite wide area control of a DFIG wind energy system which combines the Robust Exact Differentiator (RED) and Discontinuous Integral (DI) control to damp out inter-area oscillations. RED generates the real-time differentiation of a relative speed signal in a noisy environment while DI control, an extension to a twisting algorithm and PID control, develops a continuous control signal and hence reduces chattering. The proposed control is robust to disturbances and can enhance the overall stability of the system. The proposed composite sliding mode control is evaluated using a modified benchmark two-area power system model with wind energy integration. Simulation results under various operating scenarios show the efficacy of the proposed approach.

1 Introduction

Increases in energy demand and environmental awareness, government clean energy policies, increased inflow of funds and reduced cost have resulted in huge renewable energy development and generation [1]. Among the different renewable power generation methods, wind energy dominates because of its mature technology and the abundant wind resources in many nations. According to Navigant Research, 51.3 GW capacity of wind energy was installed in 2018, reflecting the interests among producers and governments for cheap and clean renewable energy generation. Doubly fed induction generators (DFIGs) are one of the main wind-energy conversion systems (WECS) [2, 3]. They are extensively used owing to features like reduced converter rating, two-degree freedom in controlling active and reactive power and high conversion efficiency. A DFIG wind energy system with conventional vector control regulates active and reactive power independently, while its active power reference is computed based on the maximum power point tracking, which in turn depends on the wind speed [4, 5]. As the performance of a DFIG system largely depends on the control, early research was mainly focused on the optimal DFIG control by tuning the controller parameters [6, 7]. Emphasis was then gradually moved towards application of nonlinear control techniques [8,9,10,11].

Transmission interconnections are necessary for reliable and efficient operation of the power system. Integration of renewable energy with the grid reduces the inertia of the system and may adversely affect system stability [12]. Conventional power system stabilizers are deployed at generating stations with synchronous generators to suppress power oscillations. However, the performance of these stabilizers is limited to local modes, while FACTS controllers like SVC, STATCOM, and UPFC have been used to mitigate inter-area oscillations [13,14,15]. The installation of PMUs at various nodes in the power system enables continuous monitoring of inter-area oscillations. The use of a PSS-based supplementary damping controller in a DFIG system to reduce inter-area oscillations is implemented in [16]. However, preliminary research was focused on developing supplementary control using active power, whereas it has been observed that reactive power regulation can be more effective [17]. Thus, suppression of inter-area oscillations could be further enhanced by regulating both active power and reactive power output of the DFIG system [18]. Proportional-resonant controller-based power oscillation damping is proposed in [19], while most of the research on damping of inter-area oscillations is based on a lead-lag compensator [20,21,22]. However, the performance of the controller cannot be assured for large disturbances in the system as the design is based on a linearized model of the power system around an operating point.

Nonlinear control methods like input-output linearization, adaptive dynamic programming etc. have been developed [23, 24]. As power system networks are highly distributed and can exposed to many types of disturbance, there is a need to develop robust controllers. Additional damping control based on disturbance rejection is proposed in [25], and a wide-area control design based on line potential energy and an extended state observer is proposed in [26]. However, such controllers encounter a key challenge in guaranteeing finite time output tracking. Sliding mode control is a robust control mechanism that can ensure finite time output tracking, so a second order sliding mode based on twisting law is proposed in [27, 28]. However, although it is highly robust, the output of the differentiator is sensitive to measurement noise.

The objective of this paper is to design a robust composite wide area controller (WAC) for a DFIG wind energy system, combined with RED and DI controls. DI control is a recently proposed novel control based on the combination of the super twisting algorithm (STA) and PID control. To compensate for the non-vanishing disturbances, a discontinuous integral term is added to the STA control output and a two-stage differentiator is developed to obtain the real-time differentiation of the relative speed signal. This is robust to measurement noise and uncertainties [29, 30]. Features viz. finite-time convergence, robustness to disturbance and reduced chattering are achieved by applying DI control [31, 32]. A supplementary WAC signal is thus generated to regulate the reactive power of a DFIG system through its RSC.

The main contributions of the paper are as follows:

  1. i.

    A composite wide area control combined with a robust differentiator with discontinuous integral control is proposed to suppress inter-area oscillations using a DFIG based wind energy system.

  2. ii.

    The use of RED is to obtain a real-time differentiation of the relative speed immune to noise in the PMU measurements. A DI controller generates a continuous control signal and thus reduces the chattering.

  3. iii.

    The proposed strategy is simple to implement and is robust to disturbances.

The rest of the paper is organized as follows. Section 2 discusses the dynamics of the two-area power system model with a DFIG in one area, while Section 3 describes the design of the proposed composite wide area control. Section 4 analyzes the simulation results with the proposed controller and concluding remarks are given in Section 5.

2 System configuration and dynamic model of a DFIG system

2.1 Modified two-area power system with wind energy integration

The system under study is a modified two-area benchmark model integrated with a DFIG-based wind energy system as shown in Fig. 1. Area-1 consists of a hydraulic generator while area-2 has a synchronous generator. These two areas are connected by a transmission line while a DFIG-based wind power plant is connected to Area-1. A resistive load is connected to Area-2 and power flows from Area-1 to Area-2.

Fig. 1
figure 1

Modified two-area power system model with wind energy integration

The dynamics of the two-area power system model with wind energy integration [27] are given as:

$$ {\dot{\delta}}_{12}={\omega}_{12} $$
$$ {\displaystyle \begin{array}{l}{\dot{\omega}}_{12}=\frac{1}{H_1}\left({P}_1-{P}_{L1}\right)-\frac{1}{H_2}\left({P}_2-{P}_{L2}\right)+\\ {}\left(\frac{1}{H_1}+\frac{1}{H_2}\right)\frac{\sin \delta }{\cos \delta}\left(\frac{V_2^2}{X}-\Delta {Q}_w-{Q}_w-{Q}_{s0}\right)\end{array}} $$
$$ \Delta {\dot{Q}}_w=\frac{u-\Delta {Q}_w}{T} $$

2.2 Dynamic model of DFIG

A DFIG wind energy system consists of a wind turbine coupled to the DFIG shaft. The output of the DFIG system is regulated by a back-to-back converter, in which the GSC regulates the DC link voltage while the RSC regulates both the active and reactive power output. To suppress inter-area oscillations, a supplementary control signal is generated from the proposed WAC unit to regulate the reactive power output of the DFIG system as illustrated in Fig. 2. As the main objective is to suppress the oscillations, this section focuses on the dynamic model of the DFIG machine and RSC control.

Fig. 2
figure 2

DFIG wind energy system with WAC

The dynamic model of a DFIG generator is represented as:

$$ \frac{d{E}_d^{\prime }}{dt}={s}_r{\omega}_s{E}_q^{\prime }-{\omega}_s\frac{L_m}{L_{rr}}{u}_{qr}-\frac{1}{T_0^{\prime }}\left[{E}_d^{\prime }+\left({X}_s-{X}_s^{\prime}\right){i}_{qs}\right] $$
$$ \frac{d{E}_q^{\prime }}{dt}=-{s}_r{\omega}_s{E}_d^{\prime }+{\omega}_s\frac{L_m}{L_{rr}}{u}_{dr}-\frac{1}{T_0^{\prime }}\left[{E}_q^{\prime }-\left({X}_s-{X}_s^{\prime}\right){i}_{ds}\right] $$
$$ \frac{di_{ds}}{dt}=\frac{\omega_s}{X_s^{\prime }}\left\{\begin{array}{l}{u}_{ds}-\left[{R}_s+\frac{1}{\omega_s{T}_0^{\prime }}\left({X}_s-{X}_s^{\prime}\right)\right]{i}_{ds}-\\ {}\left(1-{s}_r\right){E}_d^{\prime }-\frac{L_m}{L_{rr}}{u}_{dr}\end{array}\right\}+\frac{1}{X_s^{\prime }{T}_0^{\prime }}{E}_q^{\prime }+{\omega}_s{i}_{qs} $$
$$ \frac{di_{qs}}{dt}=\frac{\omega_s}{X_s^{\prime }}\left\{\begin{array}{l}{u}_{qs}-\left[{R}_s+\frac{1}{\omega_s{T}_0^{\prime }}\left({X}_s-{X}_s^{\prime}\right)\right]{i}_{qs}-\\ {}\left(1-{s}_r\right){E}_q^{\prime }-\frac{L_m}{L_{rr}}{u}_{qr}\end{array}\right\}-\frac{1}{X_s^{\prime }{T}_0^{\prime }}{E}_d^{\prime }-{\omega}_s{i}_{ds} $$

The outer and inner loop controls are based on PI controllers as illustrated in Fig. 3. The active and reactive power deviations are defined as:

$$ {e}_p={P}_{ref}-{P}_g $$
$$ {e}_w={Q}_{ref}-{Q}_w-\Delta {Q}_w $$
Fig. 3
figure 3

Block diagram of the RSC controller

These errors are fed to the PI controllers to generate the reference d-axis and q-axis current as:

$$ {i}_{dr\_ ref}={K}_{p1}{e}_p+{K}_{i1}\int {e}_p dt $$
$$ {i}_{qr\_ ref}={K}_{p3}{e}_Q+{K}_{i3}\int {e}_w dt $$

The current references are compared with actual current to generate current errors as:

$$ {e}_d={i}_{dr}-{i}_{dr\_ ref} $$
$$ {e}_q={i}_{qr}-{i}_{qr\_ ref} $$

The current errors are then fed to the PI controllers to generate the control voltages as:

$$ {u^{\ast}}_{dr}={K}_{p2}{e}_d+{K}_{i1}\int {e}_d dt $$
$$ {u^{\ast}}_{qr}={K}_{p2}{e}_q+{K}_{i2}\int {e}_q dt $$

3 Design of composite wide area damping control (WAC)

The objective is to damp out rotor speed oscillation in finite time with a robust WAC, i.e. \( \underset{t\to {t}_f}{\lim }{\omega}_{12}\to 0 \). To achieve this, a combination of RED and DI controls is proposed.

3.1 DI control

The design of the DI control law is presented in this section. Considering the sliding variable as

$$ \sigma ={\omega}_{12} $$

the second derivative of σ with respect to time is:

$$ {\displaystyle \begin{array}{l}\ddot{\sigma}=-\left(\frac{1}{H_1}+\frac{1}{H_2}\right)\left(\frac{V_2^2}{X}-\Delta {Q}_w-{Q}_w-{Q}_{s0}\right)\frac{\omega_{12}}{\cos^2}\\ {}\kern0.48em -\left(\frac{1}{H_1}+\frac{1}{H_2}\right)\frac{\Delta {Q}_w\sin \delta }{T\cos \delta }+\left(\frac{1}{H_1}+\frac{1}{H_2}\right)\frac{\sin \delta }{T\cos \delta }u\end{array}} $$

Equation (17) can be represented as:

$$ \ddot{\sigma}=f\left({\omega}_{12},\delta, t\right)+g\left(\delta, t\right)u $$


$$ f=-\left(\frac{1}{H_1}+\frac{1}{H_2}\right)\left(\left(\frac{V_2^2}{X}-\Delta {Q}_w-{Q}_w-{Q}_{s0}\right)\frac{\omega_{12}}{\cos^2}+\frac{\Delta {Q}_w\sin \delta }{T\cos \delta}\right) $$
$$ g=\left(\frac{1}{H_1}+\frac{1}{H_2}\right)\frac{\sin \delta }{T\cos \delta } $$

Equation (17) can also be rewritten as:

$$ \ddot{\sigma}=f\left({\omega}_{12},\delta, t\right)+{u}_c $$


$$ {u}_c=g\left(\delta, t\right)u $$

Though sliding mode control is robust when regulating output in the presence of disturbances, it suffers from control chattering. On the other hand, PID is effective in driving the output to the horizon but only in the presence of constant disturbances. In order to drive the states σ and \( \dot{\sigma} \) in finite time in the presence of time-varying disturbances, a robust DI control is proposed which is a combination of a twisting algorithm and PID control [31]. An integral term is added to the regular high order sliding mode control law to compensate for the time varying perturbations which cannot be fully compensated for by feedback discontinuous control.

The control law required to stabilize the system under persistent disturbances is given by:

$$ {u}_c=-{\lambda}_1{\left|\sigma \right|}^{\frac{1}{3}}\operatorname{sgn}\left(\sigma \right)-{\lambda}_2\left|\dot{\sigma}\right|\operatorname{sgn}\left(\dot{\sigma}\right)-{\lambda}_3\int \operatorname{sgn}\left(\sigma +{\lambda}_4{\dot{\sigma}}^{\frac{3}{2}}\right) d\tau $$

From (20) and (21), there is:

$$ u=\frac{1}{g^{-1}\left(\delta, t\right)}\left(\begin{array}{l}-{\lambda}_1{\left|\sigma \right|}^{\frac{1}{3}}\operatorname{sgn}\left(\sigma \right)-{\lambda}_2\left|\dot{\sigma}\right|\operatorname{sgn}\left(\dot{\sigma}\right)-\\ {}{\lambda}_3\int \operatorname{sgn}\left(\sigma +{\lambda}_4{\dot{\sigma}}^{\frac{3}{2}}\right) d\tau \end{array}\right) $$

The main features of the proposed robust control law are:

  1. i.

    It stabilizes the origin in finite time. In addition, adding a discontinuous integral term stabilizes the system even under non-vanishing disturbances.

  2. ii.

    The continuous control signal avoids control chattering.

  3. iii.

    The integral term can be viewed as disturbance estimation.

  4. iv.

    Implementation of the discontinuous integral control requires the derivative of ω12.

3.2 Robust exact differentiator

An ordinary differentiator amplifies measurement noise, and thus noisy PMU measurements degrade the performance of the controller with ordinary differentiator. In addition, initial error and large transients during convergence of the differentiator will degrade the controller performance. Therefore, there is a need for a robust exact differentiator. Considering its advantages such as finite time convergence, robustness to external disturbances and insensitivity to measurement noise, RED is used here to obtain the differentiation of the relative speed signal.

The output of the system in the presence of noise can be written as:

$$ y={\omega}_{12}+v $$

A second order RED is employed to estimate the signal \( \dot{\sigma} \). Given that z1 and z2 are the respective estimates of σ and \( \dot{\sigma} \), and d is the cumulative disturbance of the system estimated with a pseudo-state z3, the dynamics of RED are:

$$ {\dot{z}}_1=-{l}^{\frac{1}{3}}{\lambda}_1{\left|{z}_1-y\right|}^{\frac{2}{3}}\operatorname{sgn}\left({z}_1-y\right)+{z}_2 $$
$$ {\dot{z}}_1=-{l}^{\frac{1}{3}}{\lambda}_1{\left|{z}_1-y\right|}^{\frac{2}{3}}\operatorname{sgn}\left({z}_1-y\right)+{z}_2 $$
$$ {\dot{z}}_3=-l{\lambda}_3\operatorname{sgn}\left({z}_1-y\right) $$

3.3 Composite WAC

The principle of the proposed composite controller is illustrated in Fig. 4. It is a combination of DI control and RED. With the observed states the new control input is:

$$ {u}_c=-{\lambda}_1{\left|{z}_1\right|}^{\frac{1}{3}}\operatorname{sgn}\left({z}_1\right)-{\lambda}_2\left|{z}_2\right|\operatorname{sgn}\left(\dot{\sigma}\right)-{\lambda}_3\int \operatorname{sgn}\left({z}_1+{\lambda}_4{z}_2^{\frac{3}{2}}\right) d\tau $$
Fig. 4
figure 4

Proposed Composite Controller

Defining the estimation errors as e1 = x1 − z1, e2 = x2 − z2, and e3 = x3 − d, the dynamics of the estimation errors can be written as:

$$ {\dot{e}}_1=-{l}^{\frac{1}{3}}{\lambda}_1{\left|{e}_1\right|}^{\frac{2}{3}}\operatorname{sgn}\left({e}_1\right)+{e}_2 $$
$$ {\dot{e}}_2=-{l}^{\frac{2}{3}}{\lambda}_2{\left|{e}_1\right|}^{\frac{1}{3}}\operatorname{sgn}\left({e}_1\right)+{e}_3 $$
$$ {\dot{e}}_3=-l{\lambda}_3\operatorname{sgn}\left({e}_1\right)-\dot{d} $$

From the above analysis, the following can be noted:

  1. i.

    For \( \left|\dot{d}\right|\le \Delta \), the estimation errors under closed loop operation converge to the origin in finite time.

  2. ii.

    Control input compensates for the disturbance affecting system performance.

  3. iii.

    The differentiator and controller can be designed independently.

4 Simulation results and discussion

The proposed composite control is simulated in MATLAB/Simulink. The benchmark system is obtained by modifying the two-area system demon model in MATLAB/ Simulink to include a DFIG wind energy system, while the parameters of the lumped DFIG and controller are given in Tables 1 and 2 respectively in the Appendix. The efficacy of the proposed approach is evaluated under different operating scenarios.

4.1 Noise-free measurements

In this ideal case, the measurements from PMU are assumed to be noise-free. The DI controller generates the required reactive power signal for suppression of the inter-area oscillations. The second state \( \dot{\sigma} \) is obtained using the MATLAB differentiator block. In addition, a three-phase symmetrical fault is applied to the transmission line connecting the two areas. The fault is initiated at 5 s and cleared after 5 ms. This disturbance leads to rotor angle oscillation between the two areas as illustrated in Fig. 5 (a). In the absence of wide area control, the power oscillations are damped after 10s while with the proposed DI control, they are damped within 7.7 s. Reactive power outputs of the DFIG system with and without WAC can be observed from Fig. 5 (b). It can be observed that without WAC, the reactive power is not regulated while DI control regulates the reactive power. This demonstrates the superior performance of DI control in damping oscillations. The Tie-line power deviations with and without WAC are compared in Fig. 5 (c), while Fig. 6 depicts the convergence of σ and \( \dot{\sigma} \) to the horizon.

Fig. 5
figure 5

a Relative rotor speed deviations; b Reactive power; c Tie-line power deviations for a three-phase fault with a fault resistance of 1 Ω

Fig. 6
figure 6

2D plot of σ and \( \dot{\sigma} \)

Figure 7 illustrates the performance of DI control with rotor angle deviations for a three-phase fault with a fault resistance of 0.001 Ω. As can be seen, DI control damps out the rotor angle deviations faster with lower undershoot when compared to lead-lag compensator based traditional controller [17], whose details are given in Appendix. For further analysis, a worst fault scenario is considered where the system is unstable without WAC. The rotor angle deviations in Fig. 8 and terminal voltage in Fig. 9 show the efficacy of the proposed DI controller for the same worst fault scenario.

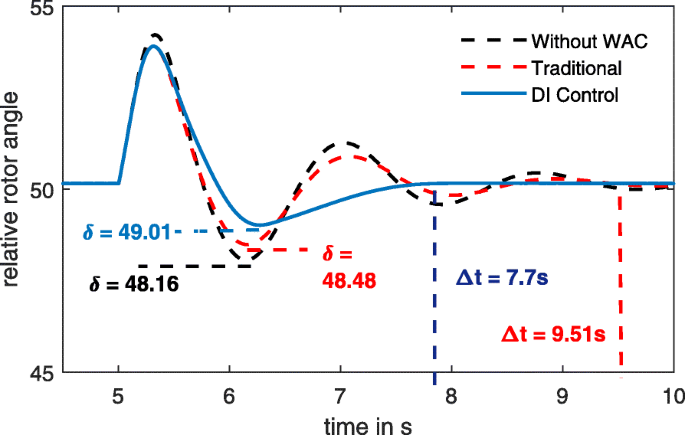

Fig. 7
figure 7

Relative rotor angle deviations for a three-phase fault with a fault resistance of 0.001 Ω

Fig. 8
figure 8

Relative rotor angle deviations in the worst fault scenario

Fig. 9
figure 9

Terminal voltage in the worst fault scenario

In the next case, it is assumed that the load is suddenly increased by 5% at 1 s, and the simulation results are shown in Figs. 10, 11 and 12. In order to evaluate the performance of the DI controller under the worst operating scenario, the synchronous generators are operated without local PSS. Without WAC, the load change leads to sustained rotor speed oscillations as seen in Fig. 10. However, the proposed DI controller effectively suppresses the relative rotor speed deviations and this also results in reduced tie-line power oscillations when compared to the traditional controller as illustrated in Fig. 11. The terminal voltage also oscillates in the absence of the WAC after the load disturbance while the proposed controller suppresses the voltage oscillations as shown in Fig. 12.

Fig. 10
figure 10

Relative rotor angle for load disturbance

Fig. 11
figure 11

Tie-line power deviations for load disturbance

Fig. 12
figure 12

Terminal voltage variations for load disturbance

4.2 PMU measurements with noise

A power system is highly nonlinear and stochastic, and is subjected to various kinds of disturbance. This necessitates the use of RED to differentiate noisy relative speed deviations rather than a conventional differentiator. Realistic noise in the PMU measurements is considered in the first case, in which Gaussian noise with zero mean and covariance of 10− 5 is added to the speed measurements. Figure 13 depicts the significance of RED. As seen, without RED, noise is amplified by the differentiator and this in turn affects the controller performance, while the relative rotor speed and its derivative estimated using RED show significant improvements. Figure 14 depicts the relative rotor angle deviations and it can be concluded that the proposed composite sliding mode shows superior performance even under noisy environment when compared with twisting control.

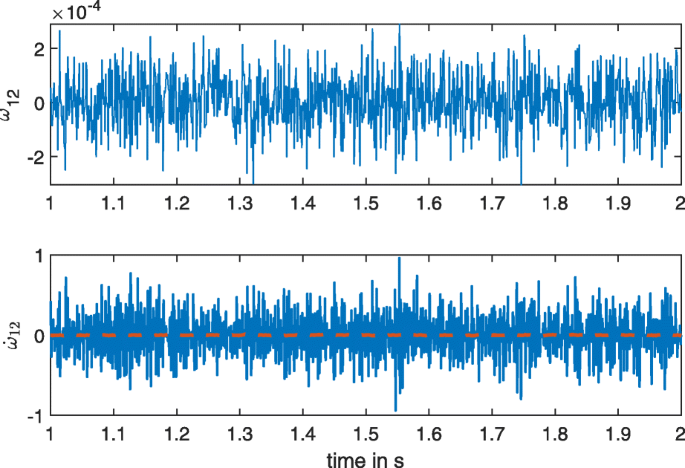

Fig. 13
figure 13

Plots of a σ and b \( \dot{\sigma} \) with and without RED. Red and blue colors represent with RED and ordinary differentiator respectively

Fig. 14
figure 14

Relative rotor speed in a noisy environment

5 Conclusions

A composite WAC has been proposed to suppress inter-area oscillations by controlling the reactive power output of the DFIG system during disturbances. There are three main contributions of the proposed method. First, a robust differentiator is developed to obtain the real-time differentiation of the relative rotor speed signal of the uncertain nonlinear power system. Second, super twisting control is extended by adding an integral control term to form a robust DI controller to stabilize power oscillations even under non-vanishing disturbances. Control chattering is avoided as the control input is a continuous signal. Third, the robust differentiator is combined with a discontinuous integral controller to build a WAC, which is robust to disturbances affecting the stability of the system.

The proposed control is tested on the benchmark two-area power system model with a DFIG wind energy integration. The results for a three-phase fault in the power system have illustrated that the proposed composite control significantly improves the transient stability of the power system even under non-vanishing disturbances. In the event of three-phase faults, relative rotor angle deviations with DI control can be damped earlier than with conventional methods, while RED is very useful for obtaining the real-time differentiation with reduced noise impact. WAC can be designed in coordination with local PSS to further enhance system transient stability.

6 Nomenclature

DI Discontinuous integral

RED Robust Exact Differentiator

WAC Wide area control

RSC Rotor side converter

GSC Grid side converter

v Zero mean measurement noise

δ Generator power angle

ω Generator rotor speed

H Generator inertia

P Mechanical input power

PL Active power demand

V Terminal voltage

Qw Reactive power supplied by the DFIG system

ΔQw Reactive power for damping

Qs0 Reactive power supplied by synchronous generators and shunt capacitorsX Line reactance

\( {E}_{d,q}^{\prime } \) Voltage across transient reactance on the d-axis and q-axis

Lm Mutual inductance

\( {T}_0^{\prime } \) Time constant of the rotor circuit

us Stator terminal voltage

ur Rotor terminal voltage

Rs Stator resistance

Xs Stator reactance

\( {X}_s^{\prime } \) Stator transient reactance

is Stator current

Lss, Lrr Stator and rotor self-inductances

σ Sliding surface

z1 Estimates of σ

z2 Estimates of \( \dot{\sigma} \)

d Cumulative disturbance

λ1, λ2,λ3,λ4 DI controller parameters

Pref Reference active power

Pg DFIG generated power

Qref Reference reactive power

Kp1, Kp2, Kp3, Ki1, Ki2, Ki3 PI controller parameters

ep, ew Active and reactive power errors

ed, eq Current errors

udr, udr Control voltages

idr_ref, iqr_ref Current references
